110 x 30mm Pre-Galvanised Steel Expanded Metal, 11mm Strand
Description


110 x 30mm. 110 x 30mm diamond (LWD x SWD), 11mm strand.

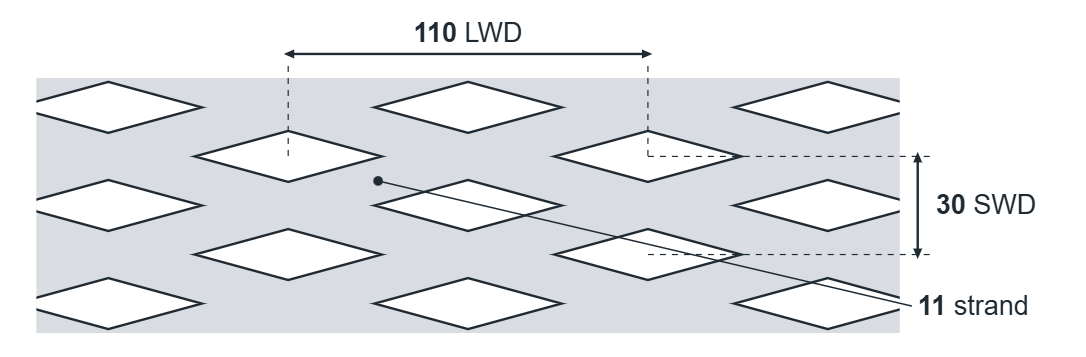

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

Expanded metal, made to order, pre-galvanised, 110 x 30mm. 110 x 30mm
110 x 30mm pre-galvanised steel expanded metal, 11mm strand

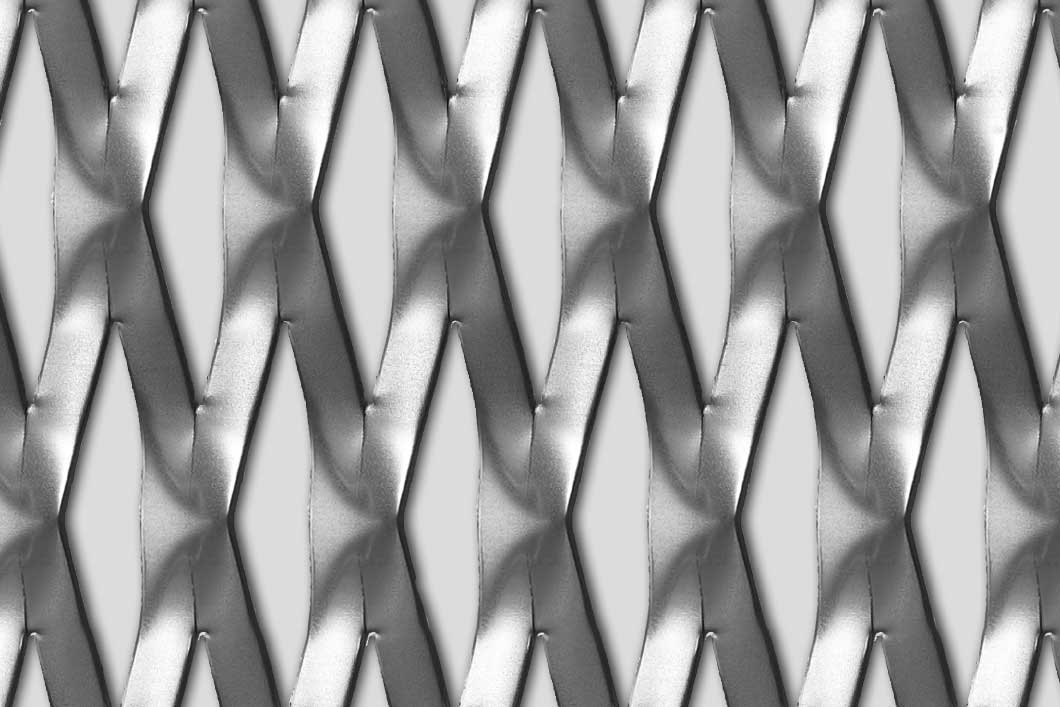

Expanded pre-galvanised steel with a 110 x 30mm diamond and 11mm strands, giving 27% open area. It’s made to order in approximately 5 to 7 days, in 1.5, 2 and 3mm thick.
| ThicknessPre-galvanised, Made to order | Sheet size (mm) |
|---|---|
| Any standard size | |
| 1.5mm | 5 to 7 days |
| 2mm | 5 to 7 days |
| 3mm | 5 to 7 days |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Diamond pattern

Enlarged, not to scale. Dimensions in mm.
About 110 x 30mm
Expanded pre-galvanised steel with a 110 x 30mm diamond and 11mm strands, giving 27% open area. It’s made to order in approximately 5 to 7 days, in 1.5, 2 and 3mm thick.
What do LWD and SWD mean?
LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.
Also comes in
Not quite right? Compare similar sizes
Anything different from 110 x 30mm is marked. See every expanded pre-galvanised steel sheet, or work out a different size
| Mesh | Diamond | Strand | Thickness | Stock |
|---|---|---|---|---|
| 76 x 24 | 76 x 24mm | 11mm | 1.5–3mm | 5 to 7 days |
| 76 x 35 | 76 x 35mm | 11mm | 1.5–3mm | 5 to 7 days |
| 90 x 30 | 90 x 30mm | 15mm | 1.5–3mm | 5 to 7 days |
| 90 x 38 | 90 x 38mm | 18mm | 1.5–3mm | 5 to 7 days |
| YOU’RE VIEWING110 x 30 | 110 x 30mm | 11mm | 1.5–3mm | 5 to 7 days |
| 115 x 48 | 115 x 48mm | 18mm | 1–2mm | 5 to 7 days |
| 115 x 48 | 115 x 48mm | 20mm | 1.5–2mm | 5 to 7 days |
Highlighted where it differs from 110 x 30mm
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
