10mm Hole 316 Stainless Steel Perforated Sheet (R10 T14)
Description


R10 T14. 10mm round hole, 14mm staggered pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

Perforated sheet, stainless 316, r10 t14. Kenton code K062S6
10mm hole 316 stainless steel perforated sheet
R10 T14 is a 10mm round hole perforated sheet in 316 stainless steel, with the holes on a 14mm staggered pitch giving 46% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1 to 2mm.
Also written: R10T14 · 10mm R10 · 10mm hole 14mm pitch · 10mm round hole on 14mm staggered centres
| ThicknessStainless 316, K062S6 | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 4.3 |
| 1.5mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 6.4 |
| 2.0mm | 5 to 7 days | 8.6 | ||
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

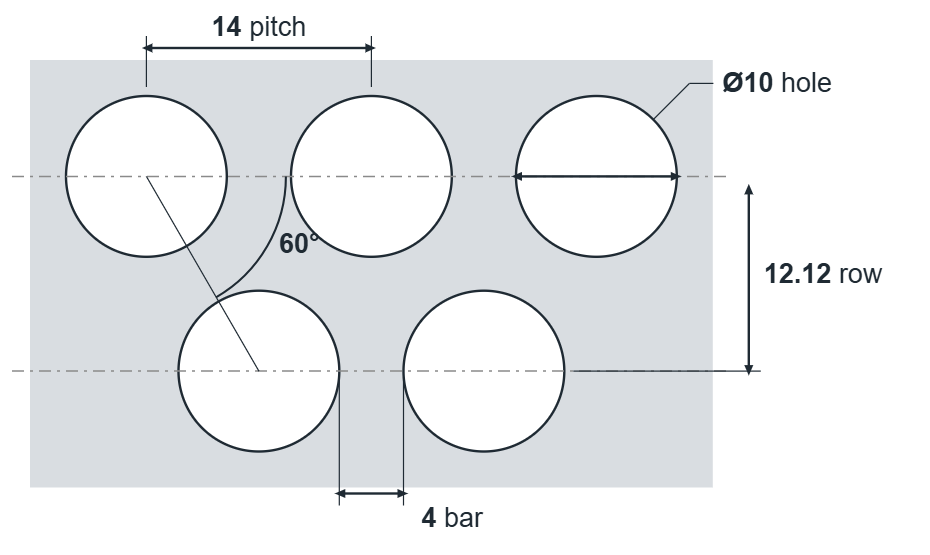

Hole layout

Enlarged, not to scale. Dimensions in mm.
About R10 T14
R10 T14 is a 10mm round hole perforated sheet in 316 stainless steel, with the holes on a 14mm staggered pitch giving 46% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1 to 2mm.
All sizes in the table are made to order, in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.
What does R10 T14 mean?
R10 is a 10mm round hole. T14 means the holes sit on a 14mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R10 T14 is marked. See every 316 stainless steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R10 T12 | 10mm round | 12mm staggered | 63% | 1–2mm | 5 to 7 days |
| R10 T12.7 | 10mm round | 12.7mm staggered | 56% | 1mm | 5 to 7 days |
| R10 T13 | 10mm round | 13mm staggered | 54% | 1–1.5mm | 5 to 7 days |
| R10 T13.5 | 10mm round | 13.5mm staggered | 50% | 1–2mm | 5 to 7 days |
| YOU’RE VIEWINGR10 T14 | 10mm round | 14mm staggered | 46% | 1–2mm | 5 to 7 days |
| R10 T15 | 10mm round | 15mm staggered | 40% | 1–3mm | ✓ In stock |
| R10 U15 | 10mm round | 15mm square | 35% | 1–2mm | 5 to 7 days |
| R10 T18 | 10mm round | 18mm staggered | 28% | 1–1.5mm | 5 to 7 days |
| R12 T16 | 12mm round | 16mm staggered | 51% | 1–2mm | 5 to 7 days |
Highlighted where it differs from R10 T14
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
