10mm Hole 316 Stainless Steel Perforated Sheet (R10 T15)
Description


R10 T15. 10mm round hole, 15mm staggered pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

Perforated sheet, stainless 316, r10 t15. Kenton code K065S6
10mm hole 316 stainless steel perforated sheet
R10 T15 is a 10mm round hole perforated sheet in 316 stainless steel, with the holes on a 15mm staggered pitch giving 40% open area. We keep it in stock, in thicknesses from 1 to 3mm.
Also written: R10T15 · 10mm R10 · 10mm hole 15mm pitch · 10mm round hole on 15mm staggered centres
| ThicknessStainless 316, K065S6 | Sheet size (mm) | Weightkg/m² | |
|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | ||
| 1.0mm | ✓ In stock | 4.8 | |
| 1.5mm | ✓ In stock | ✓ In stock | 7.2 |
| 2.0mm | ✓ In stock | 9.6 | |
| 3.0mm | ✓ In stock | 14.3 | |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

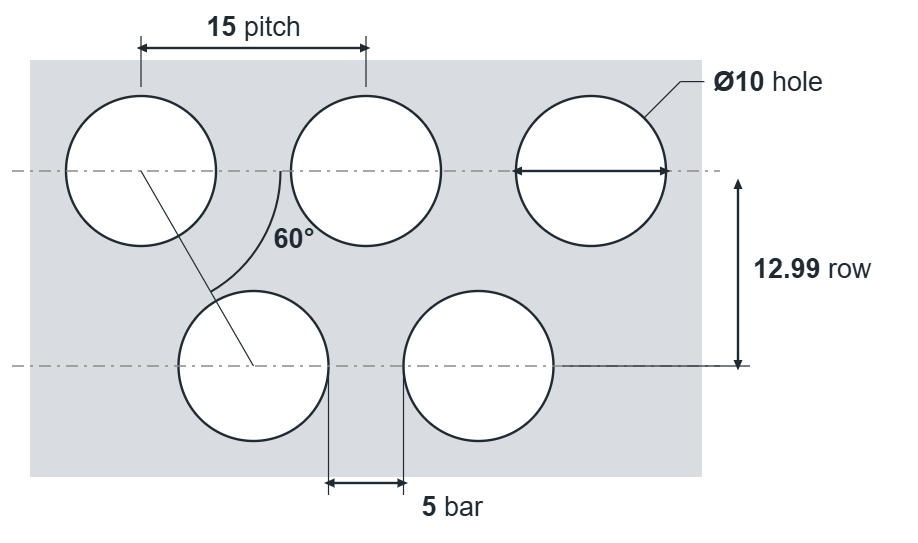

Hole layout

Enlarged, not to scale. Dimensions in mm.
About R10 T15
R10 T15 is a 10mm round hole perforated sheet in 316 stainless steel, with the holes on a 15mm staggered pitch giving 40% open area. We keep it in stock, in thicknesses from 1 to 3mm.
In stock: 1mm, 2mm and 3mm in 2m x 1m sheets; 1.5mm in 2m x 1m and 2.5m x 1.25m. Everything else in the table is made to order in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.
What does R10 T15 mean?
R10 is a 10mm round hole. T15 means the holes sit on a 15mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R10 T15 is marked. See every 316 stainless steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R2 T3.5 | 2mm round | 3.5mm staggered | 30% | 1–1.5mm | ✓ In stock |
| R3 T5 | 3mm round | 5mm staggered | 33% | 0.7–2mm | ✓ In stock |
| R3 T6 | 3mm round | 6mm staggered | 23% | 3mm | ✓ In stock |
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–2mm | ✓ In stock |
| R5 T8 | 5mm round | 8mm staggered | 35% | 1–3mm | ✓ In stock |
| R6 T9 | 6mm round | 9mm staggered | 40% | 1–2mm | ✓ In stock |
| R10 T12.7 | 10mm round | 12.7mm staggered | 56% | 1mm | 5 to 7 days |
| R10 T13.5 | 10mm round | 13.5mm staggered | 50% | 1–2mm | 5 to 7 days |
| YOU’RE VIEWINGR10 T15 | 10mm round | 15mm staggered | 40% | 1–3mm | ✓ In stock |
Highlighted where it differs from R10 T15
