10mm Hole Pre-Galvanised Steel Perforated Sheet (R10 T14)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
10mm hole pre-galvanised steel perforated sheetR10 T14 hole layout: 10mm round holes, 14mm staggered pitch, 4mm bar, 12.12mm row spacing

R10 T14. 10mm round hole, 14mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

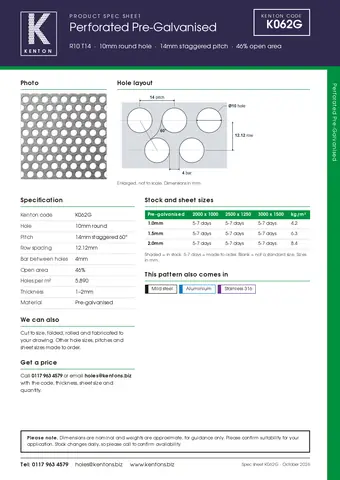

Kenton spec sheet for K062G
R10 T14 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K062G for easy re-ordering.Download spec sheet PDF

Perforated sheet, pre-galvanised, r10 t14. Kenton code K062G

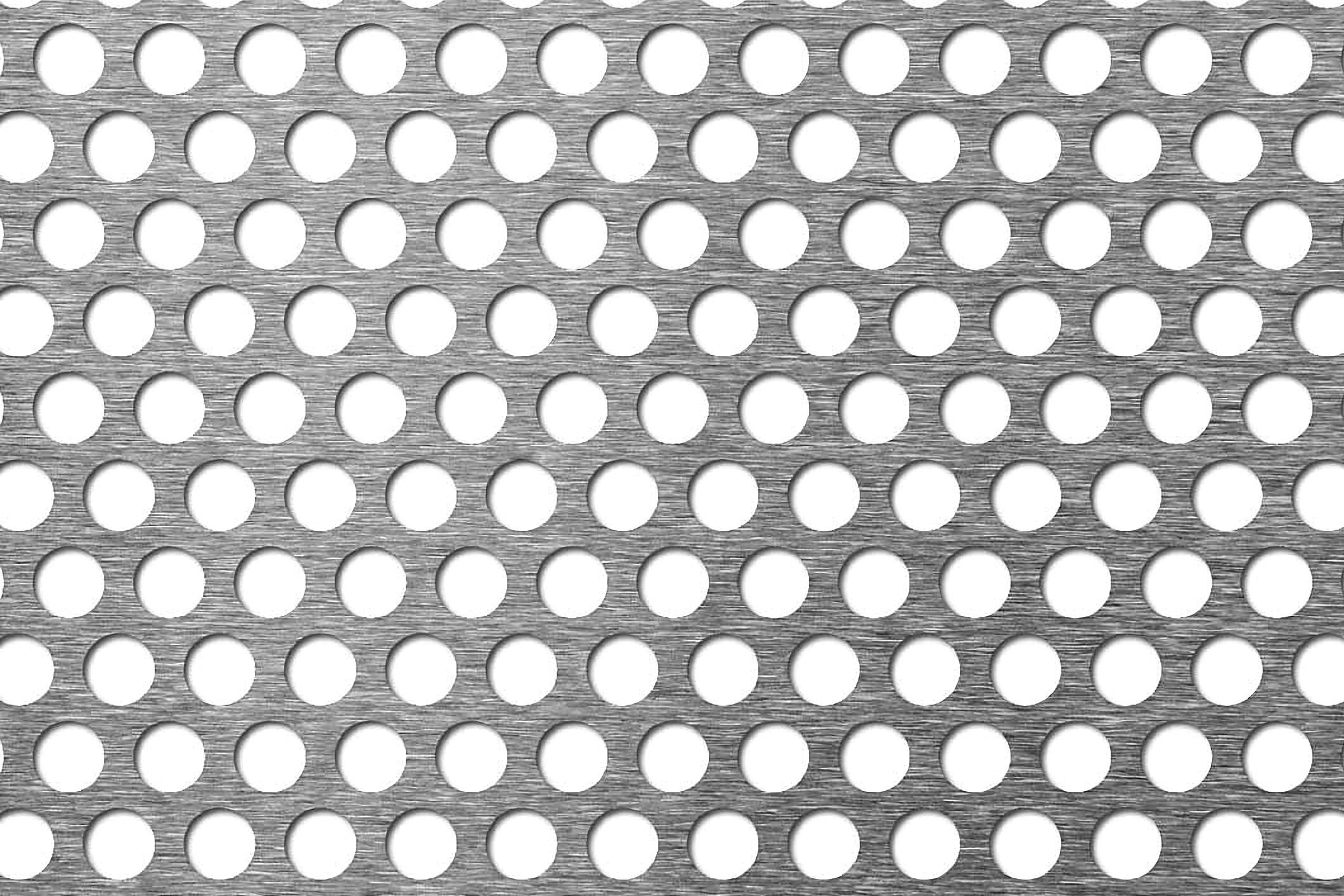

10mm hole pre-galvanised steel perforated sheet

R10 T14 is a 10mm round hole perforated sheet in pre-galvanised steel, with the holes on a 14mm staggered pitch giving 46% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 2mm.

Made to order, usually 5 to 7 days
Product specificationThe measurements of R10 T14
Hole10mm round
Pitch14mm staggered 60°
Row spacing12.12mm
Bar between holes4mm
Open area46%
Holes per m²5,890
Thickness1–2mm
MaterialPre-galvanised

Also written: R10T14 · 10mm R10 · 10mm hole 14mm pitch · 10mm round hole on 14mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessPre-galvanised, K062GSheet size (mm)Weightkg/m²
2000 x 10002500 x 12503000 x 1500
1.0mm5 to 7 days5 to 7 days5 to 7 days4.2
1.5mm5 to 7 days5 to 7 days5 to 7 days6.3
2.0mm5 to 7 days5 to 7 days5 to 7 days8.4

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

R10 T14 hole layout: 10mm round holes, 14mm staggered pitch, 4mm bar, 12.12mm row spacing

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R10 T14

R10 T14 is a 10mm round hole perforated sheet in pre-galvanised steel, with the holes on a 14mm staggered pitch giving 46% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 2mm.

All sizes in the table are made to order, usually in 5 to 7 days.

What does R10 T14 mean?

R10 is a 10mm round hole. T14 means the holes sit on a 14mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumStainless 316

Not quite right? Compare similar patterns

Anything different from R10 T14 is marked. See every pre-galvanised steel pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R8 T108mm round10mm staggered58%0.75mm5 to 7 days
R8 T118mm round11mm staggered48%1–2mm5 to 7 days
R8 T128mm round12mm staggered40%1–3mm5 to 7 days
YOU’RE VIEWINGR10 T1410mm round14mm staggered46%1–2mm5 to 7 days
R10 T1510mm round15mm staggered40%1–3mm✓ In stock
R10 U2110mm round21mm square18%2mm5 to 7 days
R15 T2115mm round21mm staggered46%1–3mm5 to 7 days

Highlighted where it differs from R10 T14
