10mm Hole Mild Steel Perforated Sheet (R10 T16)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz

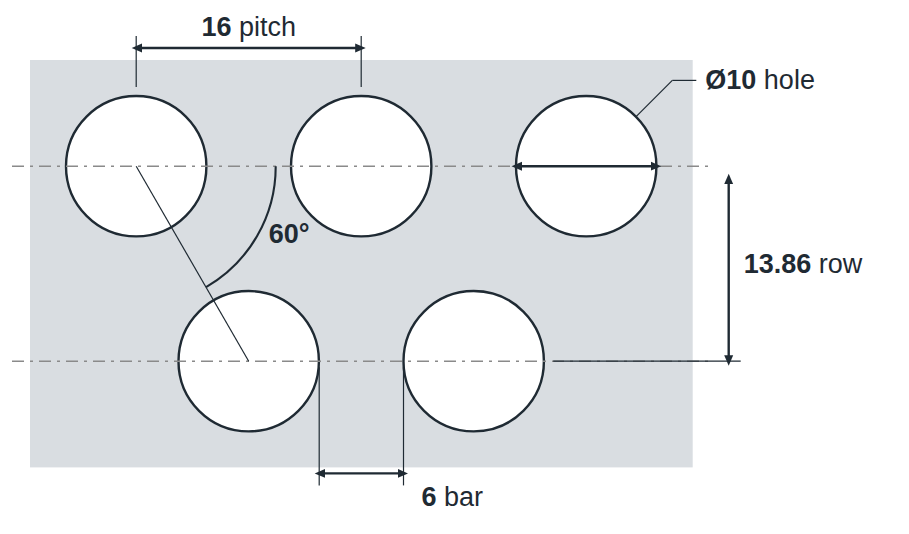

10mm hole mild steel perforated sheetR10 T16 hole layout: 10mm round holes, 16mm staggered pitch, 6mm bar, 13.86mm row spacing

R10 T16. 10mm round hole, 16mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for K067M
R10 T16 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K067M for easy re-ordering.Download spec sheet PDF

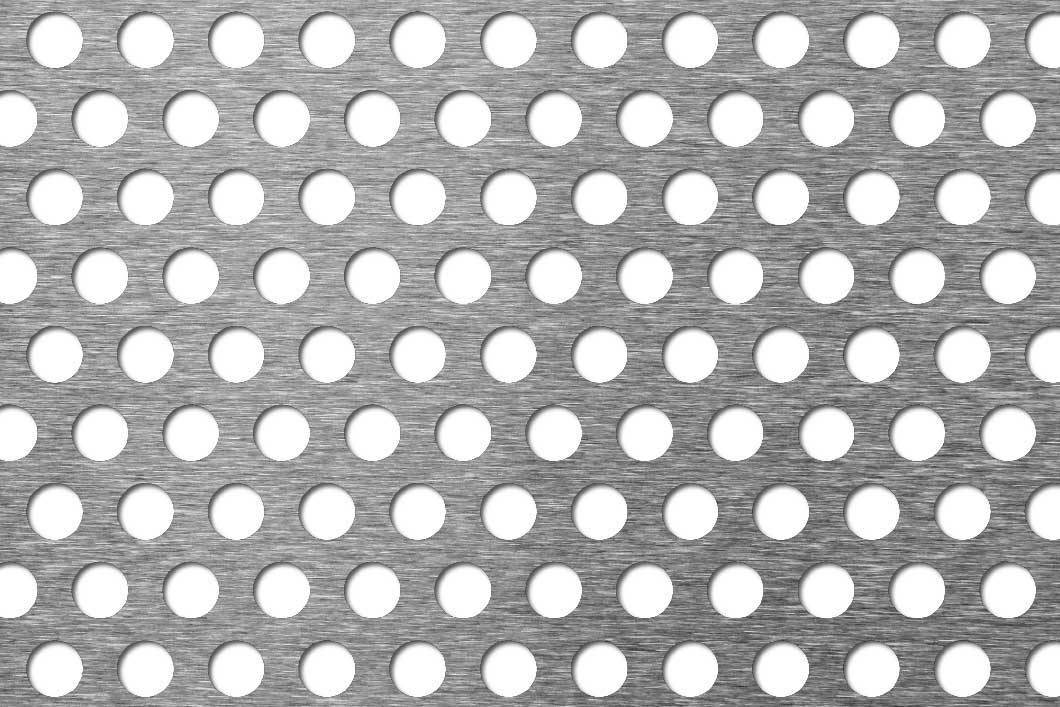

Perforated sheet, mild steel, r10 t16. Kenton code K067M

10mm hole mild steel perforated sheet

R10 T16 is a 10mm round hole perforated sheet in mild steel, with the holes on a 16mm staggered pitch giving 35% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1 to 8mm.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of R10 T16
Hole10mm round
Pitch16mm staggered 60°
Row spacing13.86mm
Bar between holes6mm
Open area35%
Holes per m²4,510
Thickness1–8mm
MaterialMild steel

Also written: R10T16 · 10mm R10 · 10mm hole 16mm pitch · 10mm round hole on 16mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessMild steel, K067MSheet size (mm)Weightkg/m²
2000 x 10002500 x 12503000 x 1500
1.0mm5 to 7 days5.1
1.5mm5 to 7 days5 to 7 days5 to 7 days7.6
2.0mm5 to 7 days5 to 7 days5 to 7 days10.1
3.0mm5 to 7 days5 to 7 days5 to 7 days15.2
8.0mm5 to 7 days40.6

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

R10 T16 hole layout: 10mm round holes, 16mm staggered pitch, 6mm bar, 13.86mm row spacing

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R10 T16

R10 T16 is a 10mm round hole perforated sheet in mild steel, with the holes on a 16mm staggered pitch giving 35% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1 to 8mm.

All sizes in the table are made to order, in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.

What does R10 T16 mean?

R10 is a 10mm round hole. T16 means the holes sit on a 16mm staggered (60°) pitch, measured centre to centre.

Not quite right? Compare similar patterns

Anything different from R10 T16 is marked. See every mild steel pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R10 T12.710mm round12.7mm staggered56%1–1.5mm5 to 7 days
R10 T1310mm round13mm staggered54%1–2mm5 to 7 days
R10 T13.510mm round13.5mm staggered50%1–2mm5 to 7 days
R10 T1410mm round14mm staggered46%1–2mm✓ In stock
R10 T1510mm round15mm staggered40%1–5mm✓ In stock
YOU’RE VIEWINGR10 T1610mm round16mm staggered35%1–8mm5 to 7 days
R10 T1810mm round18mm staggered28%1–8mm5 to 7 days

Highlighted where it differs from R10 T16
