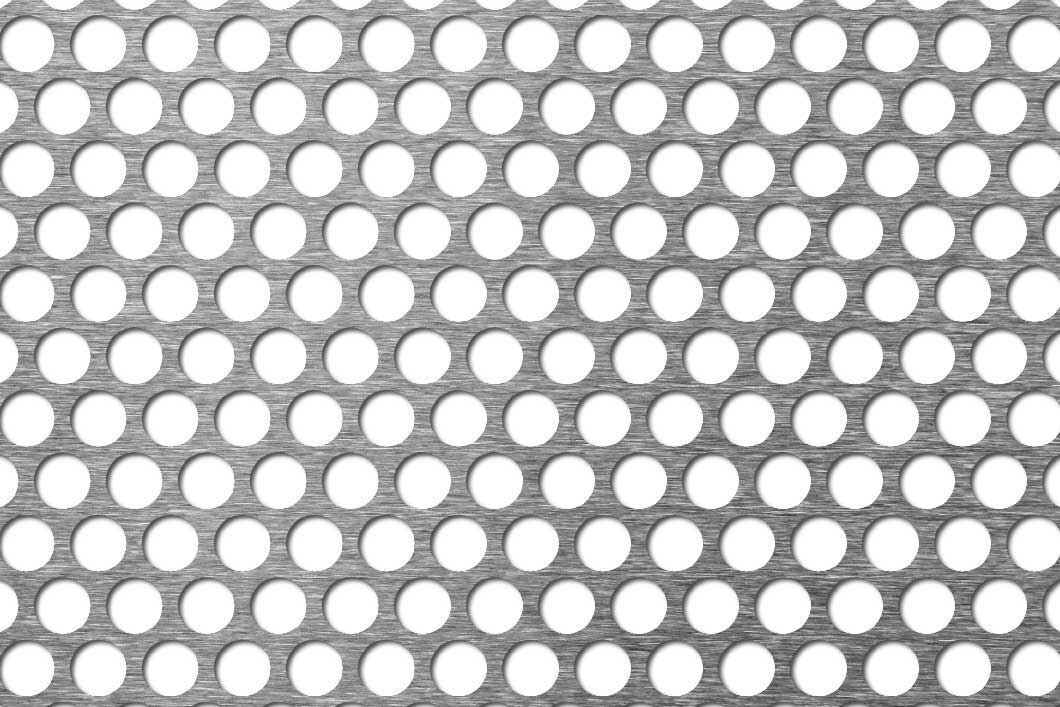

R10 T12.7 perforated sheet: 10mm round holes on 12.7mm staggered pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

10mm Hole Mild Steel Perforated Sheet (R10 T12.7)

Perforated sheetMild steelKenton code K091M

10mmRound hole
12.7mmStaggered pitch
56%Open area
1–1.5mmThickness

Stock and sheet sizes

Mild steelK091M 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 3.4
1.5mm 5-7 days 5.2

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

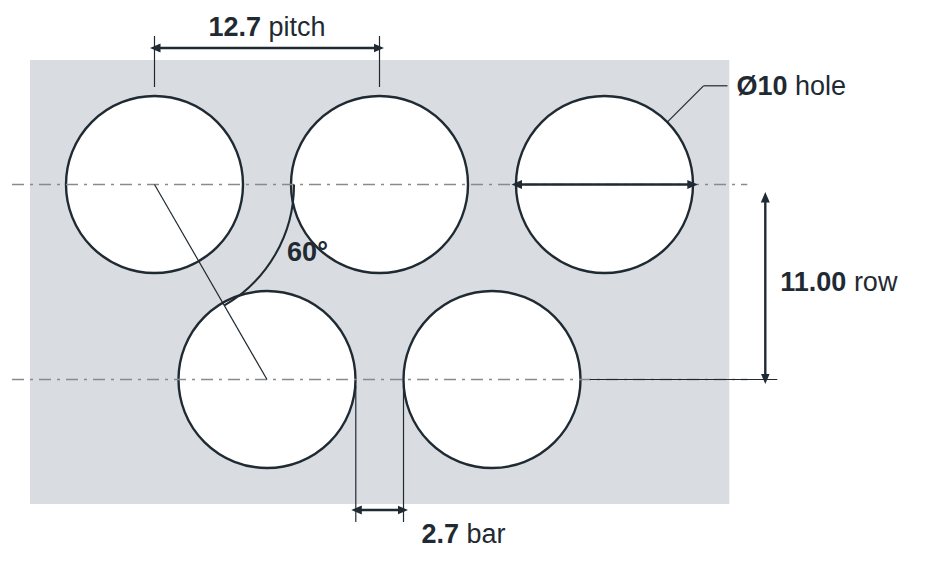

R10 T12.7 hole layout: 10mm round holes, 12.7mm staggered pitch, 2.7mm bar, 11.00mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
10mm round
Pitch
12.7mm staggered 60°
Row spacing
11.00mm
Bar between holes
2.7mm
Open area
56%
Holes per m²
7,160
Thickness
1–1.5mm
Material
Mild steel
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R10 T12.7 mild steel perforated sheet

R10 T12.7 is a 10mm round hole perforated sheet in mild steel, with the holes on a 12.7mm staggered pitch giving 56% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 1.5mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R10 T12.7 mean?

R10 is a 10mm round hole. T12.7 means the holes sit on a 12.7mm staggered (60°) pitch, measured centre to centre.

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R10 T12 10mm round 12mm staggered 63% 1–2mm 5-7 days
R10 T12.7This page 10mm round 12.7mm staggered 56% 1–1.5mm 5-7 days
R10 T13 10mm round 13mm staggered 54% 1–2mm 5-7 days
R10 T13.5 10mm round 13.5mm staggered 50% 1–2mm 5-7 days
R10 T14 10mm round 14mm staggered 46% 1–2mm ✓ In stock
R10 T15 10mm round 15mm staggered 40% 1–5mm ✓ In stock
R10 T16 10mm round 16mm staggered 35% 1–8mm 5-7 days

The nearest mild steel round hole patterns to R10 T12.7. See every mild steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
