10mm Hole Aluminium Perforated Sheet (R10 U20)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
10mm hole aluminium perforated sheetR10 U20 hole layout: 10mm round holes, 20mm square pitch, 10mm bar

R10 U20. 10mm round hole, 20mm square pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for K462A
R10 U20 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K462A for easy re-ordering.Download spec sheet PDF

Perforated sheet, aluminium, r10 u20. Kenton code K462A

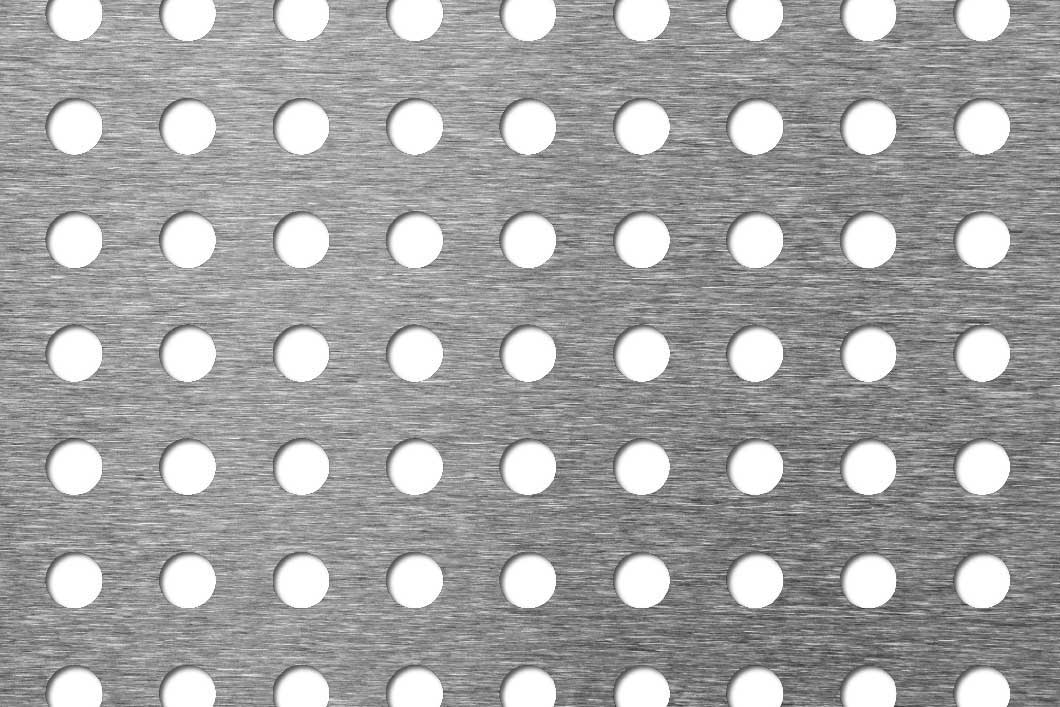

10mm hole aluminium perforated sheet

R10 U20 is a 10mm round hole perforated sheet in aluminium, with the holes on a 20mm square pitch giving 20% open area. It’s made to order in approximately 5 to 7 days, in 2mm thickness.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of R10 U20
Hole10mm round
Pitch20mm square
Bar between holes10mm
Open area20%
Holes per m²2,500
Thickness2mm
MaterialAluminium

Also written: R10U20 · 10mm R10 · 10mm hole 20mm pitch · 10mm round hole on 20mm square centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessAluminium, K462ASheet size (mm)Weightkg/m²
3000 x 1500
2.0mm5 to 7 days4.4

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

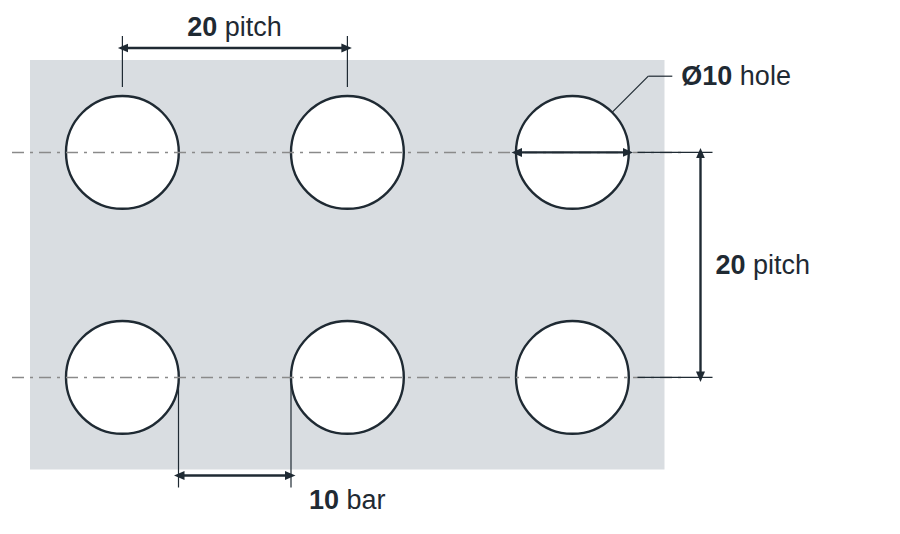

Hole layout

R10 U20 hole layout: 10mm round holes, 20mm square pitch, 10mm bar

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R10 U20

R10 U20 is a 10mm round hole perforated sheet in aluminium, with the holes on a 20mm square pitch giving 20% open area. It’s made to order in approximately 5 to 7 days, in 2mm thickness.

All sizes in the table are made to order, in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.

What does R10 U20 mean?

R10 is a 10mm round hole. U20 means the holes sit on a 20mm square (in-line) pitch, measured centre to centre.

Not quite right? Compare similar patterns

Anything different from R10 U20 is marked. See every aluminium pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R8 U17.328mm round17.32mm square17%1–3mm5 to 7 days
R10 T12.710mm round12.7mm staggered56%1mm5 to 7 days
R10 U1510mm round15mm square35%1–4mm5 to 7 days
R10 T1810mm round18mm staggered28%1–3mm5 to 7 days
YOU’RE VIEWINGR10 U2010mm round20mm square20%2mm5 to 7 days
R10 U2110mm round21mm square18%2mm✓ In stock
R10 U2610mm round26mm square12%1–4mm✓ In stock
R12 T2012mm round20mm staggered33%1.5–3mm5 to 7 days
R12 U27.7212mm round27.72mm square15%1–3mm5 to 7 days

Highlighted where it differs from R10 U20

Get a price

Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
