10mm hole pre-galvanised steel perforated sheet

R10 U21 hole layout: 10mm round holes, 21mm square pitch, 11mm bar

R10 U21. 10mm round hole, 21mm square pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

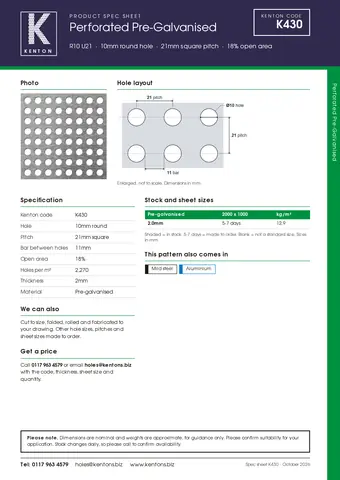

R10 U21 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K430 for easy re-ordering.Download spec sheet PDF

Perforated sheet, pre-galvanised, r10 u21. Kenton code K430

10mm hole pre-galvanised steel perforated sheet

R10 U21 is a 10mm round hole perforated sheet in pre-galvanised steel, with the holes on a 21mm square pitch giving 18% open area. It’s made to order, usually in 5 to 7 days, in 2mm thickness.

Made to order, usually 5 to 7 days

Product specificationThe measurements of R10 U21

Hole10mm round

Pitch21mm square

Bar between holes11mm

Open area18%

Holes per m²2,270

Thickness2mm

MaterialPre-galvanised

Also written: R10U21 · 10mm R10 · 10mm hole 21mm pitch · 10mm round hole on 21mm square centres

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessPre-galvanised, K430	Sheet size (mm)	Weightkg/m²
ThicknessPre-galvanised, K430	2000 x 1000	Weightkg/m²
2.0mm	5 to 7 days	12.9

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R10 U21

R10 U21 is a 10mm round hole perforated sheet in pre-galvanised steel, with the holes on a 21mm square pitch giving 18% open area. It’s made to order, usually in 5 to 7 days, in 2mm thickness.

All sizes in the table are made to order, usually in 5 to 7 days.

What does R10 U21 mean?

R10 is a 10mm round hole. U21 means the holes sit on a 21mm square (in-line) pitch, measured centre to centre.

This pattern also comes in

Mild steel Aluminium

Not quite right? Compare similar patterns

Anything different from R10 U21 is marked. See every pre-galvanised steel pattern, or work out a different pattern

Pattern	Hole	Pitch	Open area	Thickness	Stock
R8 T10	8mm round	10mm staggered	58%	0.75mm	5 to 7 days
R8 T11	8mm round	11mm staggered	48%	1–2mm	5 to 7 days
R8 T12	8mm round	12mm staggered	40%	1–3mm	5 to 7 days
R10 T14	10mm round	14mm staggered	46%	1–2mm	5 to 7 days
R10 T15	10mm round	15mm staggered	40%	1–3mm	✓ In stock
YOU’RE VIEWINGR10 U21	10mm round	21mm square	18%	2mm	5 to 7 days
R15 T21	15mm round	21mm staggered	46%	1–3mm	5 to 7 days

Highlighted where it differs from R10 U21
