8mm hole pre-galvanised steel perforated sheet

R8 T10 hole layout: 8mm round holes, 10mm staggered pitch, 2mm bar, 8.66mm row spacing

R8 T10. 8mm round hole, 10mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

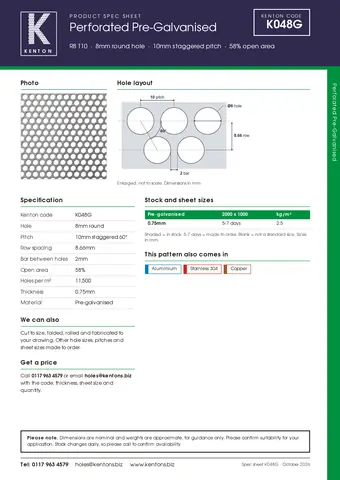

R8 T10 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K048G for easy re-ordering.Download spec sheet PDF

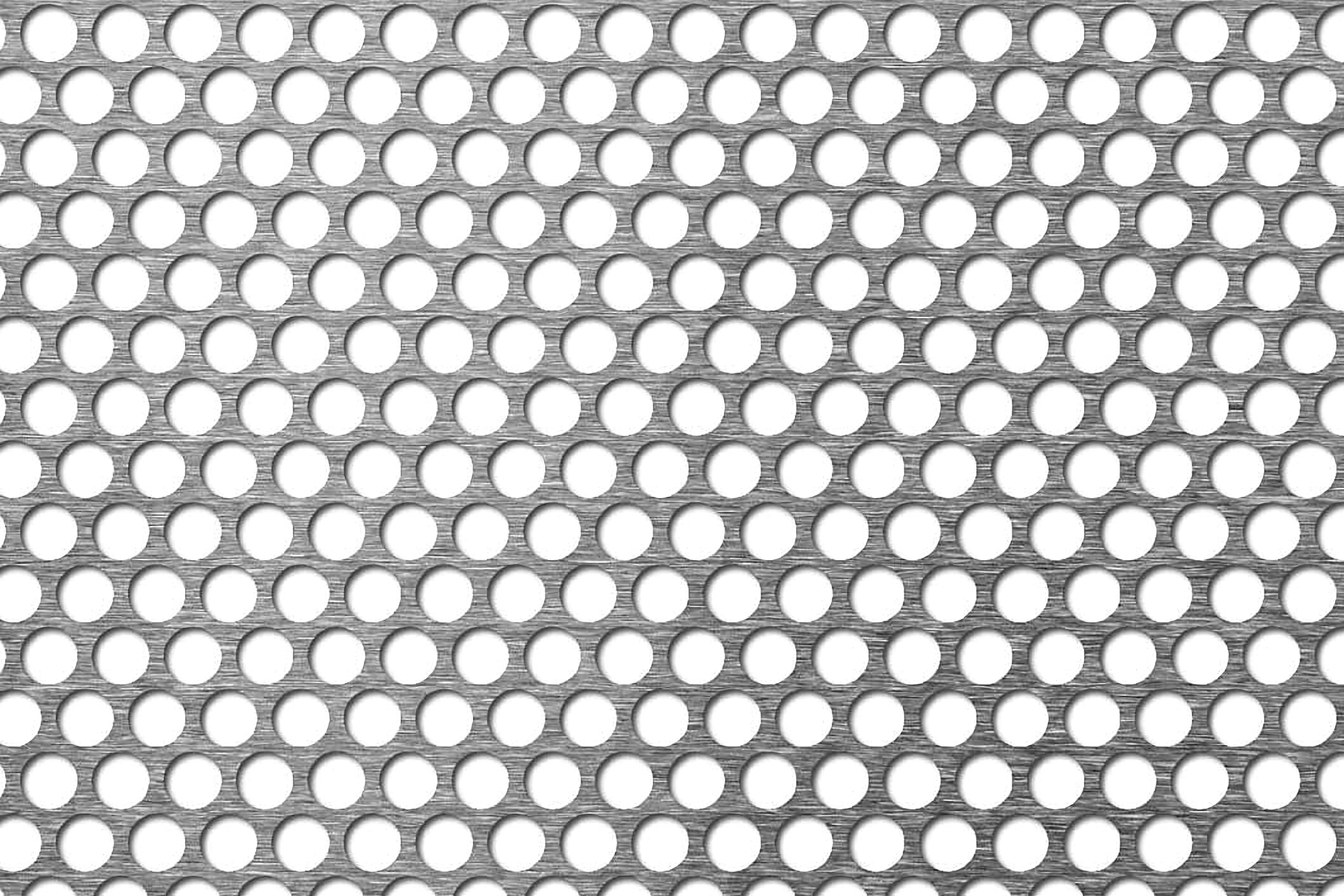

Perforated sheet, pre-galvanised, r8 t10. Kenton code K048G

8mm hole pre-galvanised steel perforated sheet

R8 T10 is an 8mm round hole perforated sheet in pre-galvanised steel, with the holes on a 10mm staggered pitch giving 58% open area. It’s made to order, usually in 5 to 7 days, in 0.75mm thickness.

Made to order, usually 5 to 7 days

Product specificationThe measurements of R8 T10

Hole8mm round

Pitch10mm staggered 60°

Row spacing8.66mm

Bar between holes2mm

Open area58%

Holes per m²11,500

Thickness0.75mm

MaterialPre-galvanised

Also written: R8T10 · 8mm R8 · 8mm hole 10mm pitch · 8mm round hole on 10mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessPre-galvanised, K048G	Sheet size (mm)	Weightkg/m²
ThicknessPre-galvanised, K048G	2000 x 1000	Weightkg/m²
0.75mm	5 to 7 days	2.5

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R8 T10

R8 T10 is an 8mm round hole perforated sheet in pre-galvanised steel, with the holes on a 10mm staggered pitch giving 58% open area. It’s made to order, usually in 5 to 7 days, in 0.75mm thickness.

All sizes in the table are made to order, usually in 5 to 7 days.

What does R8 T10 mean?

R8 is an 8mm round hole. T10 means the holes sit on a 10mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Aluminium Stainless 304 Copper

Not quite right? Compare similar patterns

Anything different from R8 T10 is marked. See every pre-galvanised steel pattern

Pattern	Hole	Pitch	Open area	Thickness	Stock
R5 T7	5mm round	7mm staggered	46%	1–2mm	✓ In stock
R6 T8	6mm round	8mm staggered	51%	1–1.5mm	✓ In stock
YOU’RE VIEWINGR8 T10	8mm round	10mm staggered	58%	0.75mm	5 to 7 days
R8 T11	8mm round	11mm staggered	48%	1–2mm	5 to 7 days
R8 T12	8mm round	12mm staggered	40%	1–3mm	5 to 7 days
R10 T14	10mm round	14mm staggered	46%	1–2mm	5 to 7 days
R10 T15	10mm round	15mm staggered	40%	1–3mm	✓ In stock

Highlighted where it differs from R8 T10
