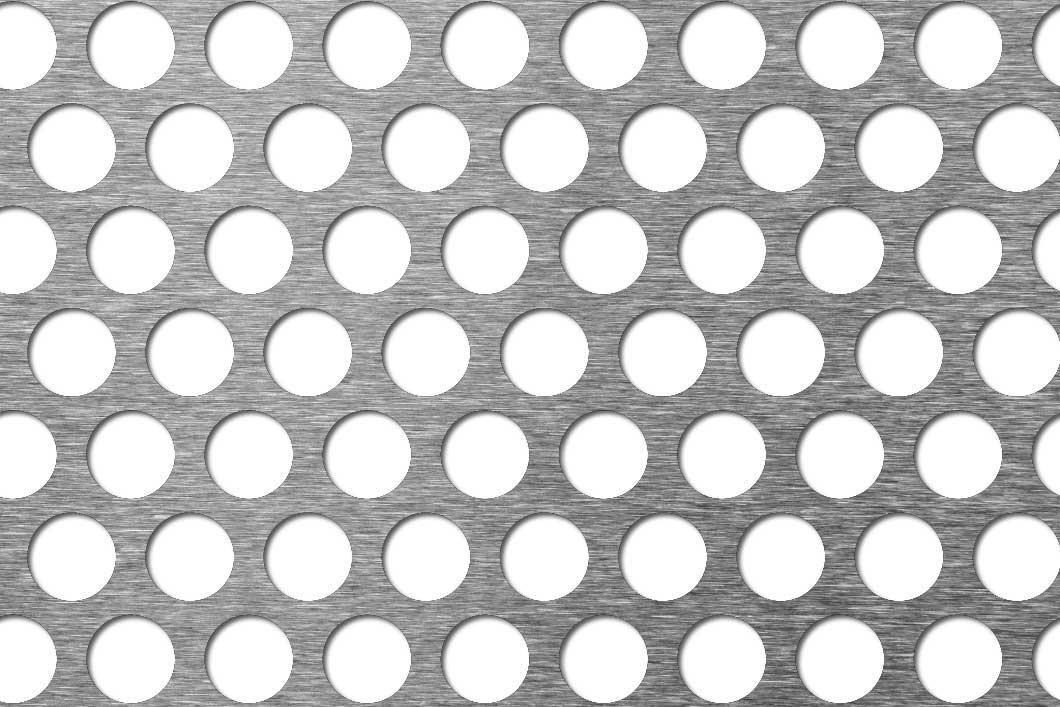

15mm Hole 304 Stainless Steel Perforated Sheet (R15 T20)
Perforated sheetStainless 304Kenton code K073S
Stock and sheet sizes
| Stainless 304K073S | 2000 x 1000 | kg/m² |
|---|---|---|
| 1.5mm | ✓ In stock | 5.9 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

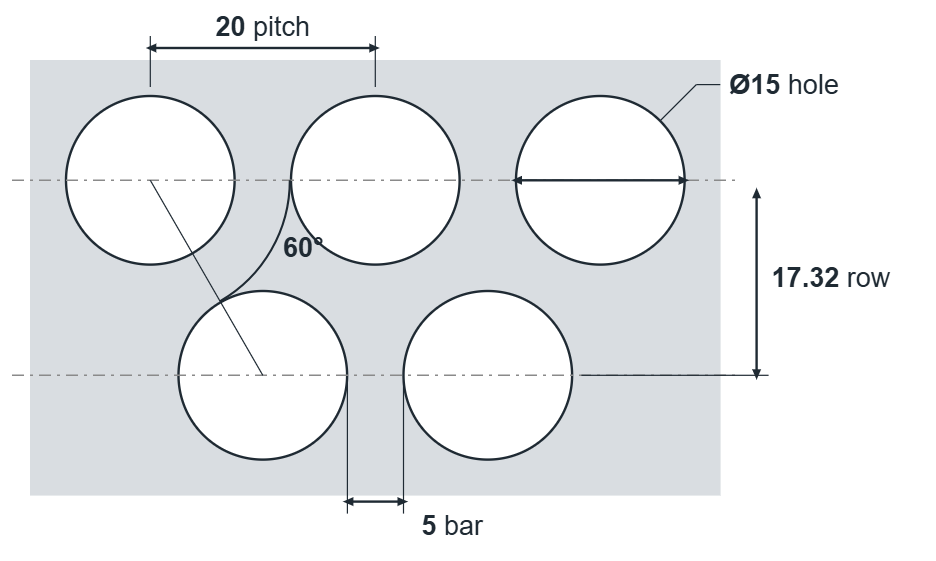

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 15mm round
- Pitch
- 20mm staggered 60°
- Row spacing
- 17.32mm
- Bar between holes
- 5mm
- Open area
- 51%
- Holes per m²
- 2,890
- Thickness
- 1.5mm
- Material
- Stainless 304
About R15 T20 304 stainless steel perforated sheet
R15 T20 is a 15mm round hole perforated sheet in 304 stainless steel, with the holes on a 20mm staggered pitch giving 51% open area. We keep it in stock here in Bristol, in 1.5mm thickness. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
In stock: 1.5mm in 2m x 1m sheets. Everything else in the table is made to order in 5-7 days.
What does R15 T20 mean?
R15 is a 15mm round hole. T20 means the holes sit on a 20mm staggered (60°) pitch, measured centre to centre.
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R8 T11 | 8mm round | 11mm staggered | 48% | 1–2mm | 5-7 days |
| R10 T13 | 10mm round | 13mm staggered | 54% | 1mm | 5-7 days |
| R10 T15 | 10mm round | 15mm staggered | 40% | 1–4mm | ✓ In stock |
| R15 T20This page | 15mm round | 20mm staggered | 51% | 1.5mm | ✓ In stock |
| R15 T21 | 15mm round | 21mm staggered | 46% | 1–3mm | 5-7 days |
| R20 T28 | 20mm round | 28mm staggered | 46% | 1–3mm | ✓ In stock |
| R20 U48.5 | 20mm round | 48.5mm square | 13% | 1–2mm | 5-7 days |
The nearest 304 stainless steel round hole patterns to R15 T20. See every 304 stainless steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
