15mm Hole 316 Stainless Steel Perforated Sheet (R15 T21)
Description


R15 T21. 15mm round hole, 21mm staggered pitch.

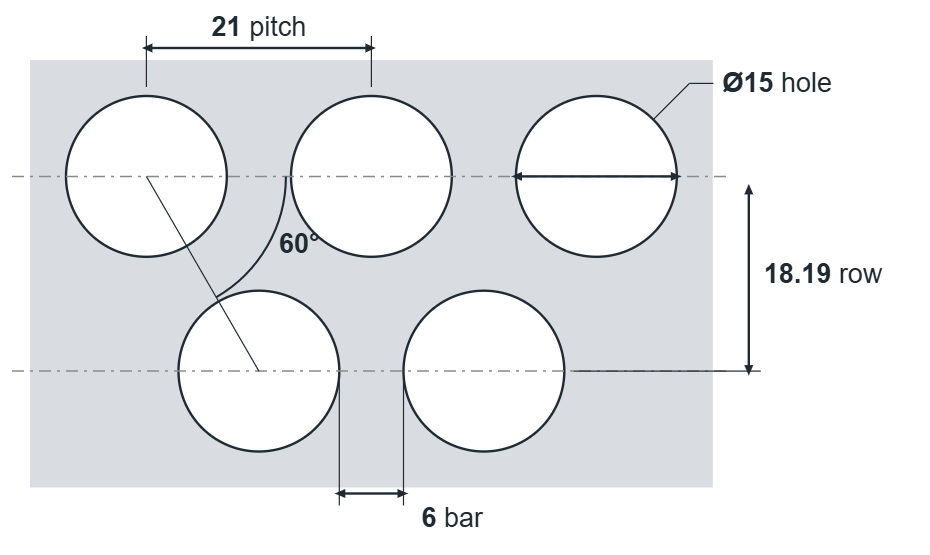

Hole layout. Enlarged, not to scale. Dimensions in mm.

Perforated sheet, stainless 316, r15 t21. Kenton code K075S6
15mm hole 316 stainless steel perforated sheet
R15 T21 is a 15mm round hole perforated sheet in 316 stainless steel, with the holes on a 21mm staggered pitch giving 46% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1.5 to 2mm.
Also written: R15T21 · 15mm R15 · 15mm hole 21mm pitch · 15mm round hole on 21mm staggered centres
| ThicknessStainless 316, K075S6 | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.5mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 6.4 |
| 2.0mm | 5 to 7 days | 8.6 | ||
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout

Enlarged, not to scale. Dimensions in mm.
About R15 T21
R15 T21 is a 15mm round hole perforated sheet in 316 stainless steel, with the holes on a 21mm staggered pitch giving 46% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1.5 to 2mm.
All sizes in the table are made to order, in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.
What does R15 T21 mean?
R15 is a 15mm round hole. T21 means the holes sit on a 21mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R15 T21 is marked. See every 316 stainless steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R10 T14 | 10mm round | 14mm staggered | 46% | 1–2mm | 5 to 7 days |
| R12 T16 | 12mm round | 16mm staggered | 51% | 1–2mm | 5 to 7 days |
| R12 T20 | 12mm round | 20mm staggered | 33% | 1.5mm | 5 to 7 days |
| YOU’RE VIEWINGR15 T21 | 15mm round | 21mm staggered | 46% | 1.5–2mm | 5 to 7 days |
| R15 U36.38 | 15mm round | 36.38mm square | 13% | 1–2mm | 5 to 7 days |
| R16 T20 | 16mm round | 20mm staggered | 58% | 1–1.5mm | 5 to 7 days |
| R18 T22 | 18mm round | 22mm staggered | 61% | 1–2mm | 5 to 7 days |
| R20 T25 | 20mm round | 25mm staggered | 58% | 1–2mm | 5 to 7 days |
| R20 T28 | 20mm round | 28mm staggered | 46% | 1–2mm | 5 to 7 days |
Highlighted where it differs from R15 T21
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
