Stock and sheet sizes

Stainless 316K080S6	2000 x 1000	2500 x 1250	3000 x 1500	kg/m²
1.0mm	5-7 days			4.3
1.5mm	5-7 days	5-7 days	5-7 days	6.4
2.0mm	5-7 days			8.6

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

Cut to sizewhile you wait

Next working daydelivery on stock sheets

Folded & fabricatedto your drawing

Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579 Email us

Description

Technical details

Hole layout

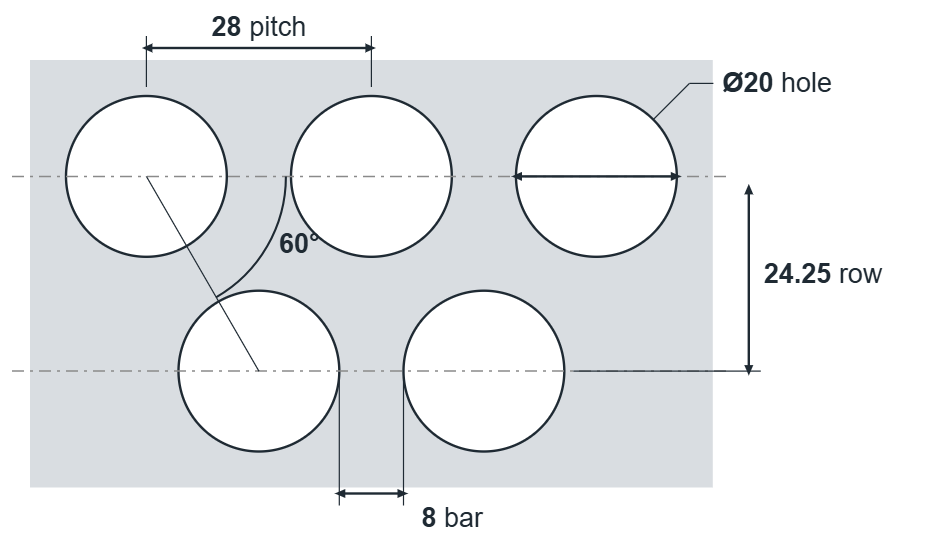

R20 T28 hole layout: 20mm round holes, 28mm staggered pitch, 8mm bar, 24.25mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole: 20mm round
Pitch: 28mm staggered 60°
Row spacing: 24.25mm
Bar between holes: 8mm
Open area: 46%
Holes per m²: 1,470
Thickness: 1–2mm
Material: Stainless 316

Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579 Email your drawing

About R20 T28 316 stainless steel perforated sheet

R20 T28 is a 20mm round hole perforated sheet in 316 stainless steel, with the holes on a 28mm staggered pitch giving 46% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R20 T28 mean?

R20 is a 20mm round hole. T28 means the holes sit on a 28mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steel Aluminium Pre-galvanised steel Stainless 304

Similar patterns

Pattern	Hole	Pitch	Open area	Thickness	Stock
R15 T21	15mm round	21mm staggered	46%	1.5–2mm	5-7 days
R18 T22	18mm round	22mm staggered	61%	1–2mm	5-7 days
R20 T25	20mm round	25mm staggered	58%	1–2mm	5-7 days
R20 T28This page	20mm round	28mm staggered	46%	1–2mm	5-7 days
R20 U48.5	20mm round	48.5mm square	13%	1–2mm	5-7 days
R25 T30	25mm round	30mm staggered	63%	1–2mm	5-7 days
R30 T40	30mm round	40mm staggered	51%	1–2mm	5-7 days

The nearest 316 stainless steel round hole patterns to R20 T28. See every 316 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.

Stock orders ship on a next working day delivery !
