15mm Hole Mild Steel Perforated Sheet (R15 T24)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
15mm hole mild steel perforated sheetR15 T24 hole layout: 15mm round holes, 24mm staggered pitch, 9mm bar, 20.78mm row spacing

R15 T24. 15mm round hole, 24mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for K076M
R15 T24 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K076M for easy re-ordering.Download spec sheet PDF

Perforated sheet, mild steel, r15 t24. Kenton code K076M

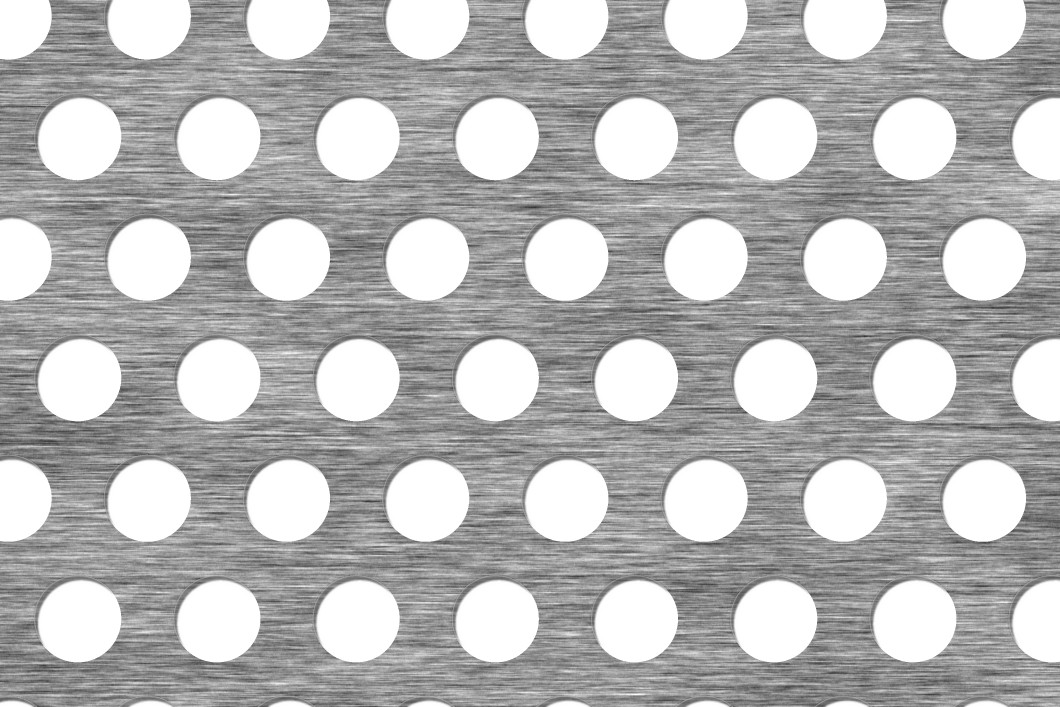

15mm hole mild steel perforated sheet

R15 T24 is a 15mm round hole perforated sheet in mild steel, with the holes on a 24mm staggered pitch giving 35% open area. We keep it in stock, in thicknesses from 6 to 8mm.

In stock, next working day delivery
Product specificationThe measurements of R15 T24
Hole15mm round
Pitch24mm staggered 60°
Row spacing20.78mm
Bar between holes9mm
Open area35%
Holes per m²2,000
Thickness6–8mm
MaterialMild steel

Also written: R15T24 · 15mm R15 · 15mm hole 24mm pitch · 15mm round hole on 24mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessMild steel, K076MSheet size (mm)Weightkg/m²
2000 x 1000
6.0mm✓ In stock30.4
8.0mm✓ In stock40.6

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

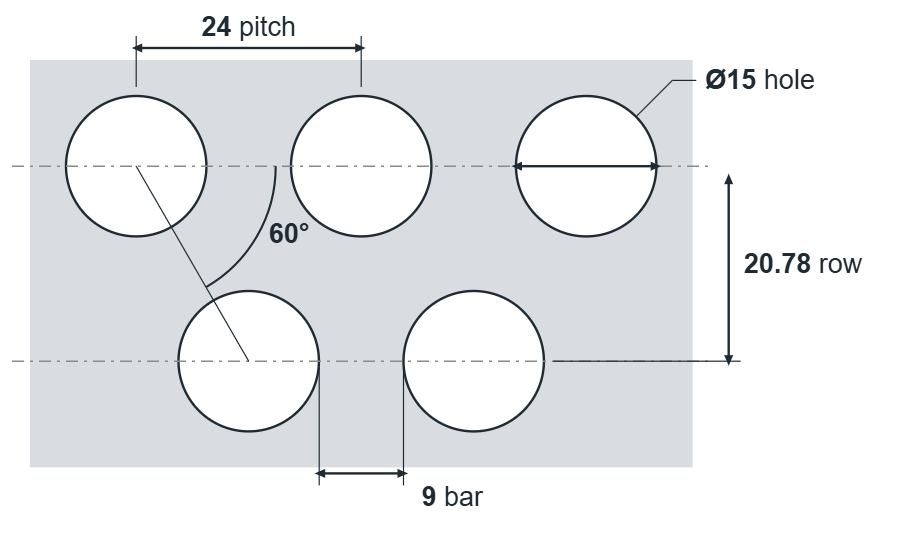

Hole layout

R15 T24 hole layout: 15mm round holes, 24mm staggered pitch, 9mm bar, 20.78mm row spacing

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R15 T24

R15 T24 is a 15mm round hole perforated sheet in mild steel, with the holes on a 24mm staggered pitch giving 35% open area. We keep it in stock, in thicknesses from 6 to 8mm.

In stock: 6mm and 8mm in 2m x 1m sheets. Everything else in the table is made to order in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.

What does R15 T24 mean?

R15 is a 15mm round hole. T24 means the holes sit on a 24mm staggered (60°) pitch, measured centre to centre.

Not quite right? Compare similar patterns

Anything different from R15 T24 is marked. See every mild steel pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R10 T1410mm round14mm staggered46%1–2mm5 to 7 days
R10 T1510mm round15mm staggered40%1–5mm✓ In stock
R12 T1612mm round16mm staggered51%1–6mm✓ In stock
R12 T2012mm round20mm staggered33%1–10mm✓ In stock
R15 T2115mm round21mm staggered46%1–4mm5 to 7 days
YOU’RE VIEWINGR15 T2415mm round24mm staggered35%6–8mm✓ In stock
R20 T2820mm round28mm staggered46%1–4mm✓ In stock

Highlighted where it differs from R15 T24
