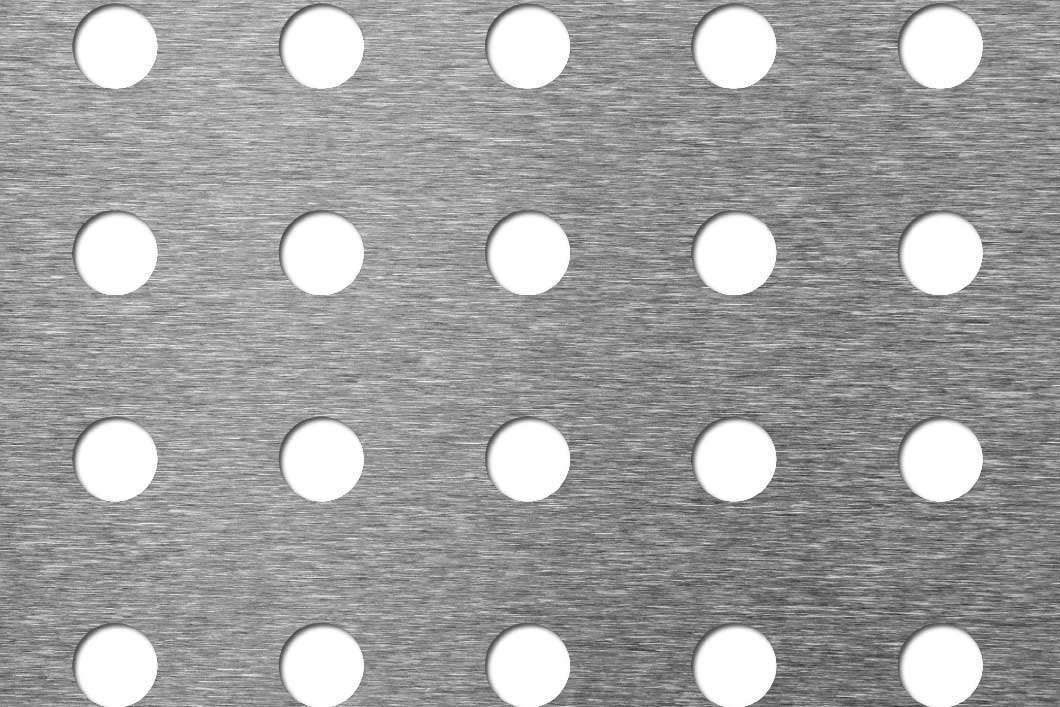

R15 U36.38 perforated sheet: 15mm round holes on 36.38mm square pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

15mm Hole 304 Stainless Steel Perforated Sheet (R15 U36.38)

Perforated sheetStainless 304Kenton code K495S

15mmRound hole
36.38mmSquare pitch
13%Open area
1–3mmThickness

Stock and sheet sizes

Stainless 304K495S 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 6.9
1.5mm 5-7 days 5-7 days 5-7 days 10.4
2.0mm 5-7 days 5-7 days 5-7 days 13.9
3.0mm 5-7 days 20.8

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

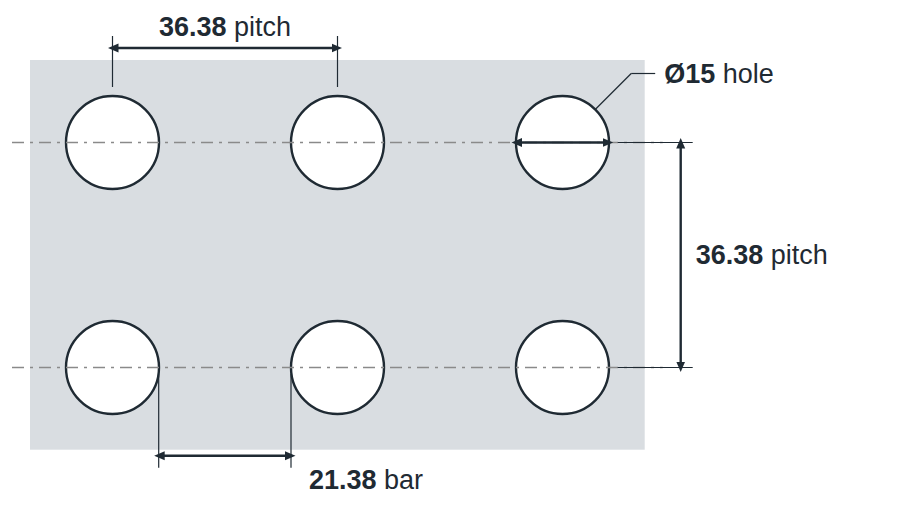

R15 U36.38 hole layout: 15mm round holes, 36.38mm square pitch, 21.38mm bar

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
15mm round
Pitch
36.38mm square
Bar between holes
21.38mm
Open area
13%
Holes per m²
756
Thickness
1–3mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R15 U36.38 304 stainless steel perforated sheet

R15 U36.38 is a 15mm round hole perforated sheet in 304 stainless steel, with the holes on a 36.38mm square pitch giving 13% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 3mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R15 U36.38 mean?

R15 is a 15mm round hole. U36.38 means the holes sit on a 36.38mm square (in-line) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelStainless 316

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R10 U15 10mm round 15mm square 35% 1–3mm 5-7 days
R10 U26 10mm round 26mm square 12% 1–3mm ✓ In stock
R12 U27.72 12mm round 27.72mm square 15% 1–3mm 5-7 days
R15 T20 15mm round 20mm staggered 51% 1.5mm ✓ In stock
R15 T21 15mm round 21mm staggered 46% 1–3mm ✓ In stock
R15 U36.38This page 15mm round 36.38mm square 13% 1–3mm 5-7 days
R20 U48.5 20mm round 48.5mm square 13% 1–2mm ✓ In stock

The nearest 304 stainless steel round hole patterns to R15 U36.38. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
