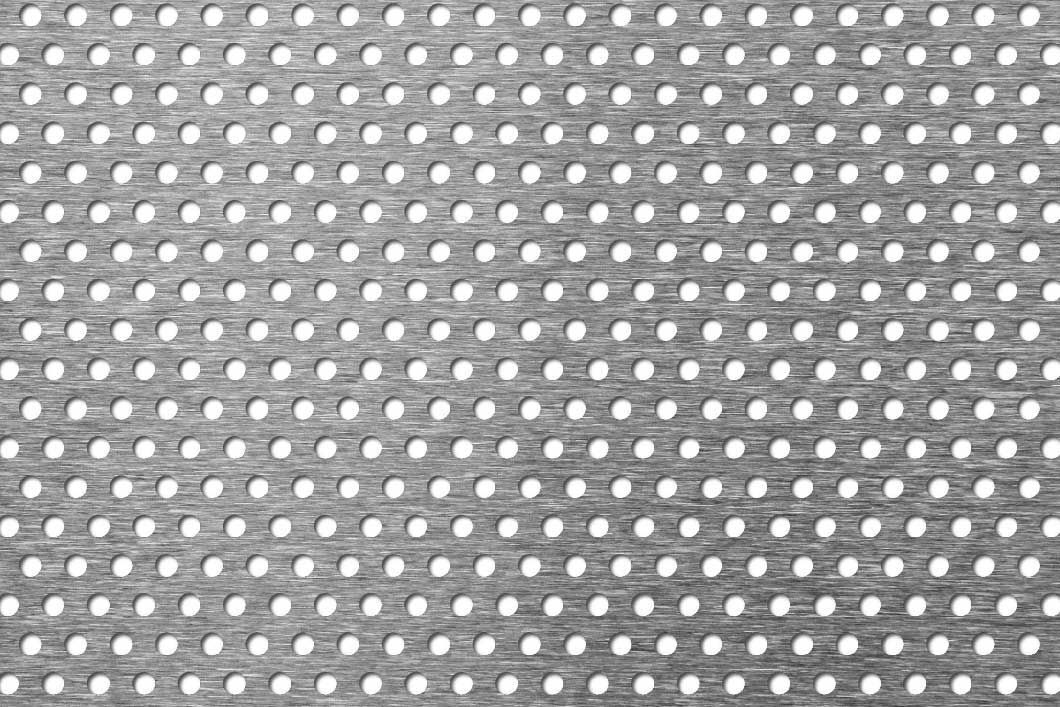

R4 T8 perforated sheet: 4mm round holes on 8mm staggered pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

4mm Hole Pre-Galvanised Steel Perforated Sheet (R4 T8)

Perforated sheetPre-galvanisedKenton code K038G

4mmRound hole
8mmStaggered pitch
23%Open area
1–2mmThickness

Stock and sheet sizes

Pre-galvanisedK038G 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 6.1
1.5mm 5-7 days 5-7 days 5-7 days 9.1
2.0mm 5-7 days 5-7 days 5-7 days 12.1

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

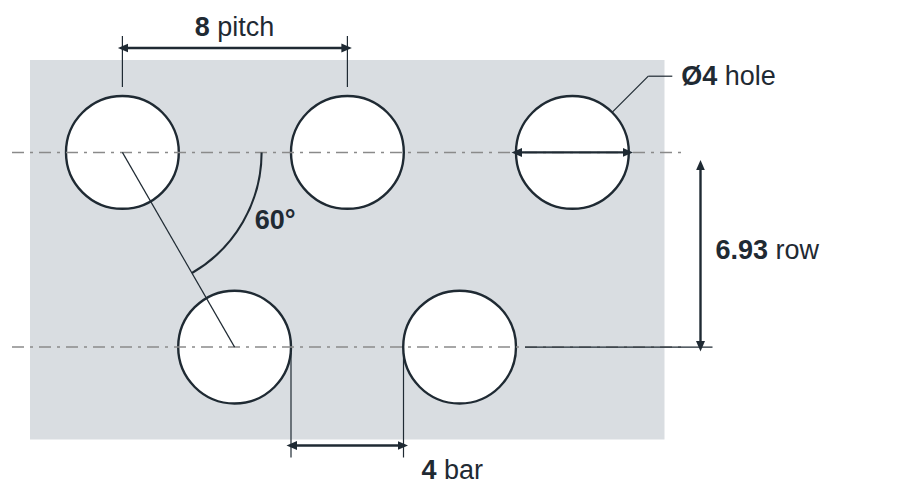

R4 T8 hole layout: 4mm round holes, 8mm staggered pitch, 4mm bar, 6.93mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
4mm round
Pitch
8mm staggered 60°
Row spacing
6.93mm
Bar between holes
4mm
Open area
23%
Holes per m²
18,000
Thickness
1–2mm
Material
Pre-galvanised
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R4 T8 pre-galvanised steel perforated sheet

R4 T8 is a 4mm round hole perforated sheet in pre-galvanised steel, with the holes on an 8mm staggered pitch giving 23% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R4 T8 mean?

R4 is a 4mm round hole. T8 means the holes sit on an 8mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Aluminium

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R4 T5 4mm round 5mm staggered 58% 1mm 5-7 days
R4 T6 4mm round 6mm staggered 40% 1–3mm ✓ In stock
R4 T7 4mm round 7mm staggered 30% 1–3mm 5-7 days
R4 T8This page 4mm round 8mm staggered 23% 1–2mm 5-7 days
R5 T9 5mm round 9mm staggered 28% 1–3mm 5-7 days
R5 T10 5mm round 10mm staggered 23% 1–2mm 5-7 days
R5 T12 5mm round 12mm staggered 16% 1.5–3mm 5-7 days

The nearest pre-galvanised steel round hole patterns to R4 T8. See every pre-galvanised steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
