4mm Hole Pre-Galvanised Steel Perforated Sheet (R4 T5)
Perforated sheetPre-galvanisedKenton code K034G
Stock and sheet sizes
| Pre-galvanisedK034G | 2000 x 1000 | 2500 x 1250 | kg/m² |
|---|---|---|---|
| 1.0mm | 5-7 days | 5-7 days | 3.3 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

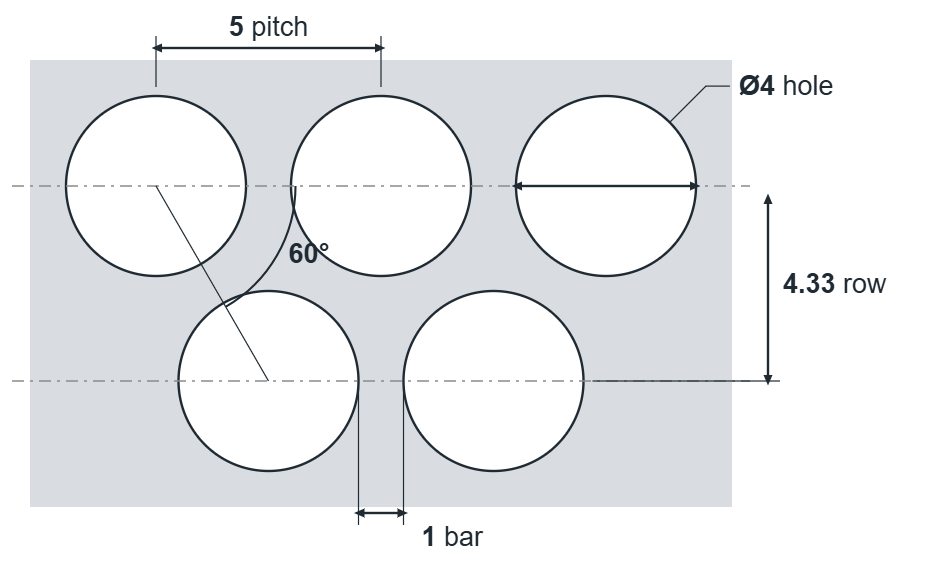

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 4mm round
- Pitch
- 5mm staggered 60°
- Row spacing
- 4.33mm
- Bar between holes
- 1mm
- Open area
- 58%
- Holes per m²
- 46,200
- Thickness
- 1mm
- Material
- Pre-galvanised
About R4 T5 pre-galvanised steel perforated sheet
R4 T5 is a 4mm round hole perforated sheet in pre-galvanised steel, with the holes on a 5mm staggered pitch giving 58% open area. It’s made to order, usually in 5-7 days, in 1mm thickness. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
All sizes in the table are made to order, usually in 5-7 days.
What does R4 T5 mean?
R4 is a 4mm round hole. T5 means the holes sit on a 5mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R4 T5This page | 4mm round | 5mm staggered | 58% | 1mm | 5-7 days |
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–3mm | ✓ In stock |
| R4 T7 | 4mm round | 7mm staggered | 30% | 1–3mm | 5-7 days |
| R4 T8 | 4mm round | 8mm staggered | 23% | 1–2mm | 5-7 days |
| R5 T6 | 5mm round | 6mm staggered | 63% | 1mm | 5-7 days |
| R5 T7 | 5mm round | 7mm staggered | 46% | 1–2mm | ✓ In stock |
| R5 T7.5 | 5mm round | 7.5mm staggered | 40% | 0.6–1.5mm | 5-7 days |
The nearest pre-galvanised steel round hole patterns to R4 T5. See every pre-galvanised steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
