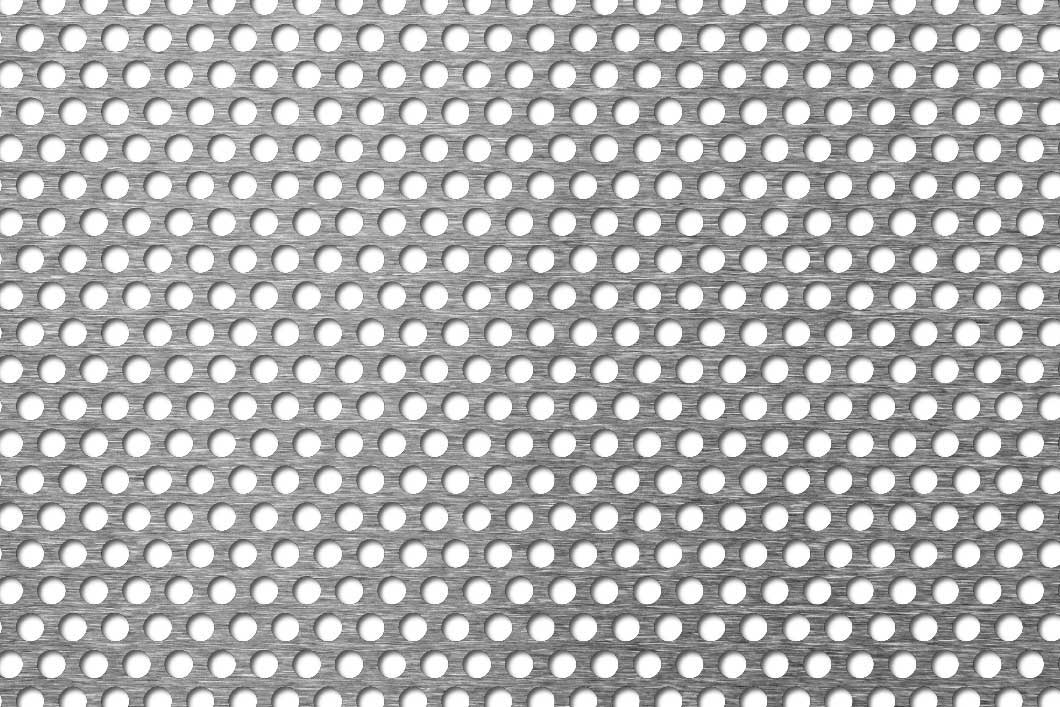

R5 T7.5 perforated sheet: 5mm round holes on 7.5mm staggered pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

5mm Hole 304 Stainless Steel Perforated Sheet (R5 T7.5)

Perforated sheetStainless 304Kenton code K097S

5mmRound hole
7.5mmStaggered pitch
40%Open area
1.5mmThickness

Stock and sheet sizes

Stainless 304K097S 2000 x 1000 kg/m²
1.5mm 5-7 days 7.2

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

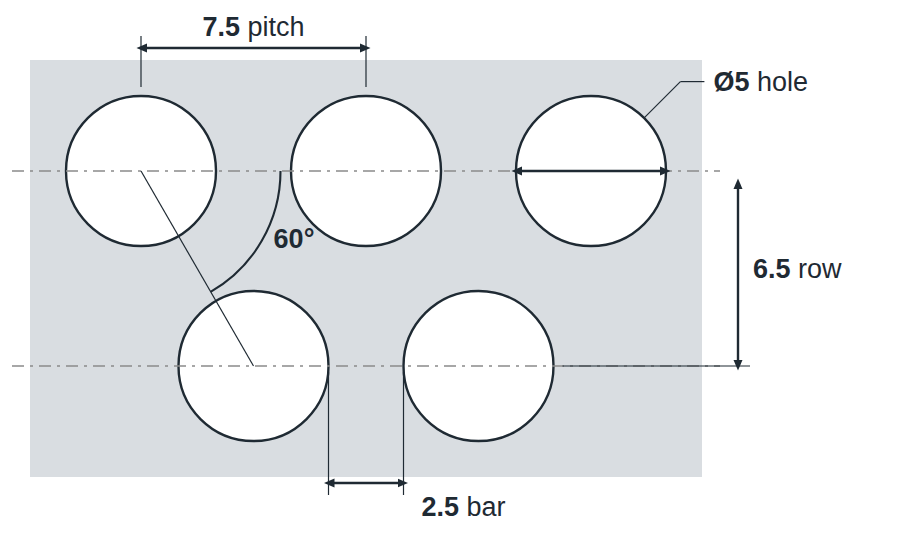

R5 T7.5 hole layout: 5mm round holes, 7.5mm staggered pitch, 2.5mm bar, 6.5mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
5mm round
Pitch
7.5mm staggered 60°
Row spacing
6.5mm
Bar between holes
2.5mm
Open area
40%
Holes per m²
20,500
Thickness
1.5mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R5 T7.5 304 stainless steel perforated sheet

R5 T7.5 is a 5mm round hole perforated sheet in 304 stainless steel, with the holes on a 7.5mm staggered pitch giving 40% open area. It’s made to order, usually in 5-7 days, in 1.5mm thickness. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R5 T7.5 mean?

R5 is a 5mm round hole. T7.5 means the holes sit on a 7.5mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steel

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R5 T7 5mm round 7mm staggered 46% 1–2mm ✓ In stock
R5 T7.5This page 5mm round 7.5mm staggered 40% 1.5mm 5-7 days
R5 T8 5mm round 8mm staggered 35% 1–3mm ✓ In stock
R5 T9 5mm round 9mm staggered 28% 1–1.5mm 5-7 days
R5 T10 5mm round 10mm staggered 23% 1–2mm 5-7 days
R5 T12 5mm round 12mm staggered 16% 1.5–2mm 5-7 days
R5 T14 5mm round 14mm staggered 12% 1–2mm 5-7 days

The nearest 304 stainless steel round hole patterns to R5 T7.5. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
