5mm Hole 304 Stainless Steel Perforated Sheet (R5 T7)

Need help in choosing the right product?

Ask our experts

CONTACT US

5mm Hole 304 Stainless Steel Perforated Sheet (R5 T7)

Perforated sheetStainless 304Kenton code K040S

5mmRound hole
7mmStaggered pitch
46%Open area
1–2mmThickness

Stock and sheet sizes

Stainless 304K040S 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 4.3
1.5mm 5-7 days ✓ In stock 5-7 days 6.4
2.0mm 5-7 days 5-7 days 8.6

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

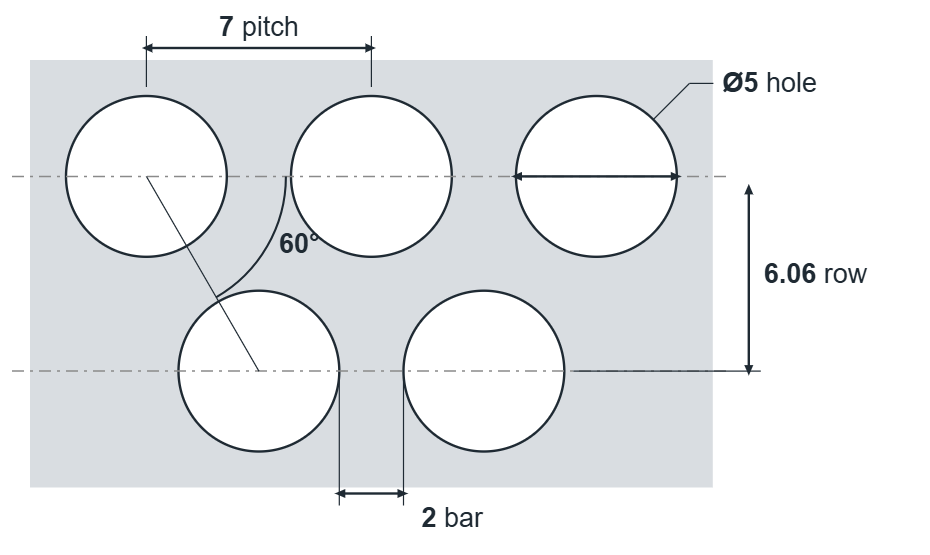

R5 T7 hole layout: 5mm round holes, 7mm staggered pitch, 2mm bar, 6.06mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
5mm round
Pitch
7mm staggered 60°
Row spacing
6.06mm
Bar between holes
2mm
Open area
46%
Holes per m²
23,600
Thickness
1–2mm
Material
Stainless 304
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R5 T7 304 stainless steel perforated sheet

R5 T7 is a 5mm round hole perforated sheet in 304 stainless steel, with the holes on a 7mm staggered pitch giving 46% open area. We keep it in stock here in Bristol, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

In stock: 1.5mm in 2.5m x 1.25m sheets. Everything else in the table is made to order in 5-7 days.

What does R5 T7 mean?

R5 is a 5mm round hole. T7 means the holes sit on a 7mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelCopper

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R4 T6 4mm round 6mm staggered 40% 1–2mm ✓ In stock
R4.5 U15 4.5mm round 15mm square 7% 1.5mm ✓ In stock
R5 T7This page 5mm round 7mm staggered 46% 1–2mm ✓ In stock
R5 T8 5mm round 8mm staggered 35% 1–3mm ✓ In stock
R6 T8 6mm round 8mm staggered 51% 1–2mm ✓ In stock
R6 T9 6mm round 9mm staggered 40% 1–3mm ✓ In stock
R8 T11 8mm round 11mm staggered 48% 1–2mm 5-7 days

The nearest 304 stainless steel round hole patterns to R5 T7. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
