5mm Hole 304 Stainless Steel Perforated Sheet (R5 T8)
Description
R5 T8. 5mm round hole, 8mm staggered pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

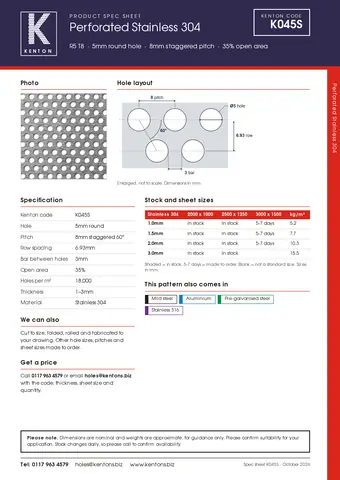

Perforated sheet, stainless 304, r5 t8. Kenton code K045S

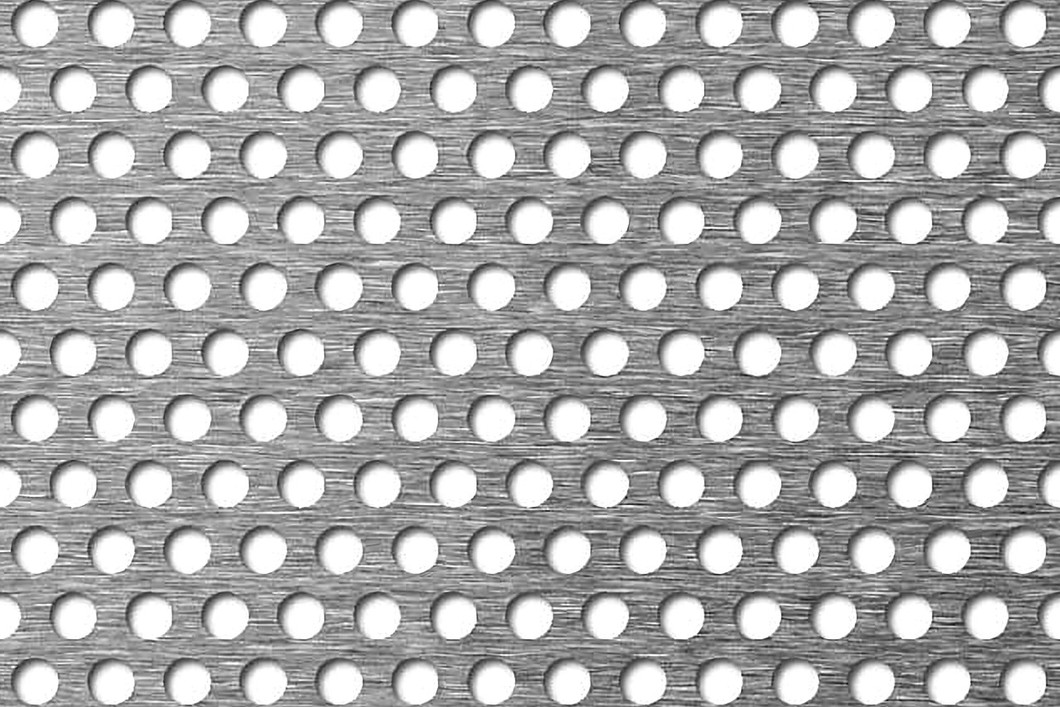

5mm hole 304 stainless steel perforated sheet
R5 T8 is a 5mm round hole perforated sheet in 304 stainless steel, with the holes on an 8mm staggered pitch giving 35% open area. We keep it in stock, in thicknesses from 1 to 3mm.
Also written: R5T8 · 5mm R5 · 5mm hole 8mm pitch · 5mm round hole on 8mm staggered centres
| ThicknessStainless 304, K045S | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.0mm | ✓ In stock | ✓ In stock | 5 to 7 days | 5.2 |
| 1.5mm | ✓ In stock | ✓ In stock | 5 to 7 days | 7.7 |
| 2.0mm | ✓ In stock | ✓ In stock | 5 to 7 days | 10.3 |
| 3.0mm | ✓ In stock | ✓ In stock | 15.5 | |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About R5 T8
R5 T8 is a 5mm round hole perforated sheet in 304 stainless steel, with the holes on an 8mm staggered pitch giving 35% open area. We keep it in stock, in thicknesses from 1 to 3mm.
In stock: 1mm, 1.5mm, 2mm and 3mm in 2m x 1m and 2.5m x 1.25m sheets. Everything else in the table is made to order in 5 to 7 days.
What does R5 T8 mean?
R5 is a 5mm round hole. T8 means the holes sit on an 8mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R5 T8 is marked. See every 304 stainless steel pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–2mm | ✓ In stock |
| R4.5 U15 | 4.5mm round | 15mm square | 7% | 1.5mm | ✓ In stock |
| R5 T7 | 5mm round | 7mm staggered | 46% | 1–2mm | ✓ In stock |
| YOU’RE VIEWINGR5 T8 | 5mm round | 8mm staggered | 35% | 1–3mm | ✓ In stock |
| R6 T8 | 6mm round | 8mm staggered | 51% | 1–2mm | ✓ In stock |
| R6 T9 | 6mm round | 9mm staggered | 40% | 1–3mm | ✓ In stock |
| R8 T12 | 8mm round | 12mm staggered | 40% | 1–3mm | ✓ In stock |
Highlighted where it differs from R5 T8
