8mm Hole Copper Perforated Sheet (R8 T10)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
8mm hole copper perforated sheetR8 T10 hole layout: 8mm round holes, 10mm staggered pitch, 2mm bar, 8.66mm row spacing

R8 T10. 8mm round hole, 10mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

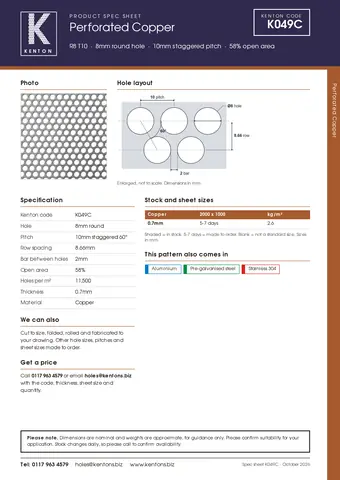

Kenton spec sheet for K049C
R8 T10 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K049C for easy re-ordering.Download spec sheet PDF

Perforated sheet, copper, r8 t10. Kenton code K049C

8mm hole copper perforated sheet

R8 T10 is an 8mm round hole perforated sheet in copper, with the holes on a 10mm staggered pitch giving 58% open area. It’s made to order, usually in 5 to 7 days, in 0.7mm thickness.

Made to order, usually 5 to 7 days
Product specificationThe measurements of R8 T10
Hole8mm round
Pitch10mm staggered 60°
Row spacing8.66mm
Bar between holes2mm
Open area58%
Holes per m²11,500
Thickness0.7mm
MaterialCopper

Also written: R8T10 · 8mm R8 · 8mm hole 10mm pitch · 8mm round hole on 10mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessCopper, K049CSheet size (mm)Weightkg/m²
2000 x 1000
0.7mm5 to 7 days2.6

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

R8 T10 hole layout: 8mm round holes, 10mm staggered pitch, 2mm bar, 8.66mm row spacing

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R8 T10

R8 T10 is an 8mm round hole perforated sheet in copper, with the holes on a 10mm staggered pitch giving 58% open area. It’s made to order, usually in 5 to 7 days, in 0.7mm thickness.

All sizes in the table are made to order, usually in 5 to 7 days.

What does R8 T10 mean?

R8 is an 8mm round hole. T10 means the holes sit on a 10mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

AluminiumPre-galvanised steelStainless 304

Not quite right? Compare similar patterns

Anything different from R8 T10 is marked. See every copper pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R3 T53mm round5mm staggered32%0.6–0.7mm5 to 7 days
R4 T54mm round5mm staggered58%0.6–0.7mm5 to 7 days
R5 T75mm round7mm staggered46%0.6–0.7mm5 to 7 days
YOU’RE VIEWINGR8 T108mm round10mm staggered58%0.7mm5 to 7 days

Highlighted where it differs from R8 T10
