Stock and sheet sizes

Stainless 304K048S	2000 x 1000	2500 x 1250	3000 x 1500	kg/m²
1.0mm	5-7 days	5-7 days	5-7 days	3.4
1.5mm	5-7 days	5-7 days	5-7 days	5.0
2.0mm	5-7 days	5-7 days		6.7

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

Cut to sizewhile you wait

Next working daydelivery on stock sheets

Folded & fabricatedto your drawing

Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579 Email us

Description

Technical details

Hole layout

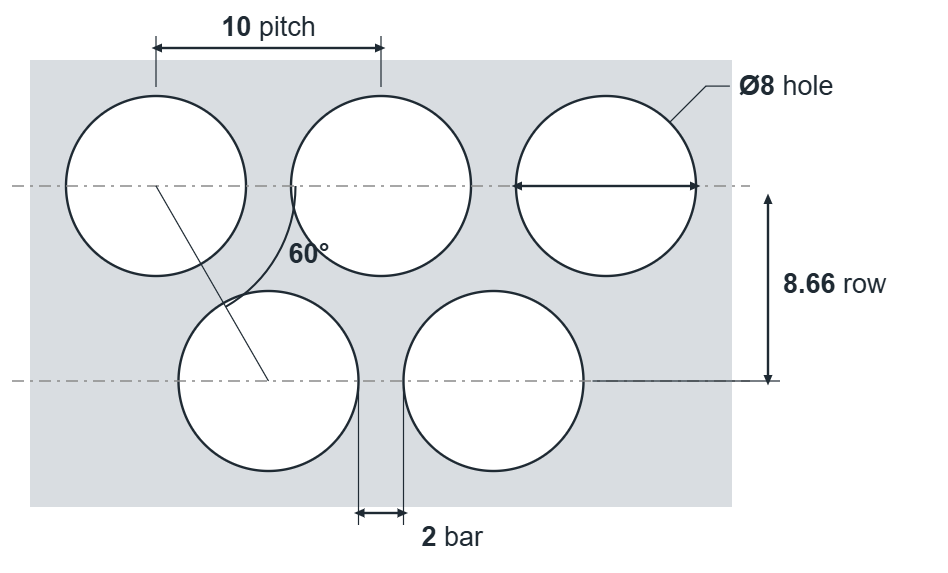

R8 T10 hole layout: 8mm round holes, 10mm staggered pitch, 2mm bar, 8.66mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole: 8mm round
Pitch: 10mm staggered 60°
Row spacing: 8.66mm
Bar between holes: 2mm
Open area: 58%
Holes per m²: 11,500
Thickness: 1–2mm
Material: Stainless 304

Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579 Email your drawing

About R8 T10 304 stainless steel perforated sheet

R8 T10 is an 8mm round hole perforated sheet in 304 stainless steel, with the holes on a 10mm staggered pitch giving 58% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R8 T10 mean?

R8 is an 8mm round hole. T10 means the holes sit on a 10mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Aluminium Pre-galvanised steel Copper

Similar patterns

Pattern	Hole	Pitch	Open area	Thickness	Stock
R7 T10	7mm round	10mm staggered	44%	1–1.5mm	5-7 days
R8 T10This page	8mm round	10mm staggered	58%	1–2mm	5-7 days
R8 T11	8mm round	11mm staggered	48%	1–2mm	✓ In stock
R8 T12	8mm round	12mm staggered	40%	1–3mm	✓ In stock
R10 T12	10mm round	12mm staggered	63%	1–2mm	5-7 days
R10 T13	10mm round	13mm staggered	54%	1mm	✓ In stock
R10 T15	10mm round	15mm staggered	40%	1–4mm	✓ In stock

The nearest 304 stainless steel round hole patterns to R8 T10. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.

Stock orders ship on a next working day delivery !
