R3 T5 hole layout: 3mm round holes, 5mm staggered pitch, 2mm bar, 4.33mm row spacing

R3 T5. 3mm round hole, 5mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

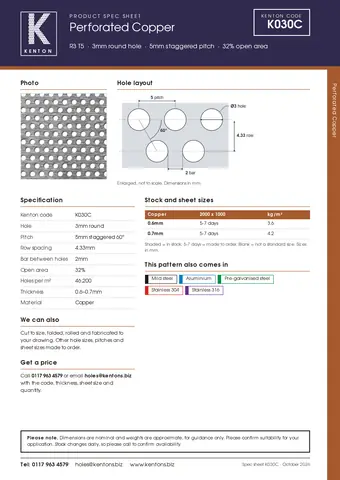

R3 T5 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K030C for easy re-ordering.Download spec sheet PDF

Perforated sheet, copper, r3 t5. Kenton code K030C

3mm hole copper perforated sheet

R3 T5 is a 3mm round hole perforated sheet in copper, with the holes on a 5mm staggered pitch giving 32% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 0.6 to 0.7mm.

Made to order, usually 5 to 7 days

Product specificationThe measurements of R3 T5

Hole3mm round

Pitch5mm staggered 60°

Row spacing4.33mm

Bar between holes2mm

Open area32%

Holes per m²46,200

Thickness0.6–0.7mm

MaterialCopper

Also written: R3T5 · 3mm R3 · 3mm hole 5mm pitch · 3mm round hole on 5mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessCopper, K030C	Sheet size (mm)	Weightkg/m²
ThicknessCopper, K030C	2000 x 1000	Weightkg/m²
0.6mm	5 to 7 days	3.6
0.7mm	5 to 7 days	4.2

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R3 T5

R3 T5 is a 3mm round hole perforated sheet in copper, with the holes on a 5mm staggered pitch giving 32% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 0.6 to 0.7mm.

All sizes in the table are made to order, usually in 5 to 7 days.

What does R3 T5 mean?

R3 is a 3mm round hole. T5 means the holes sit on a 5mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steel Aluminium Pre-galvanised steel Stainless 304 Stainless 316

Not quite right? Compare similar patterns

Anything different from R3 T5 is marked. See every copper pattern, or work out a different pattern

Pattern	Hole	Pitch	Open area	Thickness	Stock
YOU’RE VIEWINGR3 T5	3mm round	5mm staggered	32%	0.6–0.7mm	5 to 7 days
R4 T5	4mm round	5mm staggered	58%	0.6–0.7mm	5 to 7 days
R5 T7	5mm round	7mm staggered	46%	0.6–0.7mm	5 to 7 days
R8 T10	8mm round	10mm staggered	58%	0.7mm	5 to 7 days

Highlighted where it differs from R3 T5
