4 Mesh Woven Wire Mesh, Stainless Steel (KW4)
Description
KW4. 4 mesh wires per inch, 4.85mm aperture.
Weave. Enlarged, not to scale. Dimensions in mm.
Woven wire mesh, plain weave, stainless 316. Kenton code KW4

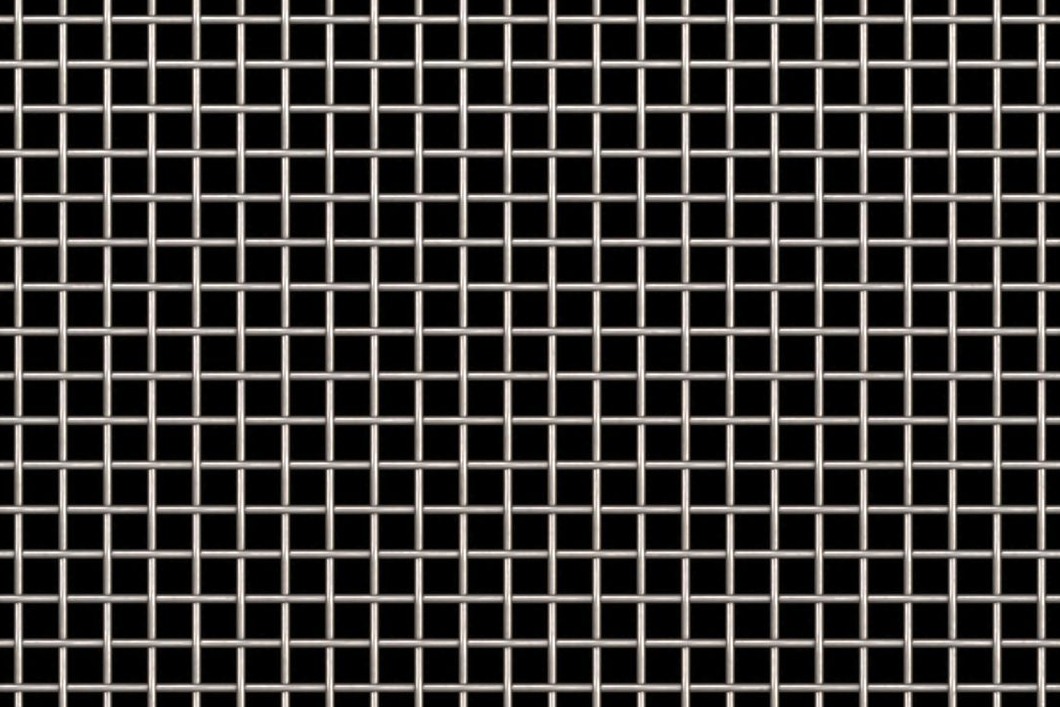

4 mesh woven wire mesh, stainless steel
4 mesh woven wire mesh has 4 wires to every inch in each direction. Our main 4 mesh is 1.5mm wire with a 4.85mm aperture, which gives 58% open area. We also stock 1.6mm wire with a 4.75mm aperture (56% open). We keep it in stainless steel 316, in full 2440 x 1220mm sheets. Stock sheets go out on next working day delivery anywhere in the UK.
| WireKW4 | Material | Supplied as | Stock |
|---|---|---|---|
| 1.5mm wire4.85mm aperture, 58% open | Stainless 316 | Sheet, 2440 x 1220mm | ✓ In stock |
| 1.6mm wire4.75mm aperture, 56% open | Stainless 316 | Sheet, 2440 x 1220mm | ✓ In stock |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the wire and grade
Each option is a wire size and grade we keep in stock.
How it comes
Supplied as full sheets.
How many?
You’re asking for
Need a different size? Tell us on the form, or call 0117 963 4579.

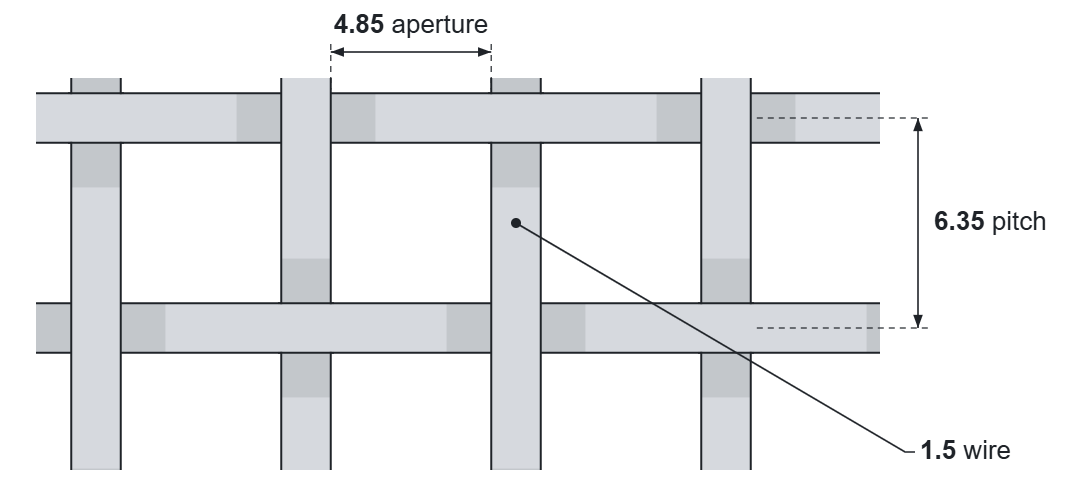

Weave
Enlarged, not to scale. Dimensions in mm.
About KW4
4 mesh woven wire mesh has 4 wires to every inch in each direction. Our main 4 mesh is 1.5mm wire with a 4.85mm aperture, which gives 58% open area. We also stock 1.6mm wire with a 4.75mm aperture (56% open). We keep it in stainless steel 316, in full 2440 x 1220mm sheets. Stock sheets go out on next working day delivery anywhere in the UK.
What does mesh count mean?
Mesh count is the number of wires in one inch (25.4mm), so 4 mesh has a pitch of 6.35mm from the centre of one wire to the next. The aperture is the clear gap between the wires: the pitch less the wire diameter.
Sheets
4 mesh is stocked in full 2440 x 1220mm sheets.
Not quite right? Compare similar sizes
Anything different from KW4 is marked. See all woven wire mesh
| Mesh | Aperture | Wire | Open area | Material | Supplied as | Stock |
|---|---|---|---|---|---|---|
| 2 mesh | 11.1mm | 1.6mm | 76% | Stainless 304 & 316 | Sheet | ✓ In stock |
| YOU’RE VIEWING4 mesh | 4.85mm | 1.5mm | 58% | Stainless 316 | Sheet | ✓ In stock |
| 6 mesh | 3.03mm | 1.2mm | 51% | Stainless 316 | Sheet | ✓ In stock |
| 10 mesh | 1.98mm | 0.56mm | 61% | Stainless 304 & 316 | Roll | ✓ In stock |
| 16 mesh | 1.23mm | 0.35mm | 61% | Stainless 316 & aluminium | Roll | ✓ In stock |
| 20 mesh | 0.97mm | 0.3mm | 58% | Stainless 304 & 316 | Roll | ✓ In stock |
| 30 mesh | 0.64mm | 0.21mm | 57% | Stainless 304 & 316 | Roll | ✓ In stock |
Highlighted where it differs from KW4
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
