6 Mesh Woven Wire Mesh, Stainless Steel (KW6)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
6 mesh woven wire mesh, stainless steel6 mesh woven wire weave: 3.03mm aperture, 1.2mm wire, 4.233mm pitch

KW6. 6 mesh wires per inch, 3.03mm aperture.

Weave. Enlarged, not to scale. Dimensions in mm.

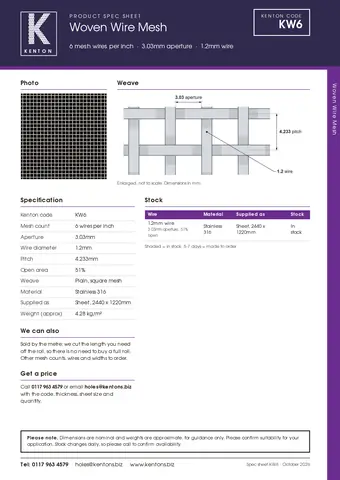

Kenton spec sheet for KW6
KW6 spec sheetOne A4 page with the specification, sizes and a drawing. Our code KW6 for easy re-ordering.Download spec sheet PDF

Woven wire mesh, plain weave, stainless 316. Kenton code KW6

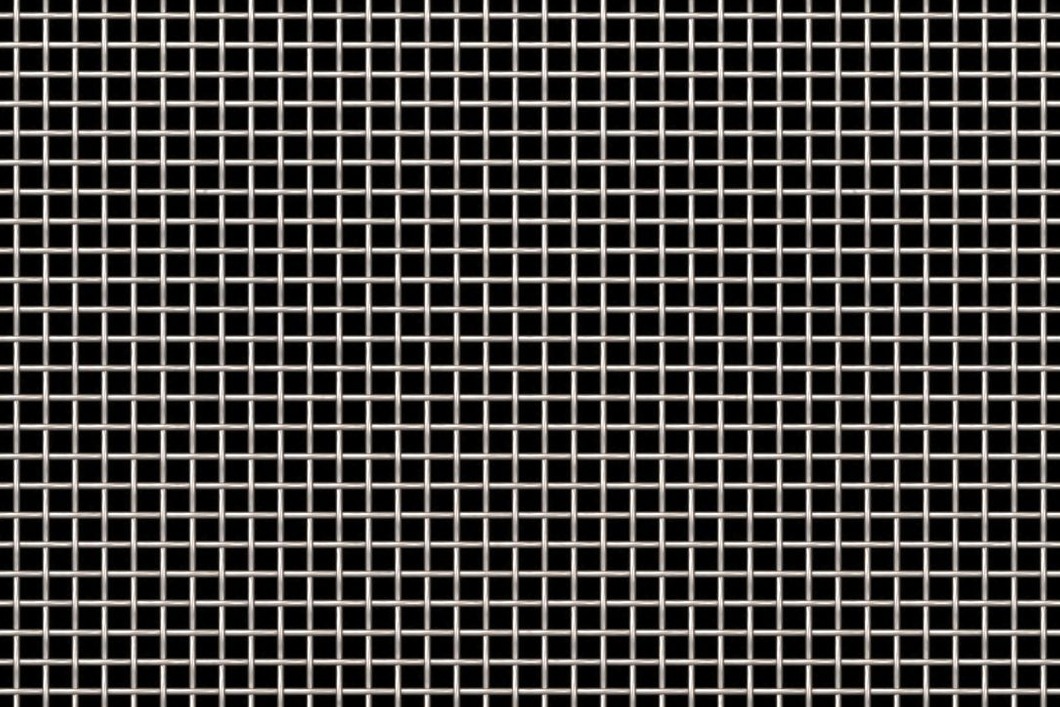

6 mesh woven wire mesh, stainless steel

6 mesh woven wire mesh has 6 wires to every inch in each direction. Our main 6 mesh is 1.2mm wire with a 3.03mm aperture, which gives 51% open area. We keep it in stainless steel 316, in full 2440 x 1220mm sheets. Stock sheets go out on next working day delivery anywhere in the UK.

In stock, next working day delivery
Product specificationThe measurements of KW6
Mesh count6 wires per inch
Aperture3.03mm
Wire diameter1.2mm
Pitch4.233mm
Open area51%
WeavePlain, square mesh
MaterialStainless 316
Supplied asSheet, 2440 x 1220mm
Weight (approx)4.28 kg/m²
StockPress In stock to price it
WireKW6MaterialSupplied asStock
1.2mm wire3.03mm aperture, 51% openStainless 316Sheet, 2440 x 1220mm✓ In stock

✓ In stock on the shelf, ready to send; 5 to 7 days made to order

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the wire and grade

Each option is a wire size and grade we keep in stock.

2

How it comes

Supplied as full sheets.

3

How many?

You’re asking for

Get a price →

Need a different size? Tell us on the form, or call 0117 963 4579.

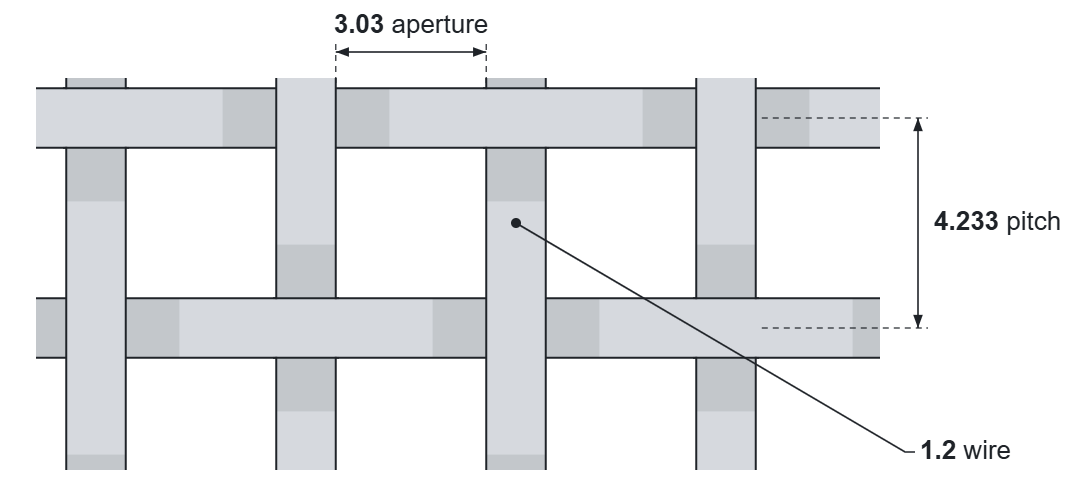

Weave

6 mesh woven wire weave: 3.03mm aperture, 1.2mm wire, 4.233mm pitch

Enlarged, not to scale. Dimensions in mm.

Need a price on sheets?Tell us the grade and how many sheets you need and we will come back to you with a price.Ask for a price

About KW6

6 mesh woven wire mesh has 6 wires to every inch in each direction. Our main 6 mesh is 1.2mm wire with a 3.03mm aperture, which gives 51% open area. We keep it in stainless steel 316, in full 2440 x 1220mm sheets. Stock sheets go out on next working day delivery anywhere in the UK.

What does mesh count mean?

Mesh count is the number of wires in one inch (25.4mm), so 6 mesh has a pitch of 4.233mm from the centre of one wire to the next. The aperture is the clear gap between the wires: the pitch less the wire diameter.

Sheets

6 mesh is stocked in full 2440 x 1220mm sheets.

Not quite right? Compare similar sizes

Anything different from KW6 is marked. See all woven wire mesh

MeshApertureWireOpen areaMaterialSupplied asStock
2 mesh11.1mm1.6mm76%Stainless 304 & 316Sheet✓ In stock
4 mesh4.85mm1.5mm58%Stainless 316Sheet✓ In stock
YOU’RE VIEWING6 mesh3.03mm1.2mm51%Stainless 316Sheet✓ In stock
10 mesh1.98mm0.56mm61%Stainless 304 & 316Roll✓ In stock
16 mesh1.23mm0.35mm61%Stainless 316 & aluminiumRoll✓ In stock
20 mesh0.97mm0.3mm58%Stainless 304 & 316Roll✓ In stock
30 mesh0.64mm0.21mm57%Stainless 304 & 316Roll✓ In stock

Highlighted where it differs from KW6
