100 Mesh Woven Wire Mesh, Stainless Steel (KW100)
Description
KW100. 100 mesh wires per inch, 0.154mm aperture.

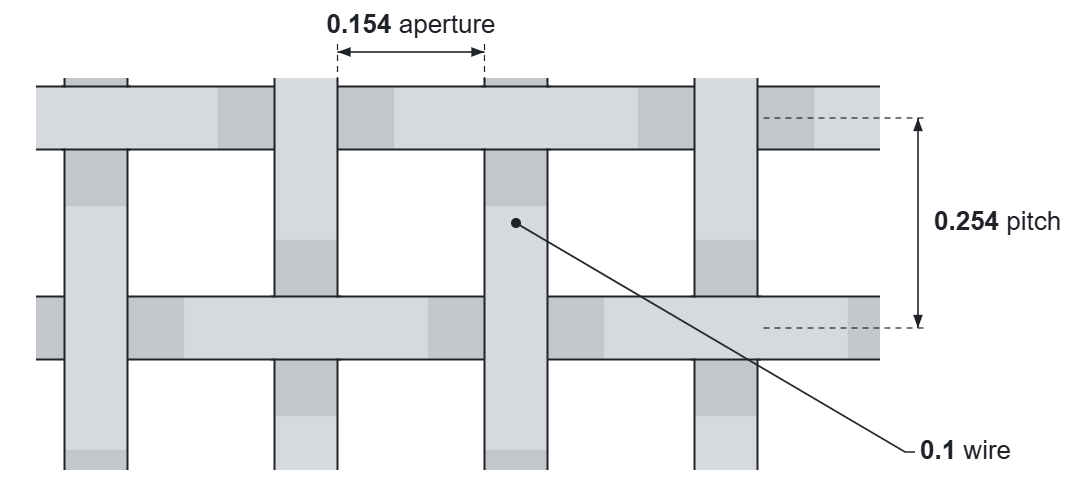

Weave. Enlarged, not to scale. Dimensions in mm.
Woven wire mesh, plain weave, stainless 316. Kenton code KW100

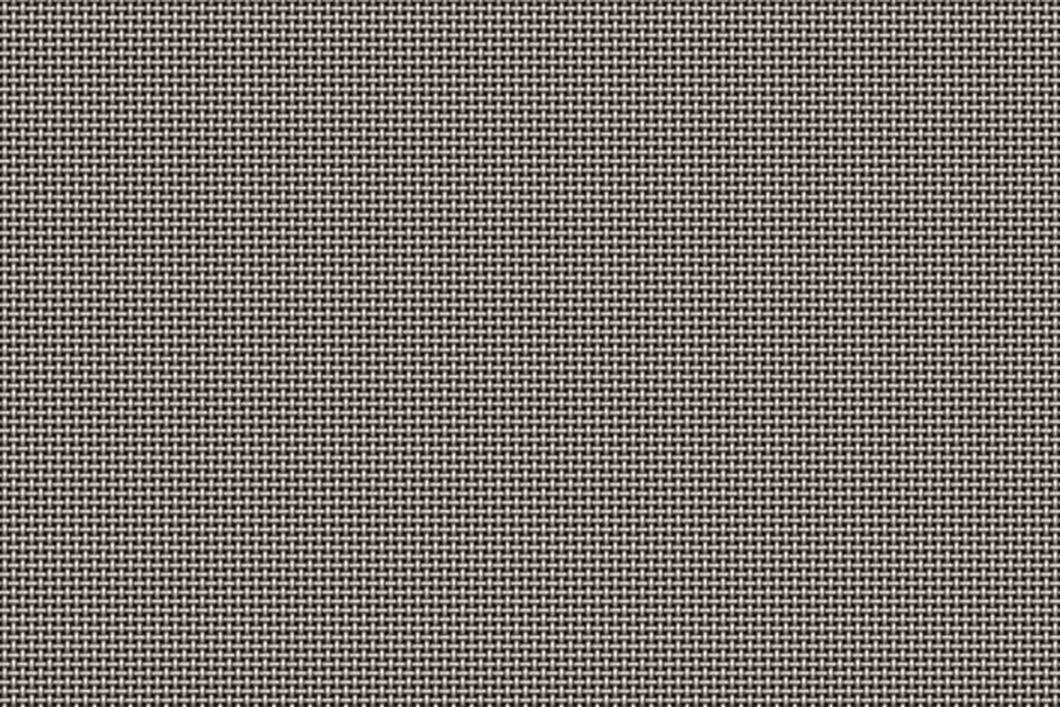

100 mesh woven wire mesh, stainless steel
100 mesh woven wire mesh has 100 wires to every inch in each direction. Our main 100 mesh is 0.1mm wire with a 0.154mm aperture, which gives 37% open area. We keep it in stainless steel 316, in rolls (1220mm wide). We cut lengths off the roll, and stock mesh goes out on next working day delivery anywhere in the UK.
Sold by the metre. We cut the length you need off the roll, so there’s no need to buy a full roll.
| WireKW100 | Material | Supplied as | Stock |
|---|---|---|---|
| 0.1mm wire0.154mm aperture, 37% open | Stainless 316 | Roll, 1220mm wideSold by the metre | ✓ In stock |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the wire and grade
Each option is a wire size and grade we keep in stock.
Sold by the metre
No need to buy a full roll. We cut the length you need off the roll.
How many?
You’re asking for
Want a full roll instead? Just say on the form, or call 0117 963 4579.
Weave
Enlarged, not to scale. Dimensions in mm.
About KW100
100 mesh woven wire mesh has 100 wires to every inch in each direction. Our main 100 mesh is 0.1mm wire with a 0.154mm aperture, which gives 37% open area. We keep it in stainless steel 316, in rolls (1220mm wide). We cut lengths off the roll, and stock mesh goes out on next working day delivery anywhere in the UK.
What does mesh count mean?
Mesh count is the number of wires in one inch (25.4mm), so 100 mesh has a pitch of 0.254mm from the centre of one wire to the next. The aperture is the clear gap between the wires: the pitch less the wire diameter.
Rolls
100 mesh is stocked on the roll. We cut it to the length you need or supply full rolls, so just tell us the width and length when you ask for a price.
Not quite right? Compare similar sizes
Anything different from KW100 is marked. See all woven wire mesh
| Mesh | Aperture | Wire | Open area | Material | Supplied as | Stock |
|---|---|---|---|---|---|---|
| 10 mesh | 1.98mm | 0.56mm | 61% | Stainless 304 & 316 | Roll | ✓ In stock |
| 16 mesh | 1.23mm | 0.35mm | 61% | Stainless 316 & aluminium | Roll | ✓ In stock |
| 20 mesh | 0.97mm | 0.3mm | 58% | Stainless 304 & 316 | Roll | ✓ In stock |
| 30 mesh | 0.64mm | 0.21mm | 57% | Stainless 304 & 316 | Roll | ✓ In stock |
| 60 mesh | 0.26mm | 0.16mm | 38% | Stainless 316 | Roll | ✓ In stock |
| 80 mesh | 0.2mm | 0.12mm | 39% | Stainless 304 | Roll | ✓ In stock |
| YOU’RE VIEWING100 mesh | 0.154mm | 0.1mm | 37% | Stainless 316 | Roll | ✓ In stock |
Highlighted where it differs from KW100
