80 Mesh Woven Wire Mesh, Stainless Steel (KW80)
Description
KW80. 80 mesh wires per inch, 0.2mm aperture.
Weave. Enlarged, not to scale. Dimensions in mm.
Woven wire mesh, plain weave, stainless 304. Kenton code KW80

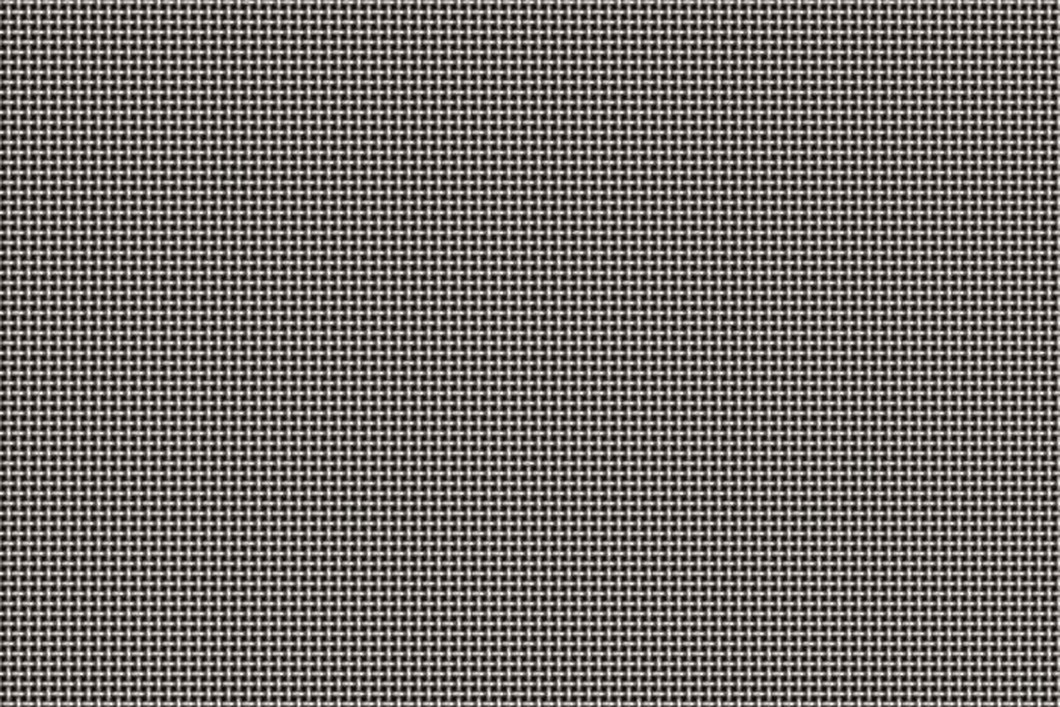

80 mesh woven wire mesh, stainless steel
80 mesh woven wire mesh has 80 wires to every inch in each direction. Our main 80 mesh is 0.12mm wire with a 0.2mm aperture, which gives 39% open area. We keep it in stainless steel 304, in rolls (1220mm wide). We cut lengths off the roll, and stock mesh goes out on next working day delivery anywhere in the UK.
Sold by the metre. We cut the length you need off the roll, so there’s no need to buy a full roll.
| WireKW80 | Material | Supplied as | Stock |
|---|---|---|---|
| 0.12mm wire0.2mm aperture, 39% open | Stainless 304 | Roll, 1220mm wideSold by the metre | ✓ In stock |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the wire and grade
Each option is a wire size and grade we keep in stock.
Sold by the metre
No need to buy a full roll. We cut the length you need off the roll.
How many?
You’re asking for
Want a full roll instead? Just say on the form, or call 0117 963 4579.

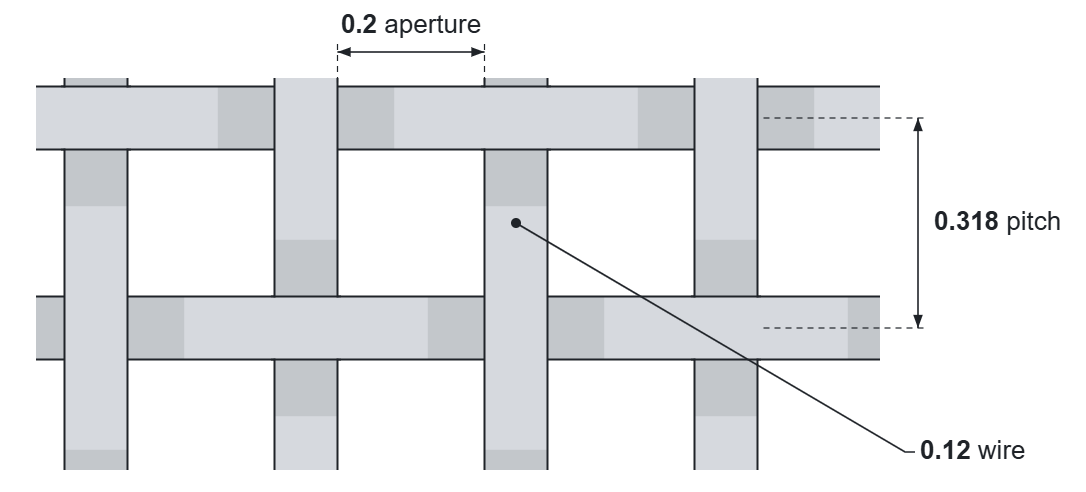

Weave
Enlarged, not to scale. Dimensions in mm.
About KW80
80 mesh woven wire mesh has 80 wires to every inch in each direction. Our main 80 mesh is 0.12mm wire with a 0.2mm aperture, which gives 39% open area. We keep it in stainless steel 304, in rolls (1220mm wide). We cut lengths off the roll, and stock mesh goes out on next working day delivery anywhere in the UK.
What does mesh count mean?
Mesh count is the number of wires in one inch (25.4mm), so 80 mesh has a pitch of 0.318mm from the centre of one wire to the next. The aperture is the clear gap between the wires: the pitch less the wire diameter.
Rolls
80 mesh is stocked on the roll. We cut it to the length you need or supply full rolls, so just tell us the width and length when you ask for a price.
Not quite right? Compare similar sizes
Anything different from KW80 is marked. See all woven wire mesh
| Mesh | Aperture | Wire | Open area | Material | Supplied as | Stock |
|---|---|---|---|---|---|---|
| 10 mesh | 1.98mm | 0.56mm | 61% | Stainless 304 & 316 | Roll | ✓ In stock |
| 16 mesh | 1.23mm | 0.35mm | 61% | Stainless 316 & aluminium | Roll | ✓ In stock |
| 20 mesh | 0.97mm | 0.3mm | 58% | Stainless 304 & 316 | Roll | ✓ In stock |
| 30 mesh | 0.64mm | 0.21mm | 57% | Stainless 304 & 316 | Roll | ✓ In stock |
| 60 mesh | 0.26mm | 0.16mm | 38% | Stainless 316 | Roll | ✓ In stock |
| YOU’RE VIEWING80 mesh | 0.2mm | 0.12mm | 39% | Stainless 304 | Roll | ✓ In stock |
| 100 mesh | 0.154mm | 0.1mm | 37% | Stainless 316 | Roll | ✓ In stock |
Highlighted where it differs from KW80
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
