61 x 25.4mm Raised Expanded Metal, Mild Steel (6240M)
Description
6240M. 61 x 25.4mm diamond (LWD x SWD), 6.1mm strand.
Diamond pattern. Enlarged, not to scale. Dimensions in mm.
Expanded metal, raised, mild steel. Kenton code 6240M

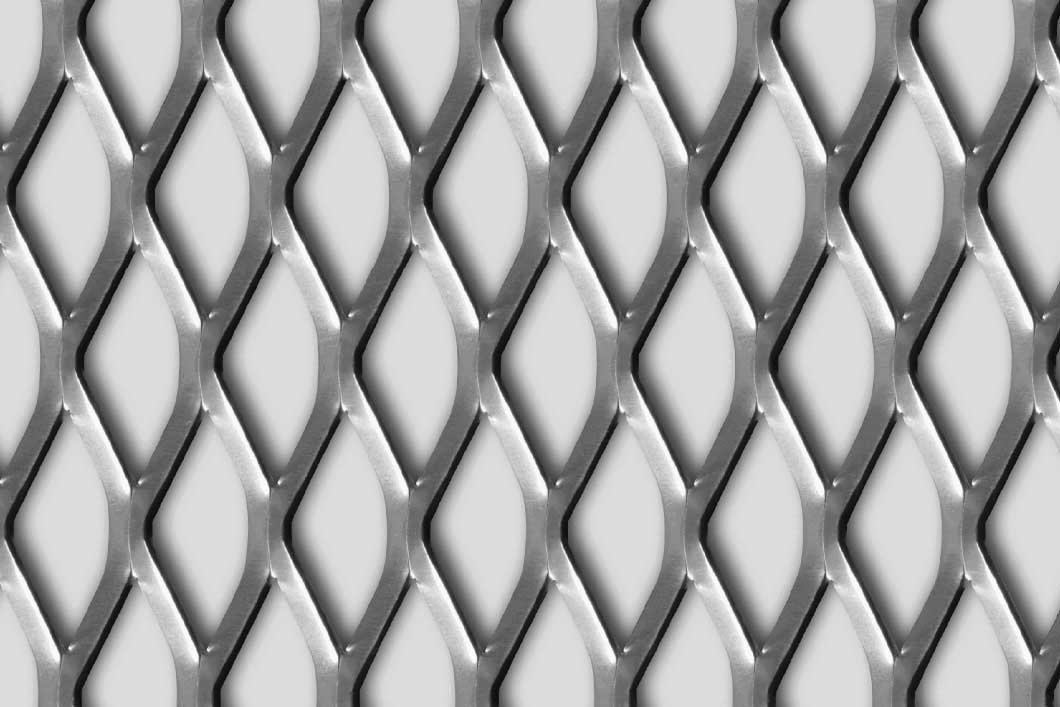

61 x 25.4mm raised expanded metal, mild steel
6240M is raised expanded mild steel with a 61 x 25.4mm diamond and 6.1mm strands, giving 55% open area. We keep it in stock, 4.5mm thick, in 2440 x 1220mm sheets.
| ThicknessMild steel, 6240M | Sheet size (mm) |
|---|---|
| 2440 x 1220 | |
| 4.5mm | ✓ In stock |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

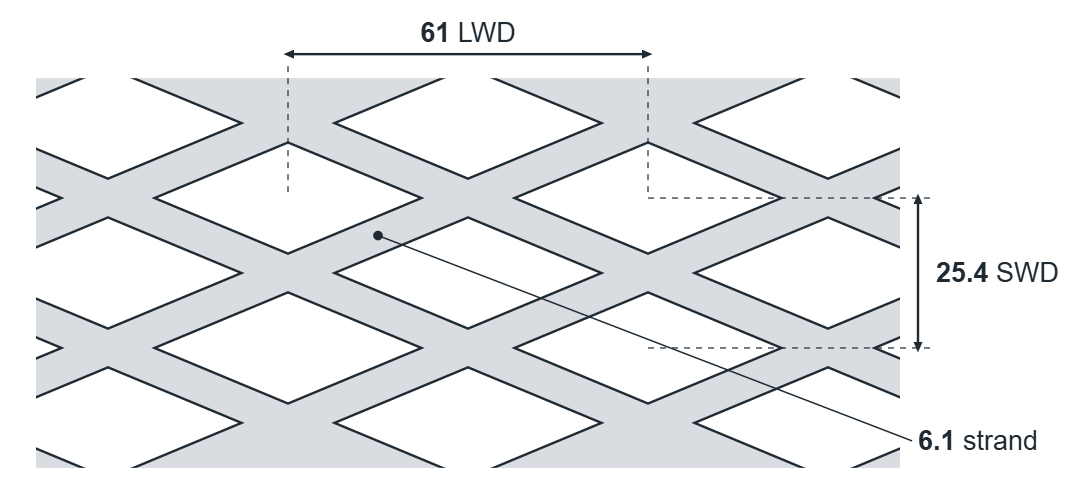

Diamond pattern
Enlarged, not to scale. Dimensions in mm.
About 6240M
6240M is raised expanded mild steel with a 61 x 25.4mm diamond and 6.1mm strands, giving 55% open area. We keep it in stock, 4.5mm thick, in 2440 x 1220mm sheets.
Flattened or raised?
Raised expanded metal is left as it comes off the expanding press, so the strands sit at an angle to the sheet. Flattened expanded metal is rolled after expanding, so the strands lie flat and the sheet has a smooth surface. 6240M is raised.
What do LWD and SWD mean?
LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.
Not quite right? Compare similar sizes
Anything different from 6240M is marked. See every expanded mild steel sheet
| Code | Diamond | Strand | Thickness | Material | Finish | Stock |
|---|---|---|---|---|---|---|
| 3815S | 38.1 x 16.5mm | 1.91mm | 1.5mm | Stainless 304 | Raised | ✓ In stock |
| 3812A | 38.1 x 16.9mm | 2.31mm | 1.2mm | Aluminium | Raised | ✓ In stock |
| 5230MF | 39.1 x 18.3mm | 4.72mm | 2.74mm | Mild steel | Flattened | ✓ In stock |
| 5230AF | 40.6 x 17.8mm | 4.04mm | 3mm | Aluminium | Flattened | ✓ In stock |
| 5230M | 50.8 x 22.6mm | 3.12mm | 3mm | Mild steel | Raised | ✓ In stock |
| YOU’RE VIEWING6240M | 61 x 25.4mm | 6.1mm | 4.5mm | Mild steel | Raised | ✓ In stock |
| 7630M | 76.2 x 33.9mm | 3.58mm | 3mm | Mild steel | Raised | ✓ In stock |
Highlighted where it differs from 6240M
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
