7mm Square Hole Mild Steel Perforated Sheet (C7 U10)
Perforated sheetMild steelKenton code K118M
Stock and sheet sizes
| Mild steelK118M | 2000 x 1000 | 2500 x 1250 | kg/m² |
|---|---|---|---|
| 1.0mm | 5-7 days | 5-7 days | 4.0 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

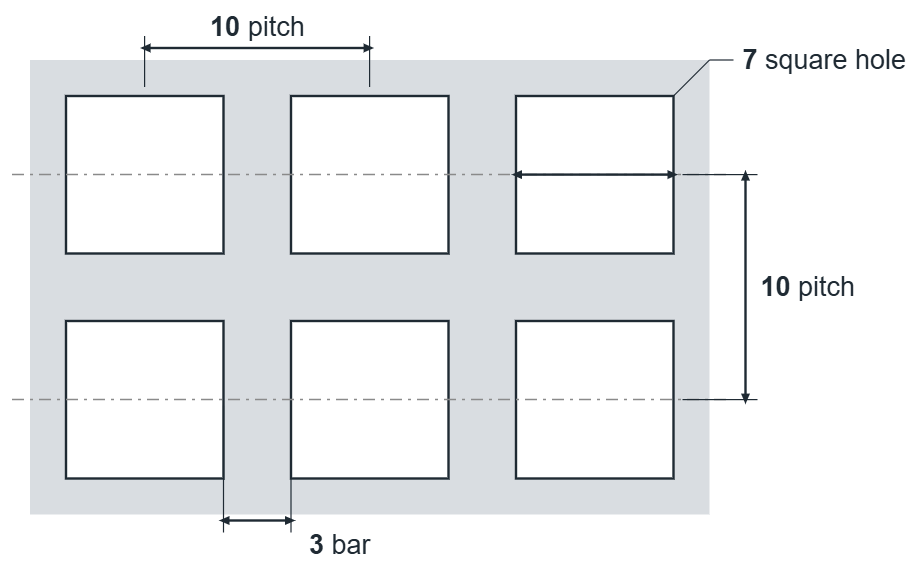

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 7mm square
- Pitch
- 10mm in-line
- Bar between holes
- 3mm
- Open area
- 49%
- Holes per m²
- 10,000
- Thickness
- 1mm
- Material
- Mild steel
About C7 U10 mild steel perforated sheet
C7 U10 is a 7mm square hole perforated sheet in mild steel, with the holes on a 10mm in-line pitch giving 49% open area. It’s made to order, usually in 5-7 days, in 1mm thickness. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
All sizes in the table are made to order, usually in 5-7 days.
What does C7 U10 mean?
C7 is a 7mm square hole. U10 means the holes sit on a 10mm in-line pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C6 U9 | 6mm square | 9mm in-line | 44% | 1–2mm | ✓ In stock |
| C7 U10This page | 7mm square | 10mm in-line | 49% | 1mm | 5-7 days |
| C8 U10 | 8mm square | 10mm in-line | 64% | 1–2mm | ✓ In stock |
| C8 U11 | 8mm square | 11mm in-line | 53% | 1–2mm | 5-7 days |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1–3mm | ✓ In stock |
| C8 U16 | 8mm square | 16mm in-line | 25% | 1–3mm | 5-7 days |
| C9.5 U13.33 | 9.5mm square | 13.33mm in-line | 51% | 1.5–2mm | 5-7 days |
The nearest mild steel square hole patterns to C7 U10. See every mild steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
