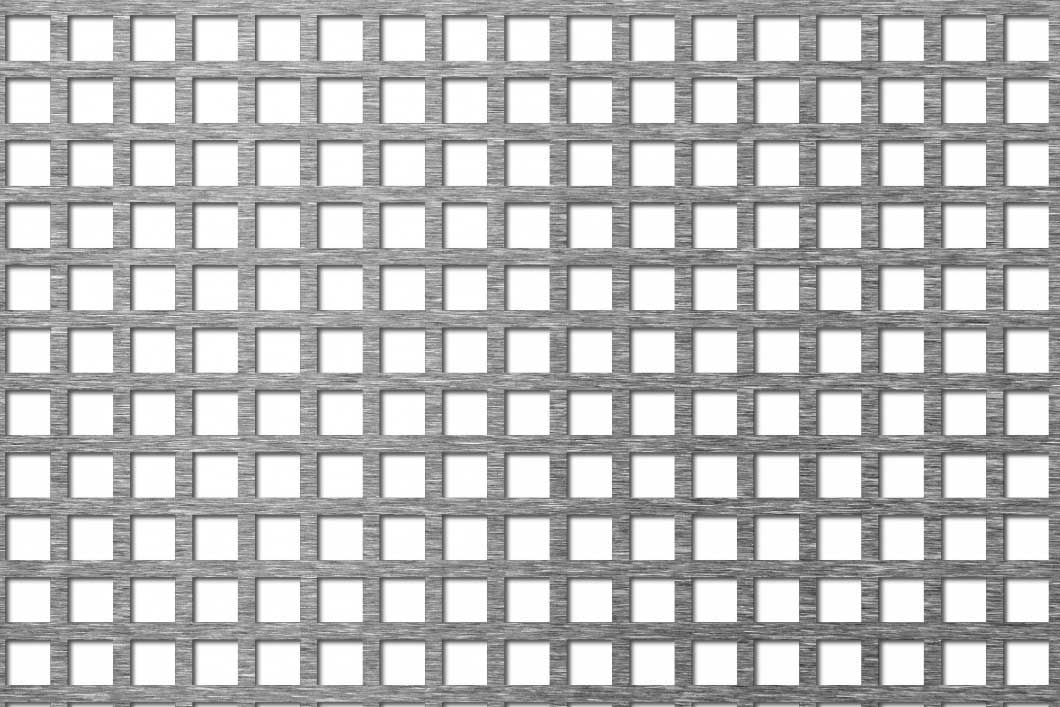

8mm Square Hole Mild Steel Perforated Sheet (C8 U11)

Perforated sheetMild steelKenton code K123M

8mmSquare hole
11mmIn-line pitch
53%Open area
1–2mmThickness

Stock and sheet sizes

Mild steelK123M 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 3.7
1.5mm 5-7 days 5-7 days 5-7 days 5.5
2.0mm 5-7 days 5-7 days 5-7 days 7.4

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

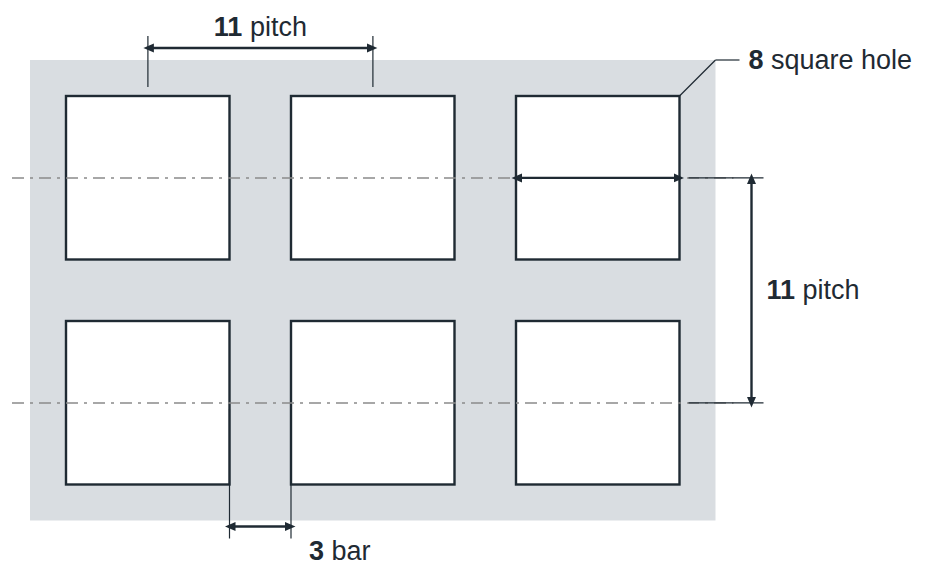

C8 U11 hole layout: 8mm square holes, 11mm in-line pitch, 3mm bar

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
8mm square
Pitch
11mm in-line
Bar between holes
3mm
Open area
53%
Holes per m²
8,260
Thickness
1–2mm
Material
Mild steel
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About C8 U11 mild steel perforated sheet

C8 U11 is an 8mm square hole perforated sheet in mild steel, with the holes on an 11mm in-line pitch giving 53% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does C8 U11 mean?

C8 is an 8mm square hole. U11 means the holes sit on an 11mm in-line pitch, measured centre to centre.

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
C7 U10 7mm square 10mm in-line 49% 1mm 5-7 days
C8 U10 8mm square 10mm in-line 64% 1–2mm ✓ In stock
C8 U11This page 8mm square 11mm in-line 53% 1–2mm 5-7 days
C8 U12 8mm square 12mm in-line 44% 1–3mm ✓ In stock
C8 U16 8mm square 16mm in-line 25% 1–3mm 5-7 days
C8 U24 8mm square 24mm in-line 11% 1–3mm 5-7 days
C9.5 U13.33 9.5mm square 13.33mm in-line 51% 1.5–2mm 5-7 days

The nearest mild steel square hole patterns to C8 U11. See every mild steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
