C8 U16 perforated sheet: 8mm square holes on 16mm in-line pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

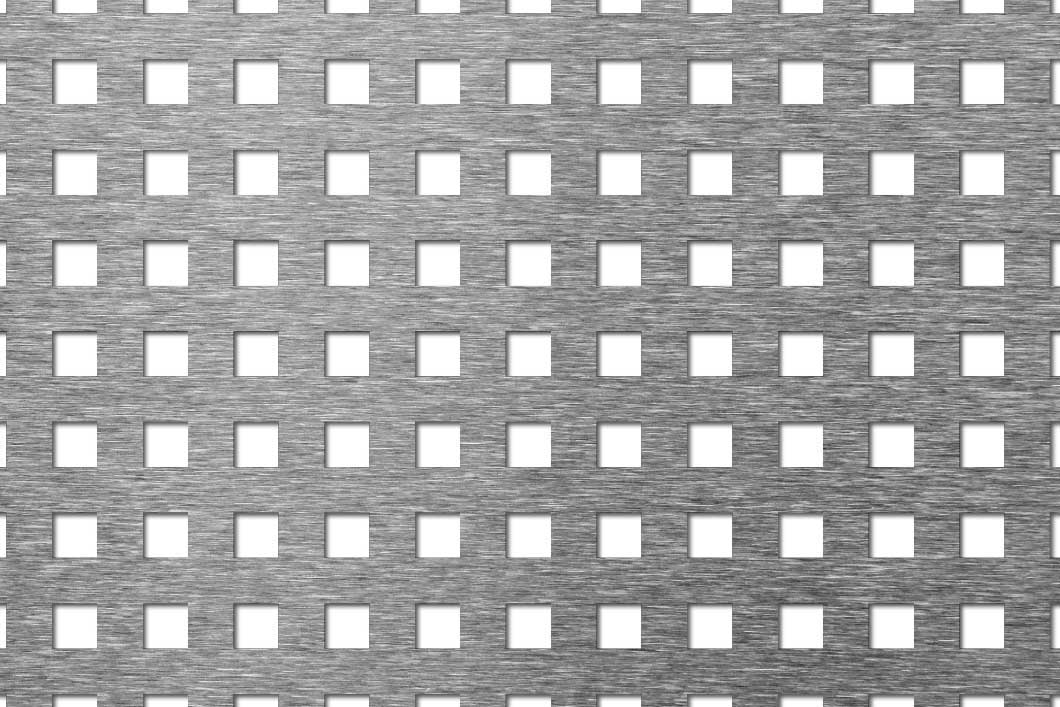

8mm Square Hole Mild Steel Perforated Sheet (C8 U16)

Perforated sheetMild steelKenton code K126M

8mmSquare hole
16mmIn-line pitch
25%Open area
1–3mmThickness

Stock and sheet sizes

Mild steelK126M 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 5.9
1.5mm 5-7 days 5-7 days 5-7 days 8.8
2.0mm 5-7 days 5-7 days 5-7 days 11.8
3.0mm 5-7 days 5-7 days 5-7 days 17.7

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

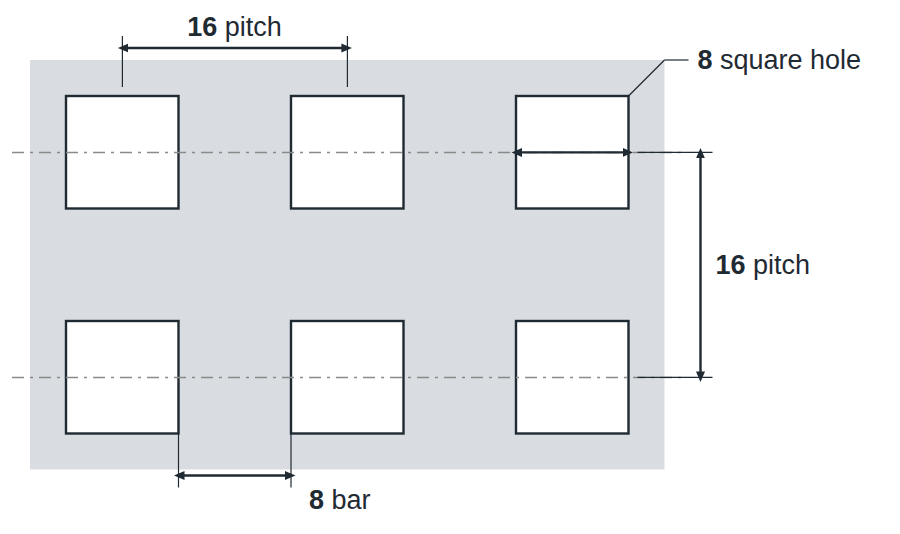

C8 U16 hole layout: 8mm square holes, 16mm in-line pitch, 8mm bar

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
8mm square
Pitch
16mm in-line
Bar between holes
8mm
Open area
25%
Holes per m²
3,910
Thickness
1–3mm
Material
Mild steel
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About C8 U16 mild steel perforated sheet

C8 U16 is an 8mm square hole perforated sheet in mild steel, with the holes on a 16mm in-line pitch giving 25% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 3mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does C8 U16 mean?

C8 is an 8mm square hole. U16 means the holes sit on a 16mm in-line pitch, measured centre to centre.

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
C8 U10 8mm square 10mm in-line 64% 1–2mm ✓ In stock
C8 U11 8mm square 11mm in-line 53% 1–2mm 5-7 days
C8 U12 8mm square 12mm in-line 44% 1–3mm ✓ In stock
C8 U16This page 8mm square 16mm in-line 25% 1–3mm 5-7 days
C8 U24 8mm square 24mm in-line 11% 1–3mm 5-7 days
C9.2 U34 9.2mm square 34mm in-line 7% 1–2mm 5-7 days
C10 U20 10mm square 20mm in-line 25% 1–3mm 5-7 days

The nearest mild steel square hole patterns to C8 U16. See every mild steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
