12 x 6mm Pre-Galvanised Steel Expanded Metal, 2mm Strand

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
12 x 6mm pre-galvanised steel expanded metal, 2mm strandExpanded metal diamond: 12mm LWD, 6mm SWD, 2mm strand

12 x 6mm. 12 x 6mm diamond (LWD x SWD), 2mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for 12 x 6mm pre-galvanised steel expanded metal, 2mm strand
12 x 6mm spec sheetOne A4 page with the specification, sizes and a drawing.Download spec sheet PDF

Expanded metal, made to order, pre-galvanised, 12 x 6mm. 12 x 6mm

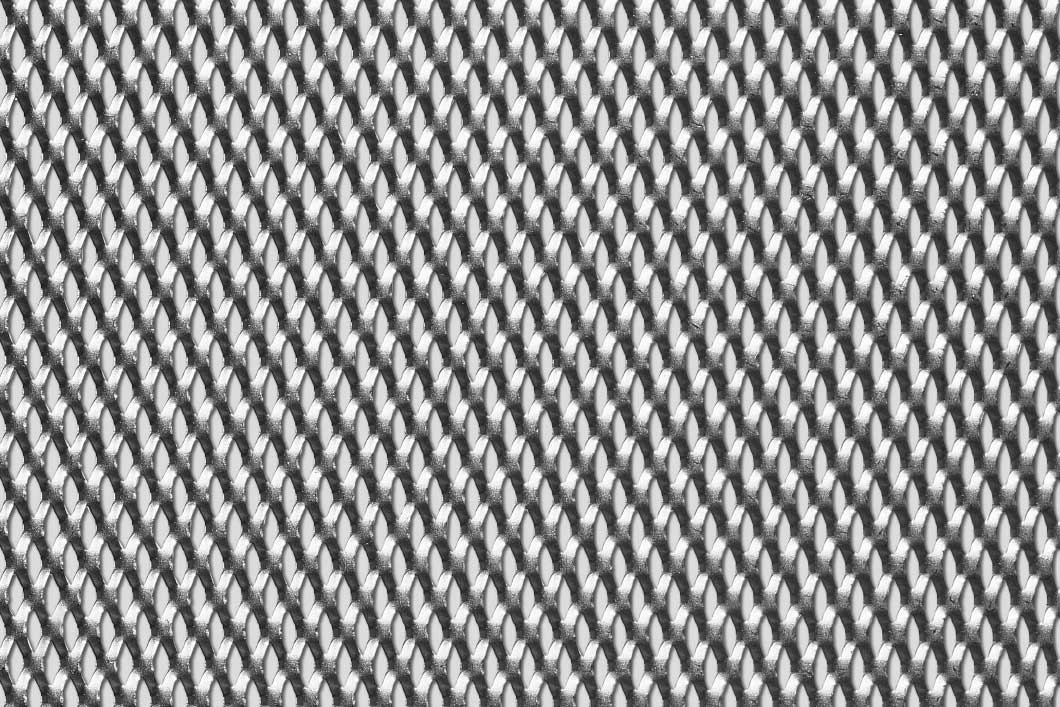

12 x 6mm pre-galvanised steel expanded metal, 2mm strand

Expanded pre-galvanised steel with a 12 x 6mm diamond and 2mm strands, giving 33% open area. It’s made to order in approximately 5 to 7 days, in 1 and 1.5mm thick.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of 12 x 6mm
Long way of diamond (LWD)12mm
Short way of diamond (SWD)6mm
Strand width2mm
Open area33%
Thickness1–1.5mm
MaterialPre-galvanised
Sheet sizes2000 x 1000, 2500 x 1250, 3000 x 1500mm
Lead timeMade to order, approximately 5 to 7 days
Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessPre-galvanised, Made to orderSheet size (mm)
Any standard size
1mm5 to 7 days
1.5mm5 to 7 days

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

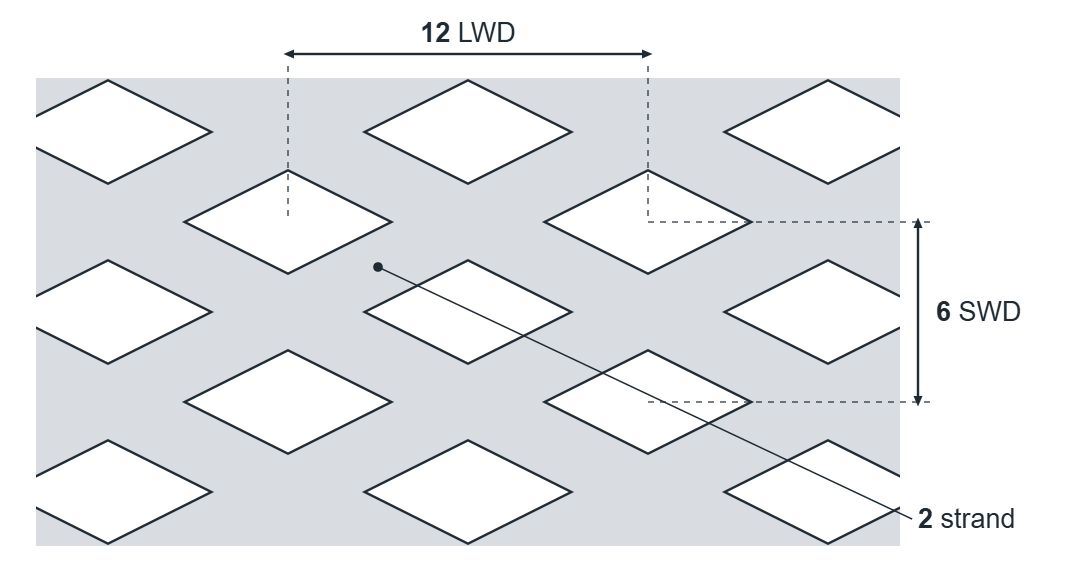

Diamond pattern

Expanded metal diamond: 12mm LWD, 6mm SWD, 2mm strand

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?Once it’s here we cut sheets to size, and fold and fabricate panels, guards and walkways to your drawing.Ask for a price

About 12 x 6mm

Expanded pre-galvanised steel with a 12 x 6mm diamond and 2mm strands, giving 33% open area. It’s made to order in approximately 5 to 7 days, in 1 and 1.5mm thick.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Also comes in

Mild steelAluminium

Not quite right? Compare similar sizes

Anything different from 12 x 6mm is marked. See every expanded pre-galvanised steel sheet, or work out a different size

MeshDiamondStrandThicknessStock
8 x 48 x 4mm1mm1mm5 to 7 days
8055G8 x 6mm1.25mm0.7mm✓ In stock
10 x 610 x 6mm1mm1mm5 to 7 days
YOU’RE VIEWING12 x 612 x 6mm2mm1–1.5mm5 to 7 days
16 x 816 x 8mm1.5mm1–1.5mm5 to 7 days
20 x 1020 x 10mm2mm1–2mm5 to 7 days
20 x 1520 x 15mm1.5mm1.5mm5 to 7 days

Highlighted where it differs from 12 x 6mm
