16 x 8mm Pre-Galvanised Steel Expanded Metal, 1.5mm Strand

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz

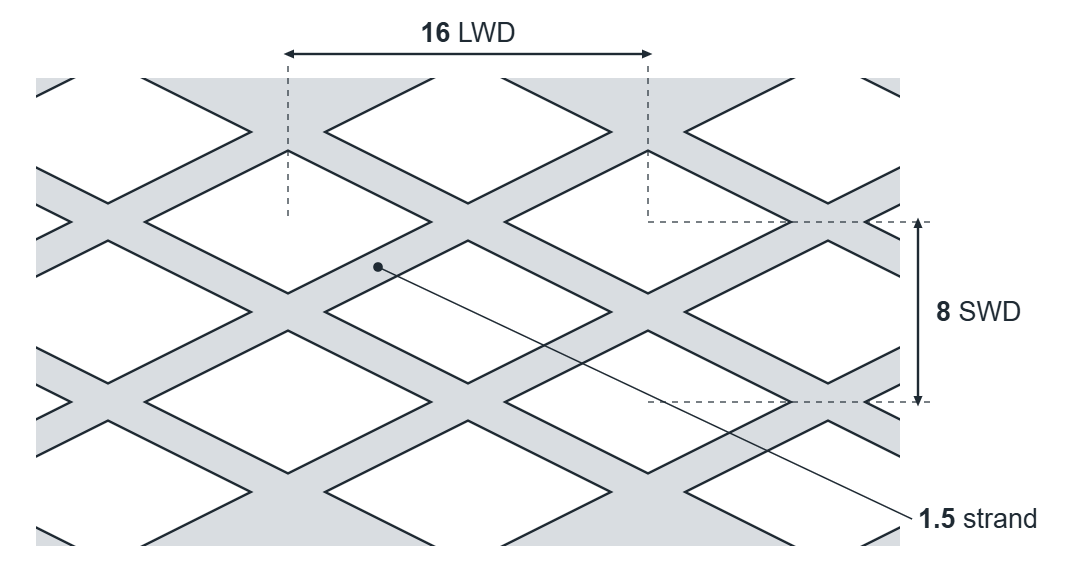

16 x 8mm pre-galvanised steel expanded metal, 1.5mm strandExpanded metal diamond: 16mm LWD, 8mm SWD, 1.5mm strand

16 x 8mm. 16 x 8mm diamond (LWD x SWD), 1.5mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for 16 x 8mm pre-galvanised steel expanded metal, 1.5mm strand
16 x 8mm spec sheetOne A4 page with the specification, sizes and a drawing.Download spec sheet PDF

Expanded metal, made to order, pre-galvanised, 16 x 8mm. 16 x 8mm

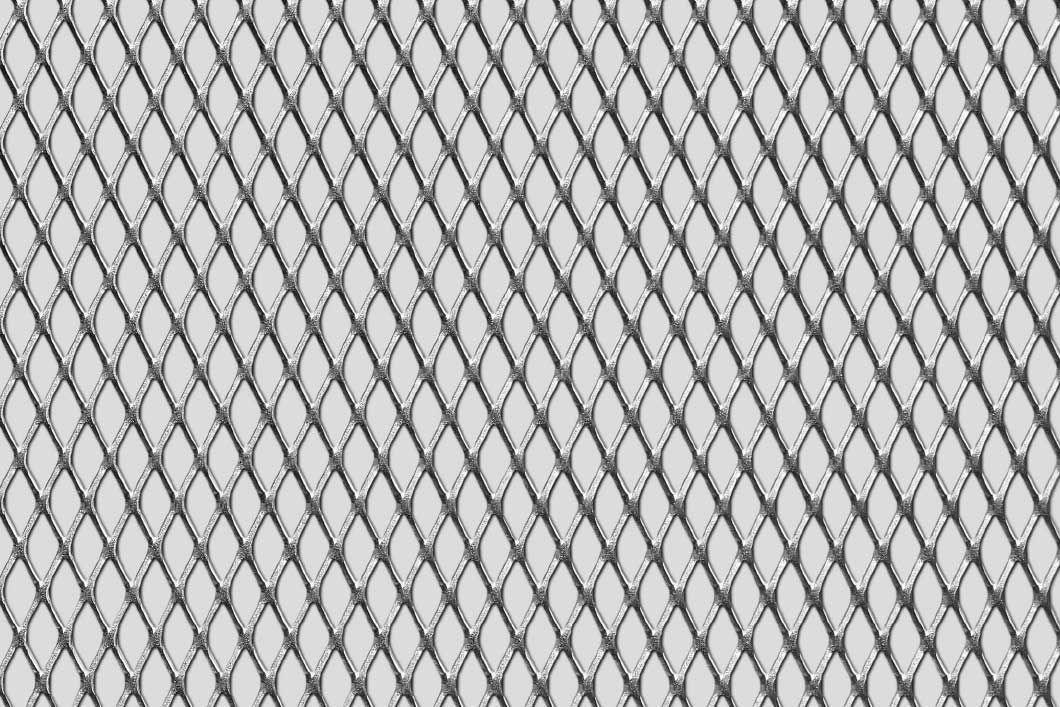

16 x 8mm pre-galvanised steel expanded metal, 1.5mm strand

Expanded pre-galvanised steel with a 16 x 8mm diamond and 1.5mm strands, giving 63% open area. It’s made to order in approximately 5 to 7 days, in 1 and 1.5mm thick.

Made to order, approximately 5 to 7 days
Product specificationThe measurements of 16 x 8mm
Long way of diamond (LWD)16mm
Short way of diamond (SWD)8mm
Strand width1.5mm
Open area63%
Thickness1–1.5mm
MaterialPre-galvanised
Sheet sizes2000 x 1000, 2500 x 1250, 3000 x 1500mm
Lead timeMade to order, approximately 5 to 7 days
Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessPre-galvanised, Made to orderSheet size (mm)
Any standard size
1mm5 to 7 days
1.5mm5 to 7 days

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Diamond pattern

Expanded metal diamond: 16mm LWD, 8mm SWD, 1.5mm strand

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?Once it’s here we cut sheets to size, and fold and fabricate panels, guards and walkways to your drawing.Ask for a price

About 16 x 8mm

Expanded pre-galvanised steel with a 16 x 8mm diamond and 1.5mm strands, giving 63% open area. It’s made to order in approximately 5 to 7 days, in 1 and 1.5mm thick.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Not quite right? Compare similar sizes

Anything different from 16 x 8mm is marked. See every expanded pre-galvanised steel sheet, or work out a different size

MeshDiamondStrandThicknessStock
8055G8 x 6mm1.25mm0.7mm✓ In stock
10 x 610 x 6mm1mm1mm5 to 7 days
12 x 612 x 6mm2mm1–1.5mm5 to 7 days
YOU’RE VIEWING16 x 816 x 8mm1.5mm1–1.5mm5 to 7 days
20 x 1020 x 10mm2mm1–2mm5 to 7 days
20 x 1520 x 15mm1.5mm1.5mm5 to 7 days
28 x 928 x 9mm2.5mm1–2mm5 to 7 days

Highlighted where it differs from 16 x 8mm

Get a price

Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
