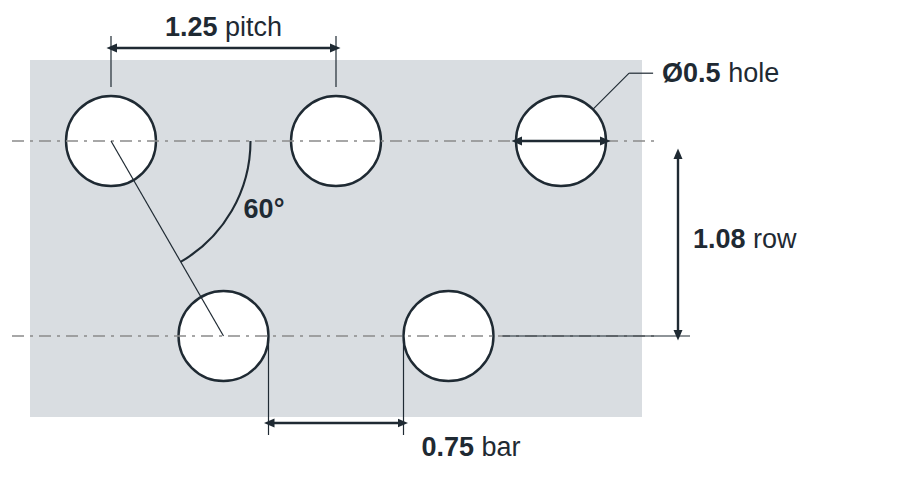

R0.5 T1.25 hole layout: 0.5mm round holes, 1.25mm staggered pitch, 0.75mm bar, 1.08mm row spacing

R0.5 T1.25. 0.5mm round hole, 1.25mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

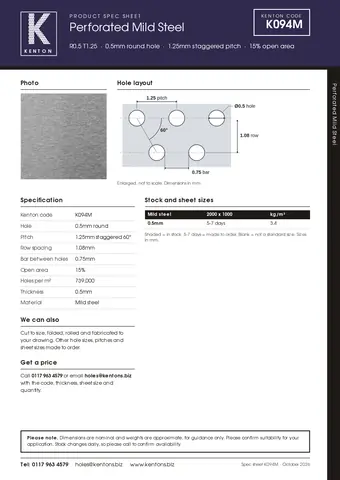

R0.5 T1.25 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K094M for easy re-ordering.Download spec sheet PDF

Perforated sheet, mild steel, r0.5 t1.25. Kenton code K094M

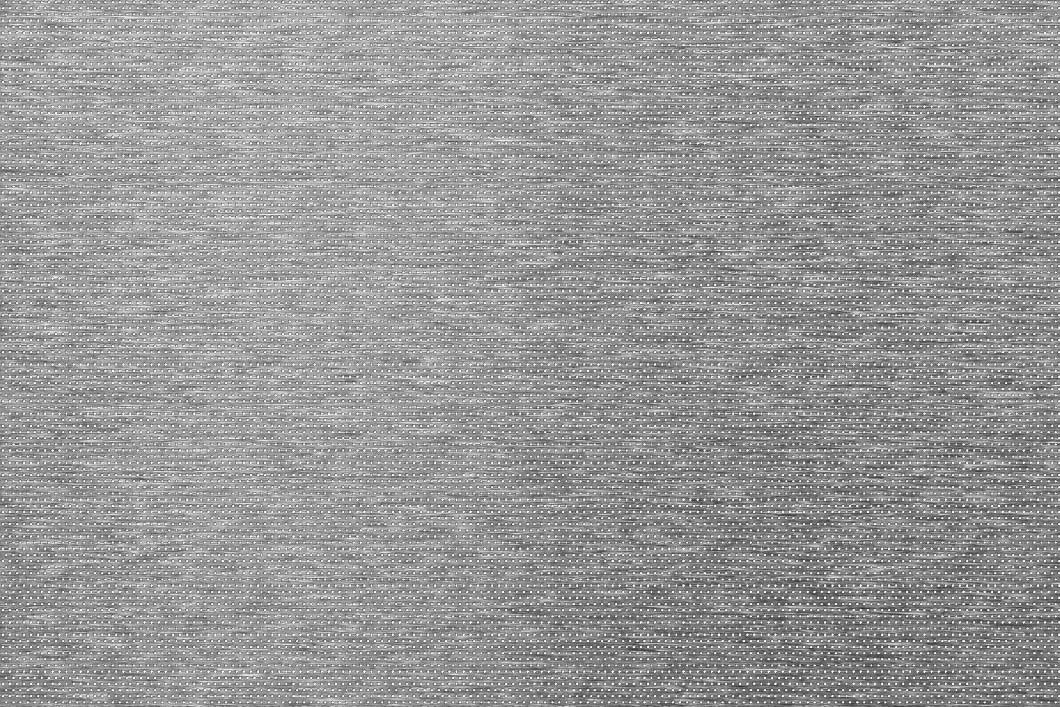

0.5mm hole mild steel perforated sheet

R0.5 T1.25 is a 0.5mm round hole perforated sheet in mild steel, with the holes on a 1.25mm staggered pitch giving 15% open area. It’s made to order, usually in 5 to 7 days, in 0.5mm thickness.

Made to order, usually 5 to 7 days

Product specificationThe measurements of R0.5 T1.25

Hole0.5mm round

Pitch1.25mm staggered 60°

Row spacing1.08mm

Bar between holes0.75mm

Open area15%

Holes per m²739,000

Thickness0.5mm

MaterialMild steel

Also written: R0.5T1.25 · 0.5mm R0.5 · 0.5mm hole 1.25mm pitch · 0.5mm round hole on 1.25mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessMild steel, K094M	Sheet size (mm)	Weightkg/m²
ThicknessMild steel, K094M	2000 x 1000	Weightkg/m²
0.5mm	5 to 7 days	3.4

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R0.5 T1.25

R0.5 T1.25 is a 0.5mm round hole perforated sheet in mild steel, with the holes on a 1.25mm staggered pitch giving 15% open area. It’s made to order, usually in 5 to 7 days, in 0.5mm thickness.

All sizes in the table are made to order, usually in 5 to 7 days.

What does R0.5 T1.25 mean?

R0.5 is a 0.5mm round hole. T1.25 means the holes sit on a 1.25mm staggered (60°) pitch, measured centre to centre.

Not quite right? Compare similar patterns

Anything different from R0.5 T1.25 is marked. See every mild steel pattern

Pattern	Hole	Pitch	Open area	Thickness	Stock
YOU’RE VIEWINGR0.5 T1.25	0.5mm round	1.25mm staggered	15%	0.5mm	5 to 7 days
R1.1 T2	1.1mm round	2mm staggered	27%	0.75–1mm	✓ In stock
R1.25 T2.4	1.25mm round	2.4mm staggered	25%	1mm	5 to 7 days
R1.25 T4	1.25mm round	4mm staggered	9%	1mm	5 to 7 days
R1.5 T2.5	1.5mm round	2.5mm staggered	33%	1–1.5mm	✓ In stock
R2 T3	2mm round	3mm staggered	40%	1mm	✓ In stock
R2 T3.5	2mm round	3.5mm staggered	30%	1–2mm	✓ In stock

Highlighted where it differs from R0.5 T1.25

Get a price

Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
