20mm Hole 304 Stainless Steel Perforated Sheet (R20 T28)
Description
R20 T28. 20mm round hole, 28mm staggered pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

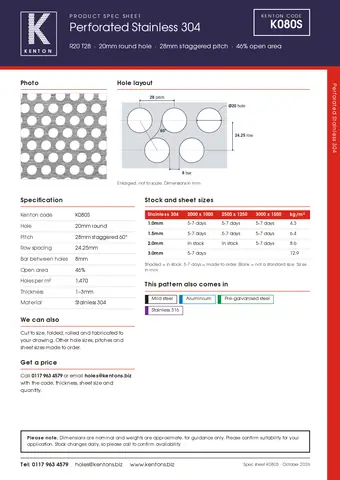

Perforated sheet, stainless 304, r20 t28. Kenton code K080S

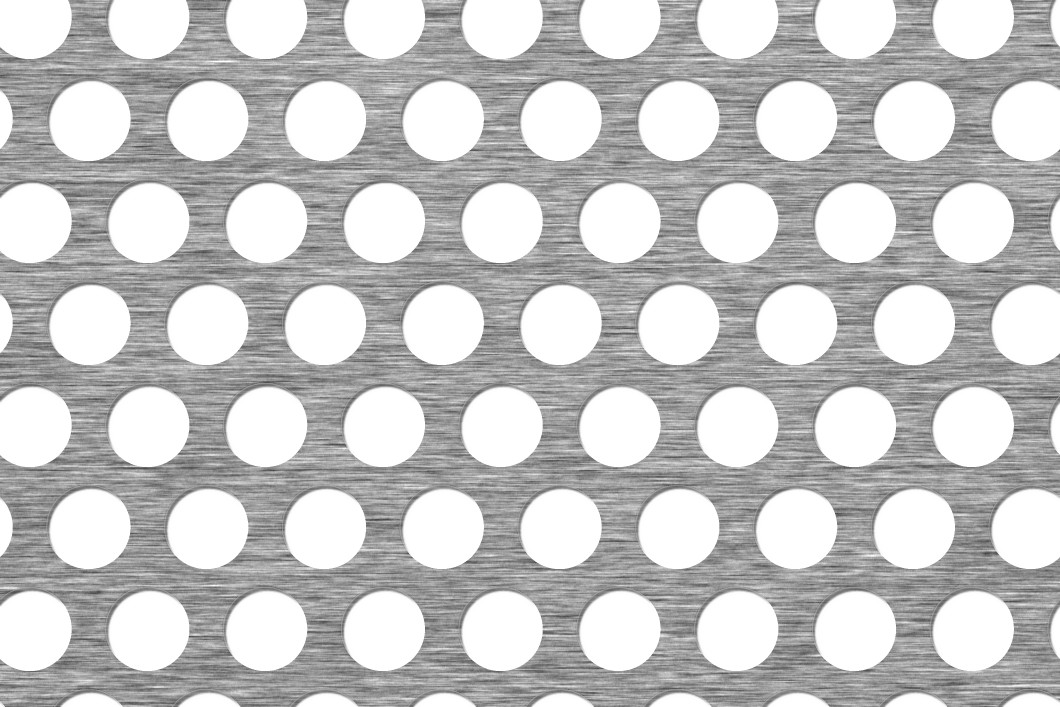

20mm hole 304 stainless steel perforated sheet
R20 T28 is a 20mm round hole perforated sheet in 304 stainless steel, with the holes on a 28mm staggered pitch giving 46% open area. We keep it in stock, in thicknesses from 1 to 3mm.
Also written: R20T28 · 20mm R20 · 20mm hole 28mm pitch · 20mm round hole on 28mm staggered centres
| ThicknessStainless 304, K080S | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 4.3 |
| 1.5mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 6.4 |
| 2.0mm | ✓ In stock | ✓ In stock | 5 to 7 days | 8.6 |
| 3.0mm | 5 to 7 days | 12.9 | ||
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About R20 T28
R20 T28 is a 20mm round hole perforated sheet in 304 stainless steel, with the holes on a 28mm staggered pitch giving 46% open area. We keep it in stock, in thicknesses from 1 to 3mm.
In stock: 2mm in 2m x 1m and 2.5m x 1.25m sheets. Everything else in the table is made to order in 5 to 7 days.
What does R20 T28 mean?
R20 is a 20mm round hole. T28 means the holes sit on a 28mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R20 T28 is marked. See every 304 stainless steel pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R8 T11 | 8mm round | 11mm staggered | 48% | 1–2mm | 5 to 7 days |
| R10 T13 | 10mm round | 13mm staggered | 54% | 1mm | 5 to 7 days |
| R10 T15 | 10mm round | 15mm staggered | 40% | 1–4mm | ✓ In stock |
| R15 T20 | 15mm round | 20mm staggered | 51% | 1.5mm | ✓ In stock |
| R15 T21 | 15mm round | 21mm staggered | 46% | 1–3mm | 5 to 7 days |
| YOU’RE VIEWINGR20 T28 | 20mm round | 28mm staggered | 46% | 1–3mm | ✓ In stock |
| R20 U48.5 | 20mm round | 48.5mm square | 13% | 1–2mm | 5 to 7 days |
Highlighted where it differs from R20 T28
