8mm hole 304 stainless steel perforated sheet

R8 T11 hole layout: 8mm round holes, 11mm staggered pitch, 3mm bar, 9.53mm row spacing

R8 T11. 8mm round hole, 11mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

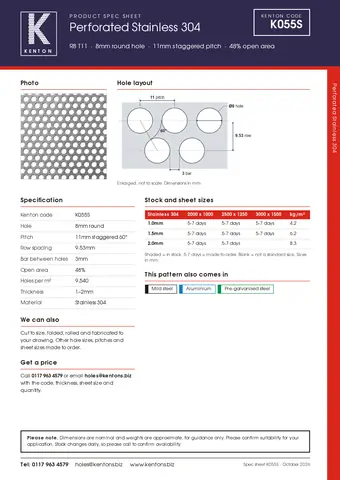

R8 T11 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K055S for easy re-ordering.Download spec sheet PDF

Perforated sheet, stainless 304, r8 t11. Kenton code K055S

8mm hole 304 stainless steel perforated sheet

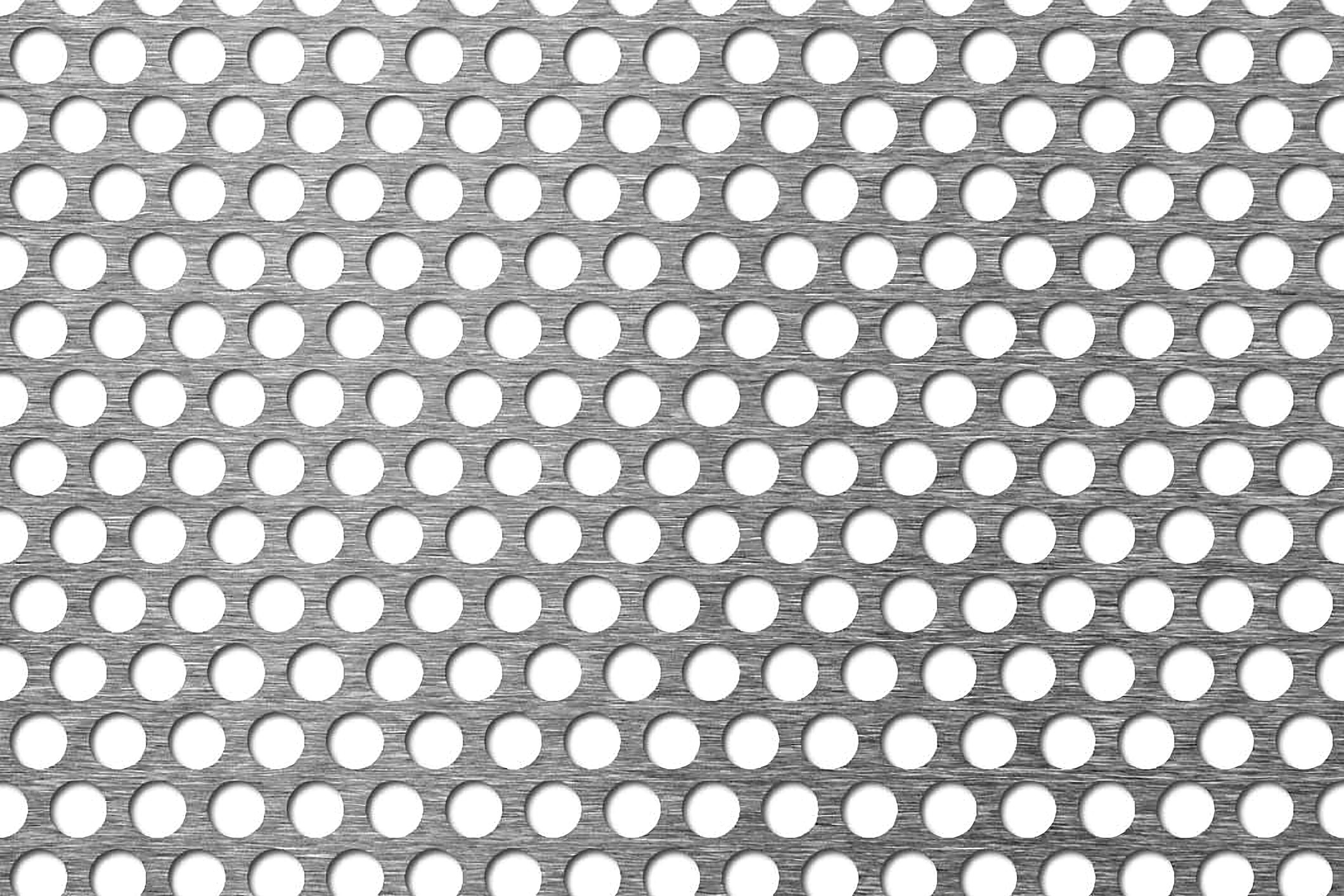

R8 T11 is an 8mm round hole perforated sheet in 304 stainless steel, with the holes on an 11mm staggered pitch giving 48% open area. It’s made to order, usually in 5 to 7 days, in thicknesses from 1 to 2mm.

Made to order, usually 5 to 7 days

Product specificationThe measurements of R8 T11

Hole8mm round

Pitch11mm staggered 60°

Row spacing9.53mm

Bar between holes3mm

Open area48%

Holes per m²9,540

Thickness1–2mm

MaterialStainless 304

Also written: R8T11 · 8mm R8 · 8mm hole 11mm pitch · 8mm round hole on 11mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessStainless 304, K055S	Sheet size (mm)			Weightkg/m²
ThicknessStainless 304, K055S	2000 x 1000	2500 x 1250	3000 x 1500	Weightkg/m²
1.0mm	5 to 7 days	5 to 7 days	5 to 7 days	4.2
1.5mm	5 to 7 days	5 to 7 days	5 to 7 days	6.2
2.0mm	5 to 7 days	5 to 7 days		8.3

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Hole layout

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R8 T11

All sizes in the table are made to order, usually in 5 to 7 days.

What does R8 T11 mean?

R8 is an 8mm round hole. T11 means the holes sit on an 11mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steel Aluminium Pre-galvanised steel

Not quite right? Compare similar patterns

Anything different from R8 T11 is marked. See every 304 stainless steel pattern

Pattern	Hole	Pitch	Open area	Thickness	Stock
R5 T7	5mm round	7mm staggered	46%	1–2mm	✓ In stock
R6 T8	6mm round	8mm staggered	51%	1–2mm	✓ In stock
R6 T9	6mm round	9mm staggered	40%	1–3mm	✓ In stock
YOU’RE VIEWINGR8 T11	8mm round	11mm staggered	48%	1–2mm	5 to 7 days
R8 T12	8mm round	12mm staggered	40%	1–3mm	✓ In stock
R10 T13	10mm round	13mm staggered	54%	1mm	5 to 7 days
R10 T15	10mm round	15mm staggered	40%	1–4mm	✓ In stock

Highlighted where it differs from R8 T11
