20mm Hole Mild Steel Perforated Sheet (R20 T27)
Description


R20 T27. 20mm round hole, 27mm staggered pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

Perforated sheet, mild steel, r20 t27. Kenton code K093M

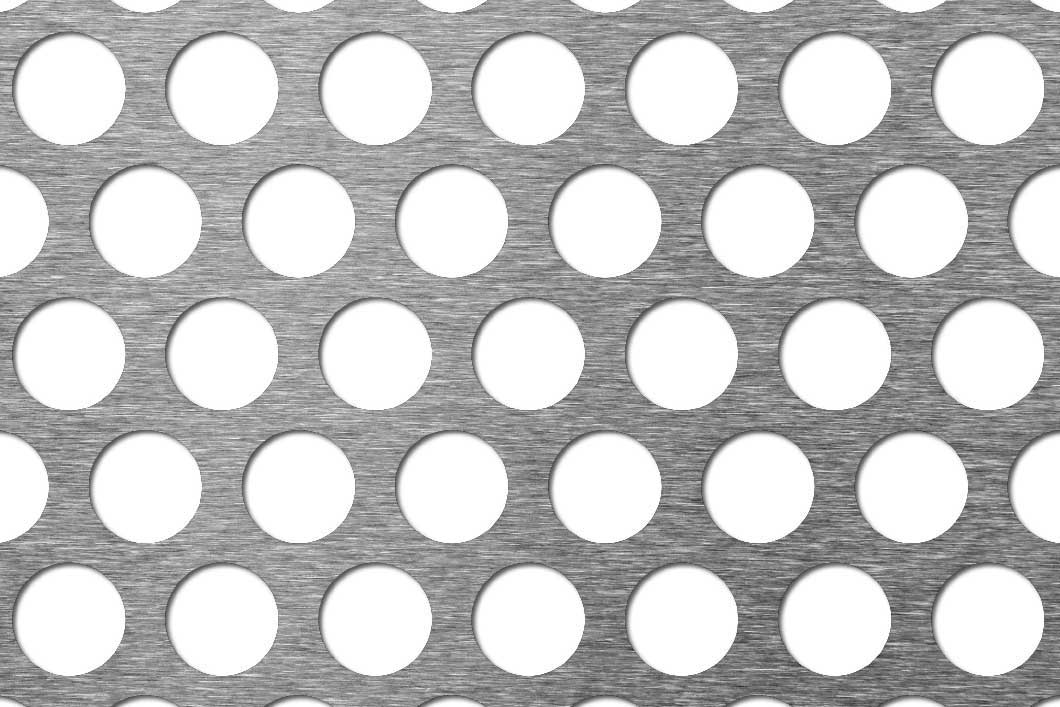

20mm hole mild steel perforated sheet
R20 T27 is a 20mm round hole perforated sheet in mild steel, with the holes on a 27mm staggered pitch giving 50% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1.5 to 2mm.
Also written: R20T27 · 20mm R20 · 20mm hole 27mm pitch · 20mm round hole on 27mm staggered centres
| ThicknessMild steel, K093M | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.5mm | 5 to 7 days | 5.9 | ||
| 2.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 7.9 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

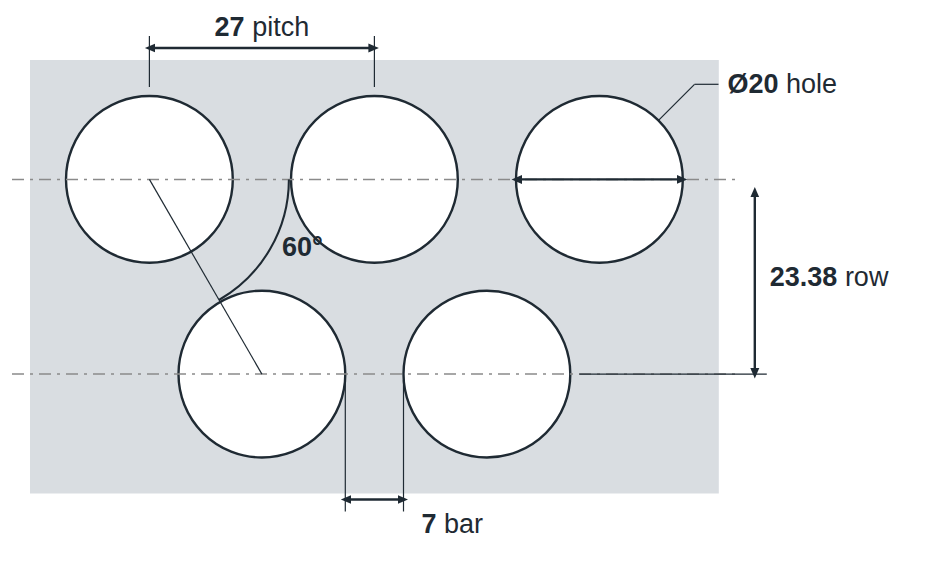

Hole layout

Enlarged, not to scale. Dimensions in mm.
About R20 T27
R20 T27 is a 20mm round hole perforated sheet in mild steel, with the holes on a 27mm staggered pitch giving 50% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1.5 to 2mm.
All sizes in the table are made to order, in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.
What does R20 T27 mean?
R20 is a 20mm round hole. T27 means the holes sit on a 27mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R20 T27 is marked. See every mild steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R15 T21 | 15mm round | 21mm staggered | 46% | 1–4mm | ✓ In stock |
| R16 T20 | 16mm round | 20mm staggered | 58% | 1–1.5mm | 5 to 7 days |
| R18 T22 | 18mm round | 22mm staggered | 61% | 1–2mm | 5 to 7 days |
| R20 T25 | 20mm round | 25mm staggered | 58% | 1–3mm | 5 to 7 days |
| YOU’RE VIEWINGR20 T27 | 20mm round | 27mm staggered | 50% | 1.5–2mm | 5 to 7 days |
| R20 T28 | 20mm round | 28mm staggered | 46% | 1–4mm | ✓ In stock |
| R25 T30 | 25mm round | 30mm staggered | 63% | 1–3mm | 5 to 7 days |
Highlighted where it differs from R20 T27
Get a price
Your choice is already filled in below. Add your details and we’ll come back with a price and a delivery date, usually the same working day. Need a different size? We can cut sheets down, so just add the sizes.
