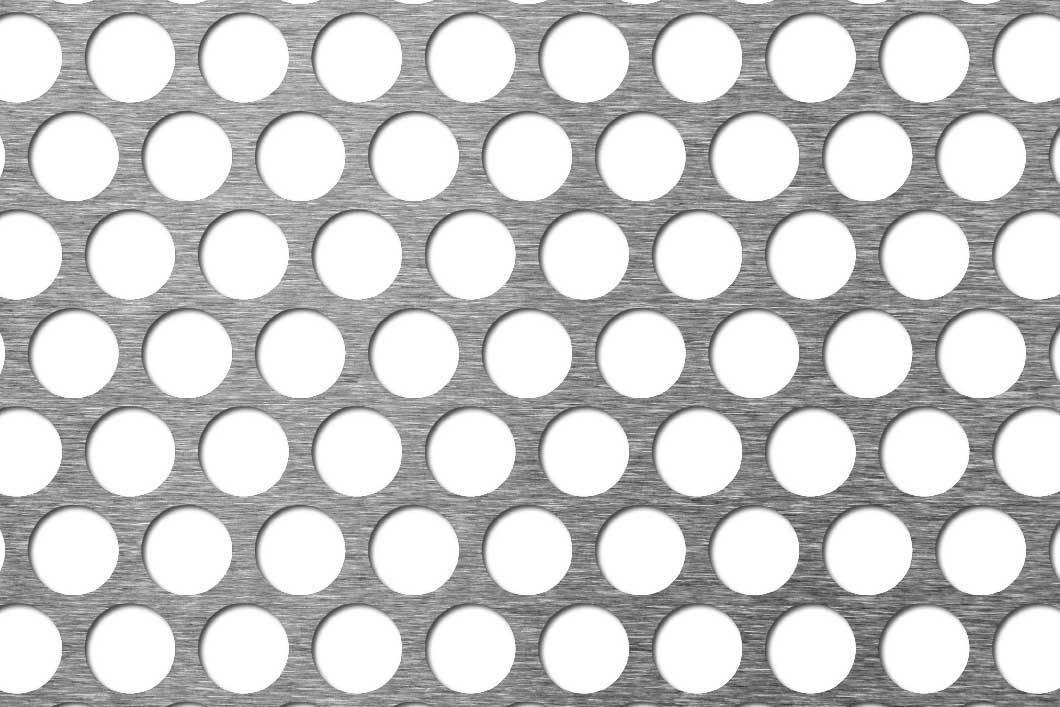

R16 T20 perforated sheet: 16mm round holes on 20mm staggered pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

16mm Hole Mild Steel Perforated Sheet (R16 T20)

Perforated sheetMild steelKenton code K077M

16mmRound hole
20mmStaggered pitch
58%Open area
1–1.5mmThickness

Stock and sheet sizes

Mild steelK077M 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 3.3
1.5mm 5-7 days 5-7 days 5-7 days 4.9

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

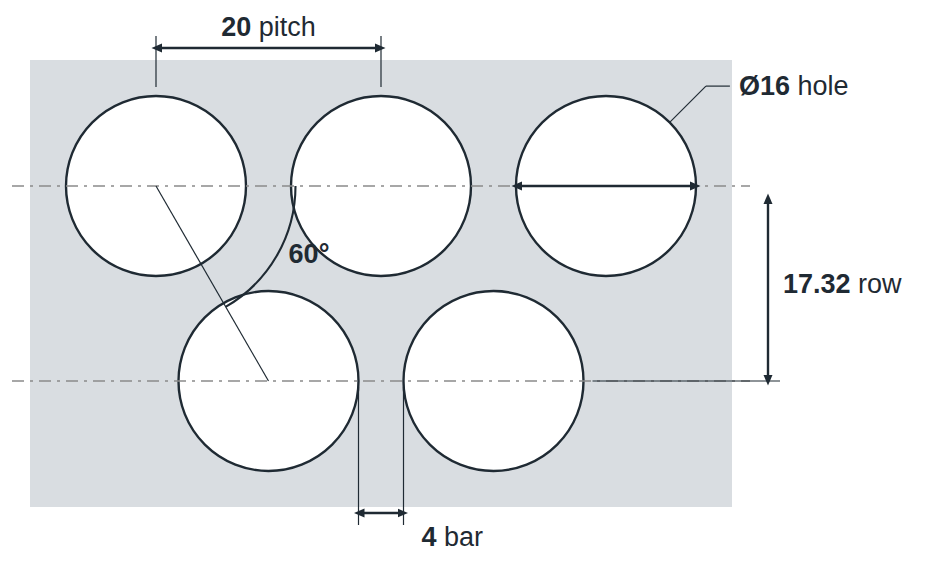

R16 T20 hole layout: 16mm round holes, 20mm staggered pitch, 4mm bar, 17.32mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
16mm round
Pitch
20mm staggered 60°
Row spacing
17.32mm
Bar between holes
4mm
Open area
58%
Holes per m²
2,890
Thickness
1–1.5mm
Material
Mild steel
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R16 T20 mild steel perforated sheet

R16 T20 is a 16mm round hole perforated sheet in mild steel, with the holes on a 20mm staggered pitch giving 58% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 1.5mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R16 T20 mean?

R16 is a 16mm round hole. T20 means the holes sit on a 20mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Aluminium

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R15 T21 15mm round 21mm staggered 46% 1–4mm ✓ In stock
R15 T22 15mm round 22mm staggered 42% 1.5–3mm 5-7 days
R15 T24 15mm round 24mm staggered 35% 6–8mm ✓ In stock
R16 T20This page 16mm round 20mm staggered 58% 1–1.5mm 5-7 days
R18 T22 18mm round 22mm staggered 61% 1–2mm 5-7 days
R20 T25 20mm round 25mm staggered 58% 1–3mm 5-7 days
R20 T27 20mm round 27mm staggered 50% 1.5–2mm 5-7 days

The nearest mild steel round hole patterns to R16 T20. See every mild steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
