3mm Hole 304 Stainless Steel Perforated Sheet (R3 T4)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
3mm hole 304 stainless steel perforated sheetR3 T4 hole layout: 3mm round holes, 4mm staggered pitch, 1mm bar, 3.46mm row spacing

R3 T4. 3mm round hole, 4mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for K025S
R3 T4 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K025S for easy re-ordering.Download spec sheet PDF

Perforated sheet, stainless 304, r3 t4. Kenton code K025S

3mm hole 304 stainless steel perforated sheet

R3 T4 is a 3mm round hole perforated sheet in 304 stainless steel, with the holes on a 4mm staggered pitch giving 51% open area. We keep it in stock, in 1mm thickness.

In stock, next working day delivery
Product specificationThe measurements of R3 T4
Hole3mm round
Pitch4mm staggered 60°
Row spacing3.46mm
Bar between holes1mm
Open area51%
Holes per m²72,200
Thickness1mm
MaterialStainless 304

Also written: R3T4 · 3mm R3 · 3mm hole 4mm pitch · 3mm round hole on 4mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessStainless 304, K025SSheet size (mm)Weightkg/m²
2000 x 10002500 x 1250
1.0mm✓ In stock5 to 7 days3.9

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

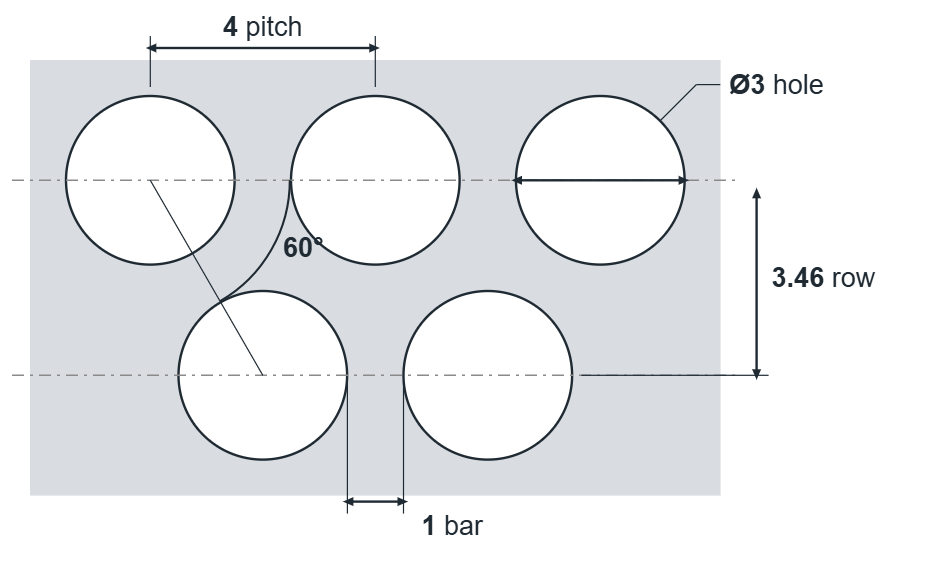

Hole layout

R3 T4 hole layout: 3mm round holes, 4mm staggered pitch, 1mm bar, 3.46mm row spacing

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R3 T4

R3 T4 is a 3mm round hole perforated sheet in 304 stainless steel, with the holes on a 4mm staggered pitch giving 51% open area. We keep it in stock, in 1mm thickness.

In stock: 1mm in 2m x 1m sheets. Everything else in the table is made to order in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.

What does R3 T4 mean?

R3 is a 3mm round hole. T4 means the holes sit on a 4mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steel

Not quite right? Compare similar patterns

Anything different from R3 T4 is marked. See every 304 stainless steel pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R2 T32mm round3mm staggered40%1mm✓ In stock
R2 T3.52mm round3.5mm staggered30%1–1.5mm✓ In stock
YOU’RE VIEWINGR3 T43mm round4mm staggered51%1mm✓ In stock
R3 T53mm round5mm staggered33%0.7–3mm✓ In stock
R3 T63mm round6mm staggered23%1–2mm✓ In stock
R3 T73mm round7mm staggered17%1–3mm5 to 7 days
R4 T64mm round6mm staggered40%1–2mm✓ In stock
R4 T84mm round8mm staggered23%1–2mm5 to 7 days
R5 T75mm round7mm staggered46%1–2mm✓ In stock

Highlighted where it differs from R3 T4
