3mm Hole 304 Stainless Steel Perforated Sheet (R3 T5)
Description
R3 T5. 3mm round hole, 5mm staggered pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

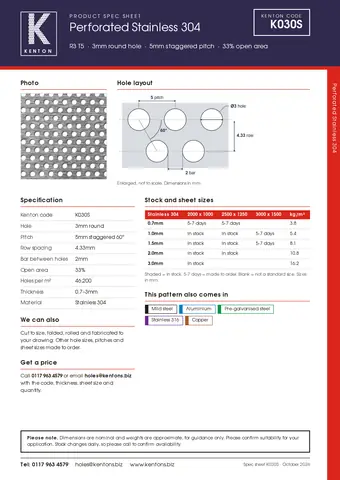

Perforated sheet, stainless 304, r3 t5. Kenton code K030S

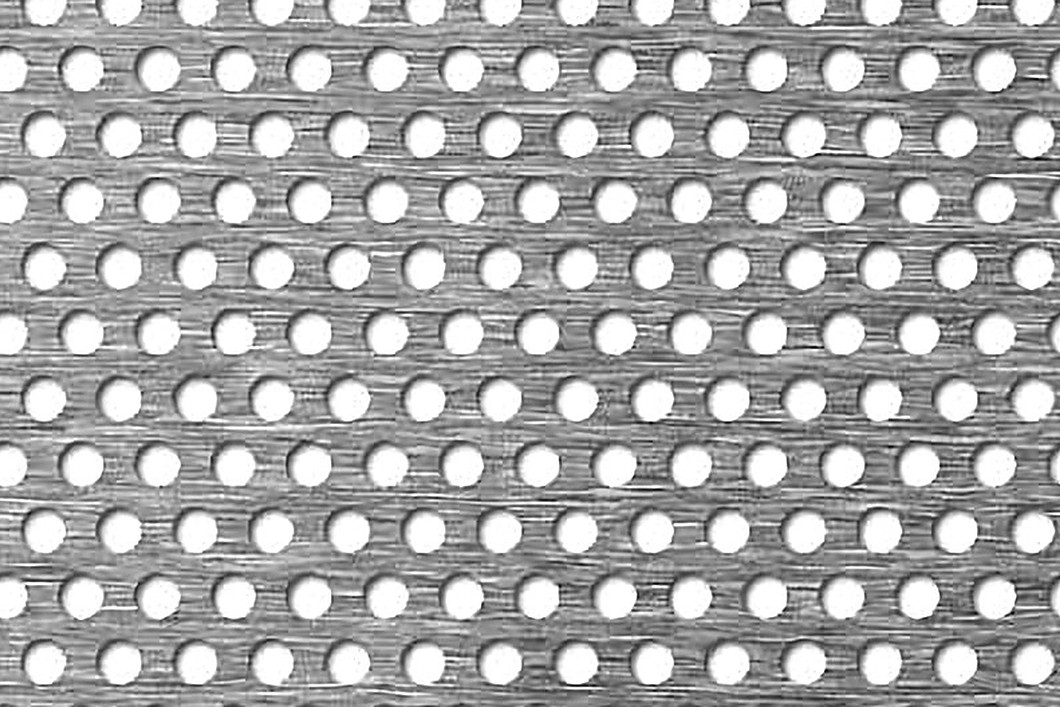

3mm hole 304 stainless steel perforated sheet
R3 T5 is a 3mm round hole perforated sheet in 304 stainless steel, with the holes on a 5mm staggered pitch giving 33% open area. We keep it in stock, in thicknesses from 0.7 to 3mm.
Also written: R3T5 · 3mm R3 · 3mm hole 5mm pitch · 3mm round hole on 5mm staggered centres
| ThicknessStainless 304, K030S | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 0.7mm | 5 to 7 days | 5 to 7 days | 3.8 | |
| 1.0mm | ✓ In stock | ✓ In stock | 5 to 7 days | 5.4 |
| 1.5mm | ✓ In stock | ✓ In stock | 5 to 7 days | 8.1 |
| 2.0mm | ✓ In stock | ✓ In stock | 10.8 | |
| 3.0mm | ✓ In stock | 16.2 | ||
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About R3 T5
R3 T5 is a 3mm round hole perforated sheet in 304 stainless steel, with the holes on a 5mm staggered pitch giving 33% open area. We keep it in stock, in thicknesses from 0.7 to 3mm.
In stock: 1mm, 1.5mm and 2mm in 2m x 1m and 2.5m x 1.25m sheets; 3mm in 2m x 1m. Everything else in the table is made to order in 5 to 7 days.
What does R3 T5 mean?
R3 is a 3mm round hole. T5 means the holes sit on a 5mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R3 T5 is marked. See every 304 stainless steel pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R2 T3 | 2mm round | 3mm staggered | 40% | 1mm | ✓ In stock |
| R2 T3.5 | 2mm round | 3.5mm staggered | 30% | 1–1.5mm | ✓ In stock |
| R2 T4 | 2mm round | 4mm staggered | 23% | 2mm | ✓ In stock |
| R3 T4 | 3mm round | 4mm staggered | 51% | 1mm | ✓ In stock |
| YOU’RE VIEWINGR3 T5 | 3mm round | 5mm staggered | 33% | 0.7–3mm | ✓ In stock |
| R3 T6 | 3mm round | 6mm staggered | 23% | 1–2mm | ✓ In stock |
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–2mm | ✓ In stock |
Highlighted where it differs from R3 T5
