Stock and sheet sizes

Stainless 304K032S	2000 x 1000	2500 x 1250	3000 x 1500	kg/m²
1.0mm	5-7 days	5-7 days	5-7 days	6.2
1.5mm	5-7 days	5-7 days	5-7 days	9.3
2.0mm	✓ In stock	5-7 days		12.4

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

Cut to sizewhile you wait

Next working daydelivery on stock sheets

Folded & fabricatedto your drawing

Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579 Email us

Description

Technical details

Hole layout

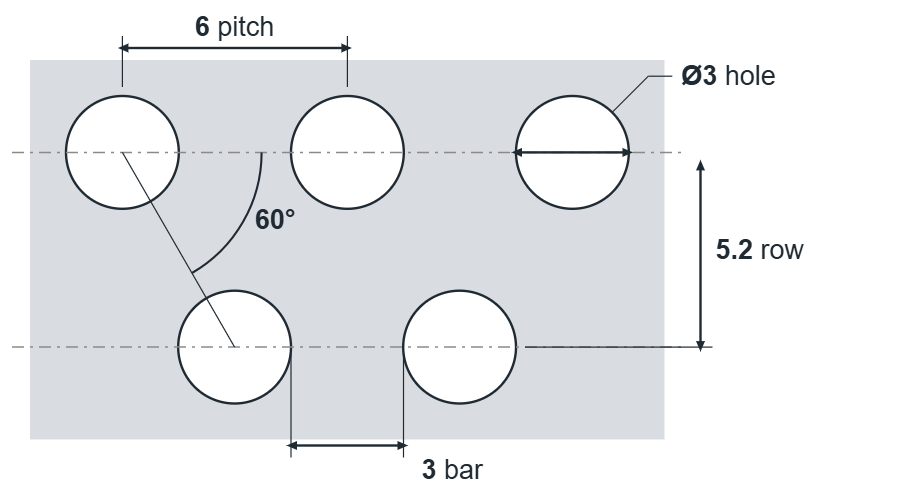

R3 T6 hole layout: 3mm round holes, 6mm staggered pitch, 3mm bar, 5.2mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole: 3mm round
Pitch: 6mm staggered 60°
Row spacing: 5.2mm
Bar between holes: 3mm
Open area: 23%
Holes per m²: 32,100
Thickness: 1–2mm
Material: Stainless 304

Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579 Email your drawing

About R3 T6 304 stainless steel perforated sheet

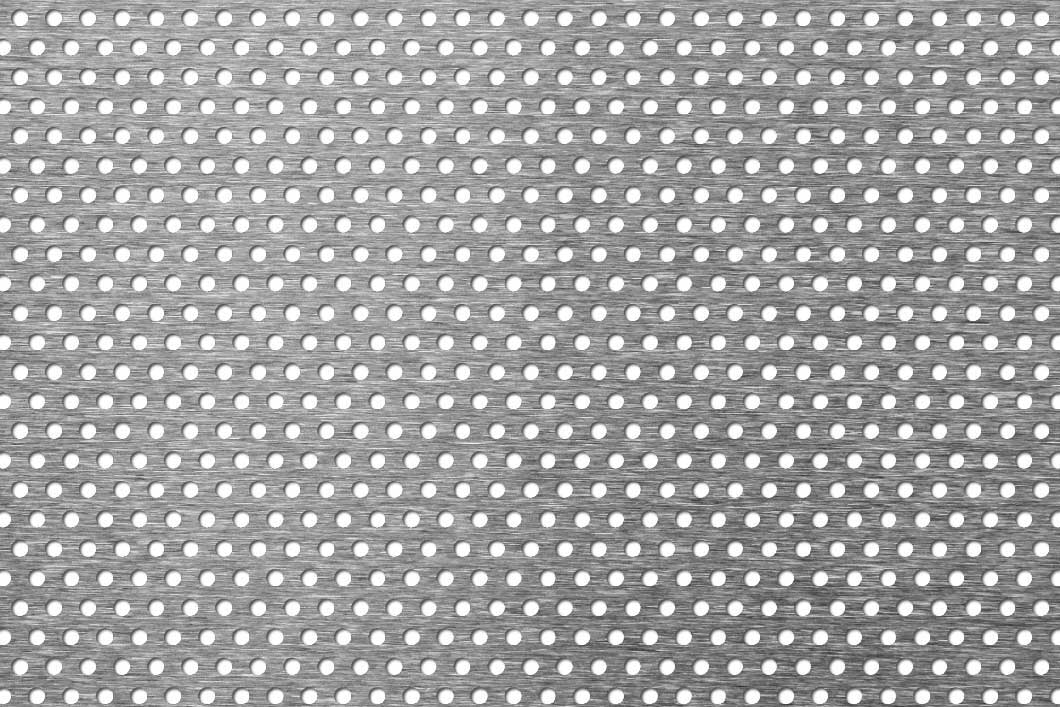

R3 T6 is a 3mm round hole perforated sheet in 304 stainless steel, with the holes on a 6mm staggered pitch giving 23% open area. We keep it in stock here in Bristol, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

In stock: 2mm in 2m x 1m sheets. Everything else in the table is made to order in 5-7 days.

What does R3 T6 mean?

R3 is a 3mm round hole. T6 means the holes sit on a 6mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Aluminium Pre-galvanised steel Stainless 316

Similar patterns

Pattern	Hole	Pitch	Open area	Thickness	Stock
R2 T3	2mm round	3mm staggered	40%	1mm	✓ In stock
R2 T3.5	2mm round	3.5mm staggered	30%	1–1.5mm	✓ In stock
R2 T4	2mm round	4mm staggered	23%	2mm	✓ In stock
R3 T4	3mm round	4mm staggered	51%	1mm	✓ In stock
R3 T5	3mm round	5mm staggered	33%	0.7–3mm	✓ In stock
R3 T6This page	3mm round	6mm staggered	23%	1–2mm	✓ In stock
R4 T6	4mm round	6mm staggered	40%	1–2mm	✓ In stock

The nearest 304 stainless steel round hole patterns to R3 T6. See every 304 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
