3mm Hole Aluminium Perforated Sheet (R3 T5)
Description
R3 T5. 3mm round hole, 5mm staggered pitch.

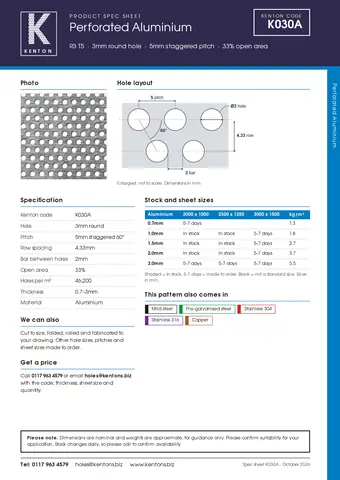

Hole layout. Enlarged, not to scale. Dimensions in mm.
Perforated sheet, aluminium, r3 t5. Kenton code K030A
3mm hole aluminium perforated sheet
R3 T5 is a 3mm round hole perforated sheet in aluminium, with the holes on a 5mm staggered pitch giving 33% open area. We keep it in stock, in thicknesses from 0.7 to 3mm.
Also written: R3T5 · 3mm R3 · 3mm hole 5mm pitch · 3mm round hole on 5mm staggered centres
| ThicknessAluminium, K030A | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 0.7mm | 5 to 7 days | 1.3 | ||
| 1.0mm | ✓ In stock | ✓ In stock | 5 to 7 days | 1.8 |
| 1.5mm | ✓ In stock | ✓ In stock | 5 to 7 days | 2.7 |
| 2.0mm | ✓ In stock | ✓ In stock | 5 to 7 days | 3.7 |
| 3.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 5.5 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.
Hole layout
Enlarged, not to scale. Dimensions in mm.
About R3 T5
R3 T5 is a 3mm round hole perforated sheet in aluminium, with the holes on a 5mm staggered pitch giving 33% open area. We keep it in stock, in thicknesses from 0.7 to 3mm.
In stock: 1mm, 1.5mm and 2mm in 2m x 1m and 2.5m x 1.25m sheets. Everything else in the table is made to order in 5 to 7 days.
What does R3 T5 mean?
R3 is a 3mm round hole. T5 means the holes sit on a 5mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Mild steelPre-galvanised steelStainless 304Stainless 316Copper
Not quite right? Compare similar patterns
Anything different from R3 T5 is marked. See every aluminium pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R1.5 T2.5 | 1.5mm round | 2.5mm staggered | 33% | 1mm | 5 to 7 days |
| R2 T3.5 | 2mm round | 3.5mm staggered | 30% | 1–2mm | ✓ In stock |
| YOU’RE VIEWINGR3 T5 | 3mm round | 5mm staggered | 33% | 0.7–3mm | ✓ In stock |
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–3mm | 5 to 7 days |
| R4.5 U15 | 4.5mm round | 15mm square | 7% | 1.5–2mm | 5 to 7 days |
| R5 T8 | 5mm round | 8mm staggered | 35% | 1–3mm | ✓ In stock |
| R6 T9 | 6mm round | 9mm staggered | 40% | 1–4mm | ✓ In stock |
Highlighted where it differs from R3 T5
