4mm Hole 316 Stainless Steel Perforated Sheet (R4 T6)

Need help in choosing the right product?

Ask our experts

CONTACT US

4mm Hole 316 Stainless Steel Perforated Sheet (R4 T6)

Perforated sheetStainless 316Kenton code K035S6

4mmRound hole
6mmStaggered pitch
40%Open area
1–2mmThickness

Stock and sheet sizes

Stainless 316K035S6 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 4.8
1.5mm 5-7 days 5-7 days 5-7 days 7.2
2.0mm ✓ In stock 9.6

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

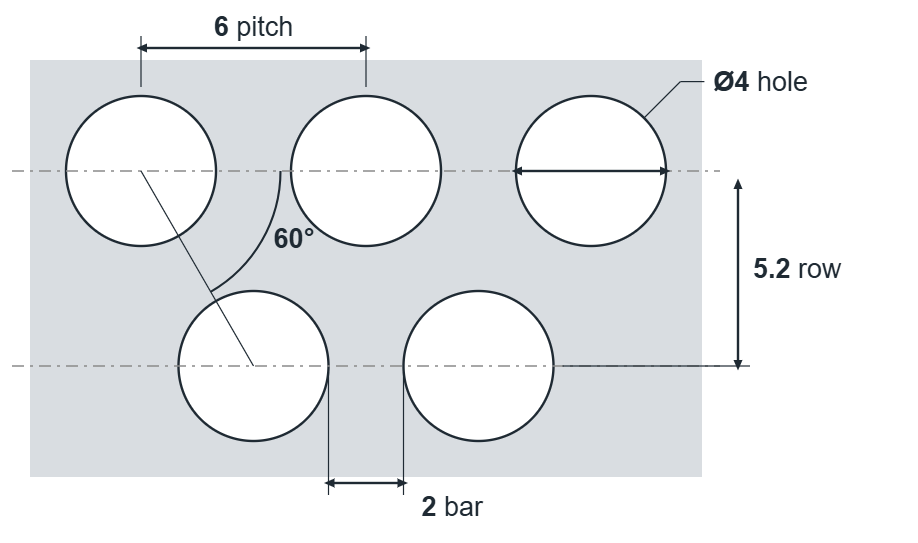

R4 T6 hole layout: 4mm round holes, 6mm staggered pitch, 2mm bar, 5.2mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
4mm round
Pitch
6mm staggered 60°
Row spacing
5.2mm
Bar between holes
2mm
Open area
40%
Holes per m²
32,100
Thickness
1–2mm
Material
Stainless 316
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R4 T6 316 stainless steel perforated sheet

R4 T6 is a 4mm round hole perforated sheet in 316 stainless steel, with the holes on a 6mm staggered pitch giving 40% open area. We keep it in stock here in Bristol, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

In stock: 2mm in 2m x 1m sheets. Everything else in the table is made to order in 5-7 days.

What does R4 T6 mean?

R4 is a 4mm round hole. T6 means the holes sit on a 6mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelStainless 304

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R2 T3.5 2mm round 3.5mm staggered 30% 1–1.5mm ✓ In stock
R3 T5 3mm round 5mm staggered 33% 0.7–2mm ✓ In stock
R3 T6 3mm round 6mm staggered 23% 3mm ✓ In stock
R4 T6This page 4mm round 6mm staggered 40% 1–2mm ✓ In stock
R5 T8 5mm round 8mm staggered 35% 1–3mm ✓ In stock
R6 T9 6mm round 9mm staggered 40% 1–2mm ✓ In stock
R10 T15 10mm round 15mm staggered 40% 1–3mm ✓ In stock

The nearest 316 stainless steel round hole patterns to R4 T6. See every 316 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
