5mm Hole 316 Stainless Steel Perforated Sheet (R5 T8)
Perforated sheetStainless 316Kenton code K045S6
Stock and sheet sizes
| Stainless 316K045S6 | 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | kg/m² |
|---|---|---|---|---|
| 1.0mm | ✓ In stock | ✓ In stock | 5.2 | |
| 1.5mm | ✓ In stock | ✓ In stock | 5-7 days | 7.7 |
| 2.0mm | ✓ In stock | 5-7 days | 5-7 days | 10.3 |
| 3.0mm | ✓ In stock | 5-7 days | 15.5 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

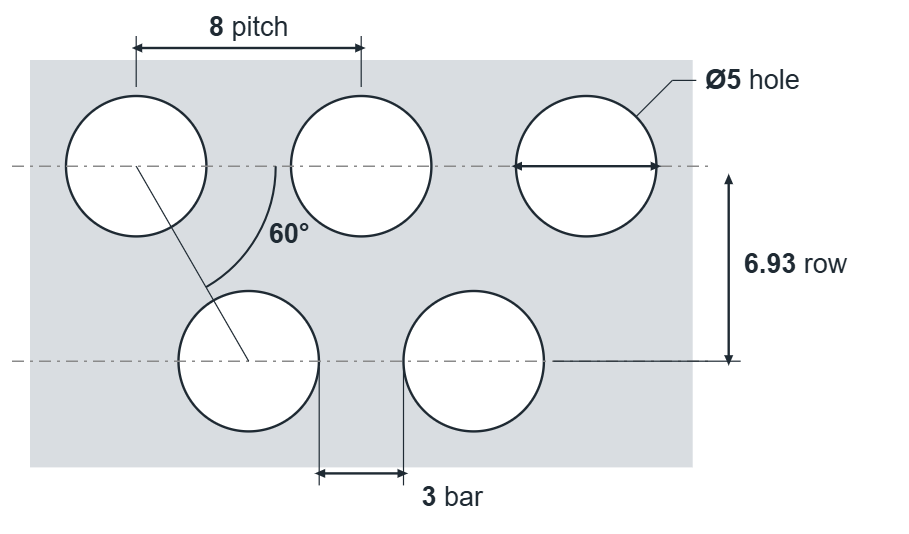

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 5mm round
- Pitch
- 8mm staggered 60°
- Row spacing
- 6.93mm
- Bar between holes
- 3mm
- Open area
- 35%
- Holes per m²
- 18,000
- Thickness
- 1–3mm
- Material
- Stainless 316
About R5 T8 316 stainless steel perforated sheet
R5 T8 is a 5mm round hole perforated sheet in 316 stainless steel, with the holes on an 8mm staggered pitch giving 35% open area. We keep it in stock here in Bristol, in thicknesses from 1 to 3mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
In stock: 1mm and 1.5mm in 2m x 1m and 2.5m x 1.25m sheets; 2mm and 3mm in 2m x 1m. Everything else in the table is made to order in 5-7 days.
What does R5 T8 mean?
R5 is a 5mm round hole. T8 means the holes sit on an 8mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R2 T3.5 | 2mm round | 3.5mm staggered | 30% | 1–1.5mm | ✓ In stock |
| R3 T5 | 3mm round | 5mm staggered | 33% | 0.7–2mm | ✓ In stock |
| R3 T6 | 3mm round | 6mm staggered | 23% | 3mm | ✓ In stock |
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–2mm | ✓ In stock |
| R5 T8This page | 5mm round | 8mm staggered | 35% | 1–3mm | ✓ In stock |
| R6 T9 | 6mm round | 9mm staggered | 40% | 1–2mm | ✓ In stock |
| R10 T15 | 10mm round | 15mm staggered | 40% | 1–3mm | ✓ In stock |
The nearest 316 stainless steel round hole patterns to R5 T8. See every 316 stainless steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
