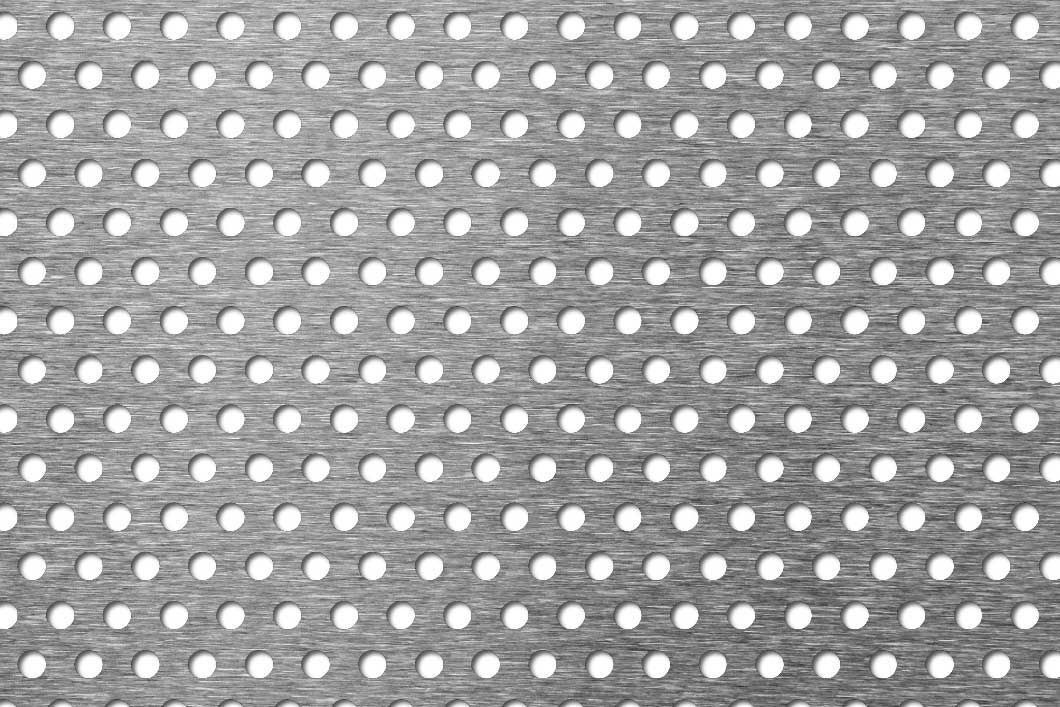

R5 T10 perforated sheet: 5mm round holes on 10mm staggered pitch

Need help in choosing the right product?

Ask our experts

CONTACT US

5mm Hole 316 Stainless Steel Perforated Sheet (R5 T10)

Perforated sheetStainless 316Kenton code K099S6

5mmRound hole
10mmStaggered pitch
23%Open area
1–2mmThickness

Stock and sheet sizes

Stainless 316K099S6 2000 x 1000 2500 x 1250 3000 x 1500 kg/m²
1.0mm 5-7 days 5-7 days 5-7 days 6.2
1.5mm 5-7 days 5-7 days 5-7 days 9.3
2.0mm 5-7 days 5-7 days 5-7 days 12.4

✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm

  • Cut to sizewhile you wait
  • Next working daydelivery on stock sheets
  • Folded & fabricatedto your drawing
Need a price?Tell us the thickness, sizes and quantity and we’ll come back to you.

0117 963 4579Email us

Description

Technical details

Hole layout

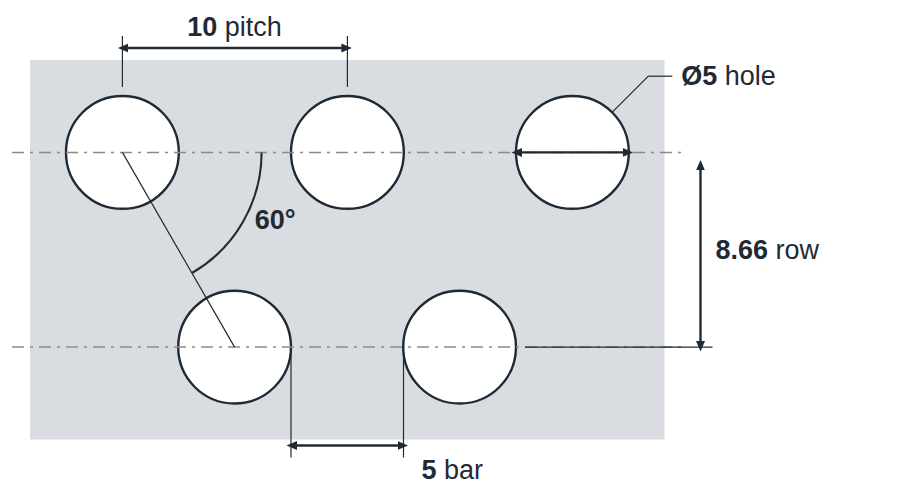

R5 T10 hole layout: 5mm round holes, 10mm staggered pitch, 5mm bar, 8.66mm row spacing

Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.

Specification

Hole
5mm round
Pitch
10mm staggered 60°
Row spacing
8.66mm
Bar between holes
5mm
Open area
23%
Holes per m²
11,500
Thickness
1–2mm
Material
Stainless 316
Need it cut, folded or made to a drawing?We guillotine sheets to size while you wait, and fold, roll and fabricate panels, guards and trays to your drawing.

Call 0117 963 4579Email your drawing

About R5 T10 316 stainless steel perforated sheet

R5 T10 is a 5mm round hole perforated sheet in 316 stainless steel, with the holes on a 10mm staggered pitch giving 23% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.

All sizes in the table are made to order, usually in 5-7 days.

What does R5 T10 mean?

R5 is a 5mm round hole. T10 means the holes sit on a 10mm staggered (60°) pitch, measured centre to centre.

This pattern also comes in

Mild steelAluminiumPre-galvanised steelStainless 304

Similar patterns

Pattern Hole Pitch Open area Thickness Stock
R5 T8 5mm round 8mm staggered 35% 1–3mm ✓ In stock
R5 T9 5mm round 9mm staggered 28% 1mm 5-7 days
R5 U10 5mm round 10mm square 20% 1–1.5mm 5-7 days
R5 T10This page 5mm round 10mm staggered 23% 1–2mm 5-7 days
R5 T12 5mm round 12mm staggered 16% 1.5–2mm 5-7 days
R5 T14 5mm round 14mm staggered 12% 1–2mm 5-7 days
R5 U15 5mm round 15mm square 9% 1–2mm 5-7 days

The nearest 316 stainless steel round hole patterns to R5 T10. See every 316 stainless steel pattern →

Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
