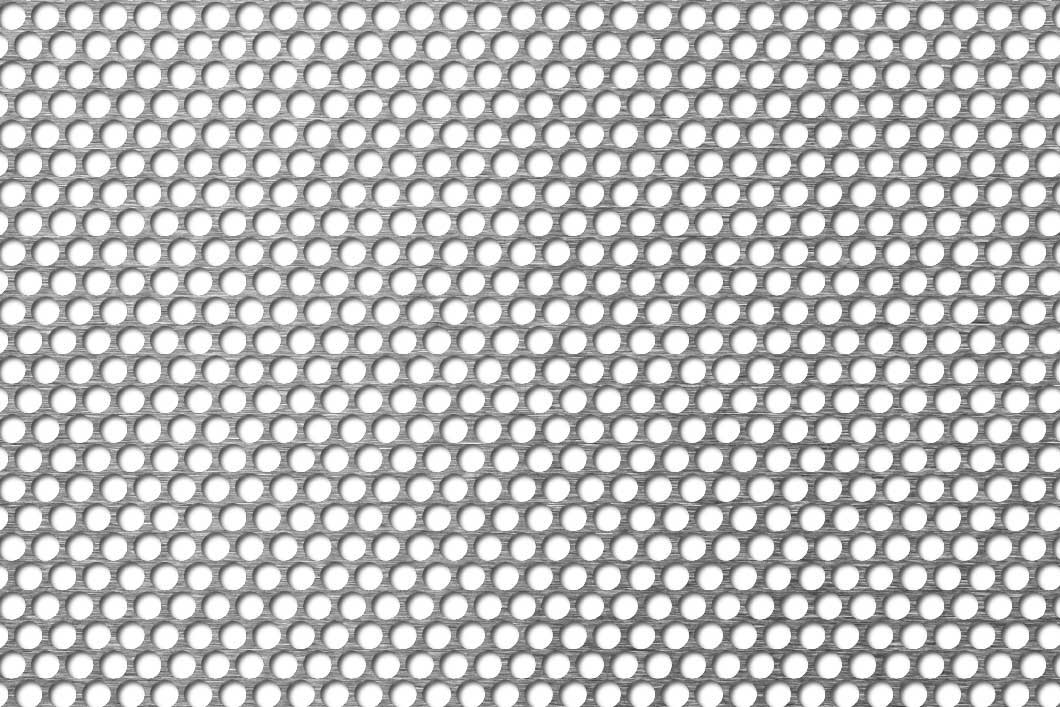

5mm Hole Mild Steel Perforated Sheet (R5 T6)
Perforated sheetMild steelKenton code K039M
Stock and sheet sizes
| Mild steelK039M | 2000 x 1000 | kg/m² |
|---|---|---|
| 1.0mm | ✓ In stock | 2.9 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

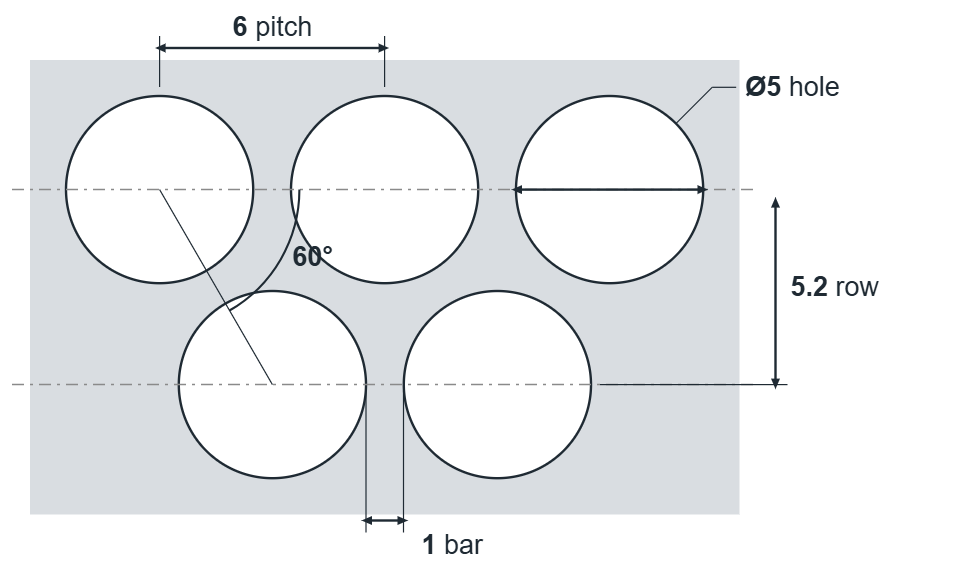

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 5mm round
- Pitch
- 6mm staggered 60°
- Row spacing
- 5.2mm
- Bar between holes
- 1mm
- Open area
- 63%
- Holes per m²
- 32,100
- Thickness
- 1mm
- Material
- Mild steel
About R5 T6 mild steel perforated sheet
R5 T6 is a 5mm round hole perforated sheet in mild steel, with the holes on a 6mm staggered pitch giving 63% open area. We keep it in stock here in Bristol, in 1mm thickness. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
In stock: 1mm in 2m x 1m sheets. Everything else in the table is made to order in 5-7 days.
What does R5 T6 mean?
R5 is a 5mm round hole. T6 means the holes sit on a 6mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R4 T5 | 4mm round | 5mm staggered | 58% | 1–1.5mm | ✓ In stock |
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–3mm | ✓ In stock |
| R5 T6This page | 5mm round | 6mm staggered | 63% | 1mm | ✓ In stock |
| R5 T7 | 5mm round | 7mm staggered | 46% | 1–2mm | ✓ In stock |
| R5 T8 | 5mm round | 8mm staggered | 35% | 1–5mm | ✓ In stock |
| R6 T9 | 6mm round | 9mm staggered | 40% | 1–3mm | ✓ In stock |
| R6 T12 | 6mm round | 12mm staggered | 23% | 6mm | ✓ In stock |
The nearest mild steel round hole patterns to R5 T6. See every mild steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
