6mm Hole Mild Steel Perforated Sheet (R6 T12)

Description

Open Monday to Thursday 8:30 to 5, Friday 8:30 to 30117 963 4579holes@kentons.biz
6mm hole mild steel perforated sheetR6 T12 hole layout: 6mm round holes, 12mm staggered pitch, 6mm bar, 10.39mm row spacing

R6 T12. 6mm round hole, 12mm staggered pitch.

Hole layout. Enlarged, not to scale. Dimensions in mm.

Kenton spec sheet for K052M
R6 T12 spec sheetOne A4 page with the specification, sizes and a drawing. Our code K052M for easy re-ordering.Download spec sheet PDF

Perforated sheet, mild steel, r6 t12. Kenton code K052M

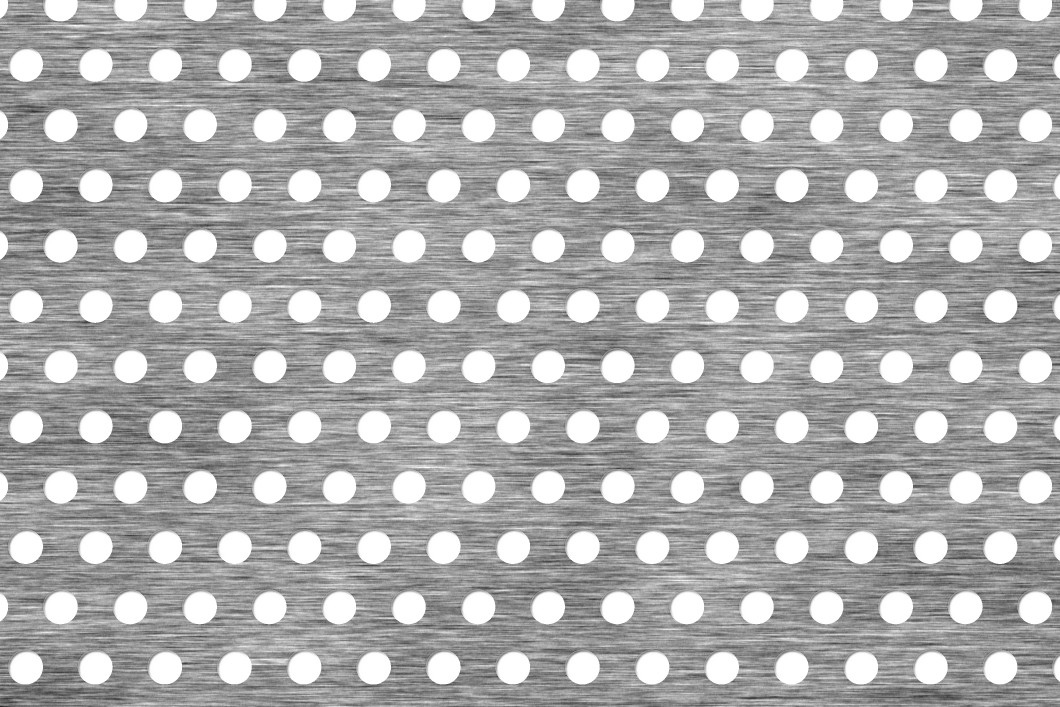

6mm hole mild steel perforated sheet

R6 T12 is a 6mm round hole perforated sheet in mild steel, with the holes on a 12mm staggered pitch giving 23% open area. We keep it in stock, in 6mm thickness.

In stock, next working day delivery
Product specificationThe measurements of R6 T12
Hole6mm round
Pitch12mm staggered 60°
Row spacing10.39mm
Bar between holes6mm
Open area23%
Holes per m²8,020
Thickness6mm
MaterialMild steel

Also written: R6T12 · 6mm R6 · 6mm hole 12mm pitch · 6mm round hole on 12mm staggered centres

Thicknesses and sheet sizesSelect a size to ask for a price
ThicknessMild steel, K052MSheet size (mm)Weightkg/m²
2500 x 1250
6.0mm✓ In stock36.4

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Order in three steps

Pick what you need and we’ll fill in the price request for you.

1

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

2

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

3

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

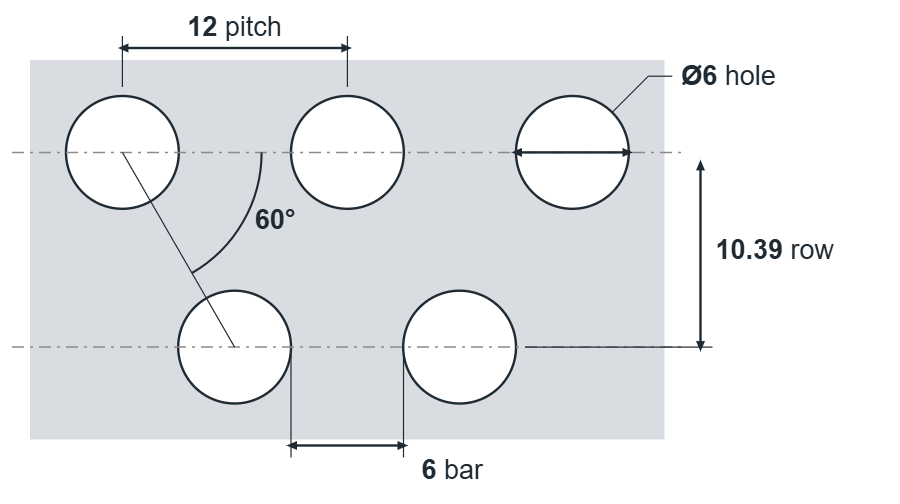

Hole layout

R6 T12 hole layout: 6mm round holes, 12mm staggered pitch, 6mm bar, 10.39mm row spacing

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and trays to your drawing.Ask for a price

About R6 T12

R6 T12 is a 6mm round hole perforated sheet in mild steel, with the holes on a 12mm staggered pitch giving 23% open area. We keep it in stock, in 6mm thickness.

In stock: 6mm in 2.5m x 1.25m sheets. Everything else in the table is made to order in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.

What does R6 T12 mean?

R6 is a 6mm round hole. T12 means the holes sit on a 12mm staggered (60°) pitch, measured centre to centre.

Not quite right? Compare similar patterns

Anything different from R6 T12 is marked. See every mild steel pattern, or work out a different pattern

PatternHolePitchOpen areaThicknessStock
R4 T84mm round8mm staggered23%1–2mm5 to 7 days
R5 T65mm round6mm staggered63%1mm✓ In stock
R5 T75mm round7mm staggered46%1–2mm✓ In stock
R5 T85mm round8mm staggered35%1–5mm✓ In stock
R6 T96mm round9mm staggered40%1–3mm✓ In stock
YOU’RE VIEWINGR6 T126mm round12mm staggered23%6mm✓ In stock
R8 T108mm round10mm staggered58%0.8–2mm5 to 7 days
R8 T118mm round11mm staggered48%1–2mm✓ In stock
R8 T128mm round12mm staggered40%1–6mm✓ In stock

Highlighted where it differs from R6 T12
