7mm Hole Mild Steel Perforated Sheet (R7 T11)
Description


R7 T11. 7mm round hole, 11mm staggered pitch.
Hole layout. Enlarged, not to scale. Dimensions in mm.

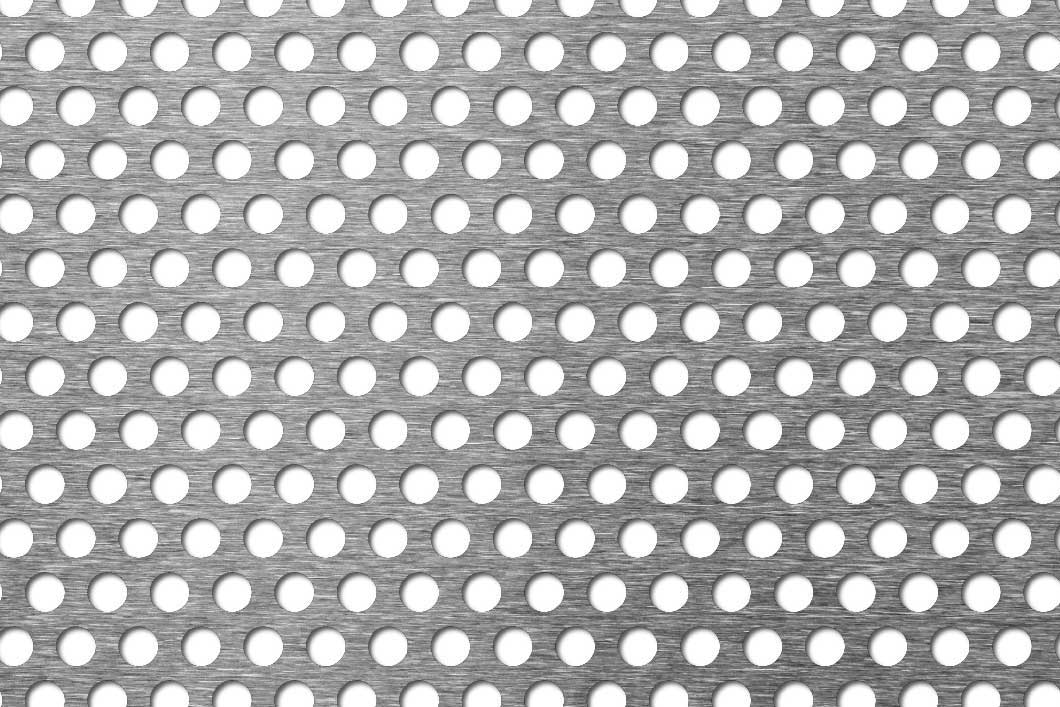

Perforated sheet, mild steel, r7 t11. Kenton code K054M
7mm hole mild steel perforated sheet
R7 T11 is a 7mm round hole perforated sheet in mild steel, with the holes on an 11mm staggered pitch giving 37% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1 to 3mm.
Also written: R7T11 · 7mm R7 · 7mm hole 11mm pitch · 7mm round hole on 11mm staggered centres
| ThicknessMild steel, K054M | Sheet size (mm) | Weightkg/m² | ||
|---|---|---|---|---|
| 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | ||
| 1.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 5.0 |
| 1.5mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 7.5 |
| 2.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 9.9 |
| 3.0mm | 5 to 7 days | 5 to 7 days | 5 to 7 days | 14.9 |
✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size
Order in three steps
Pick what you need and we’ll fill in the price request for you.
Choose the thickness
Pick the thickness you need. Sheets marked in stock go out next working day.
Choose the sheet size
Sizes in mm. Blank sizes aren’t made in this thickness.
How many?
You’re asking for
Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

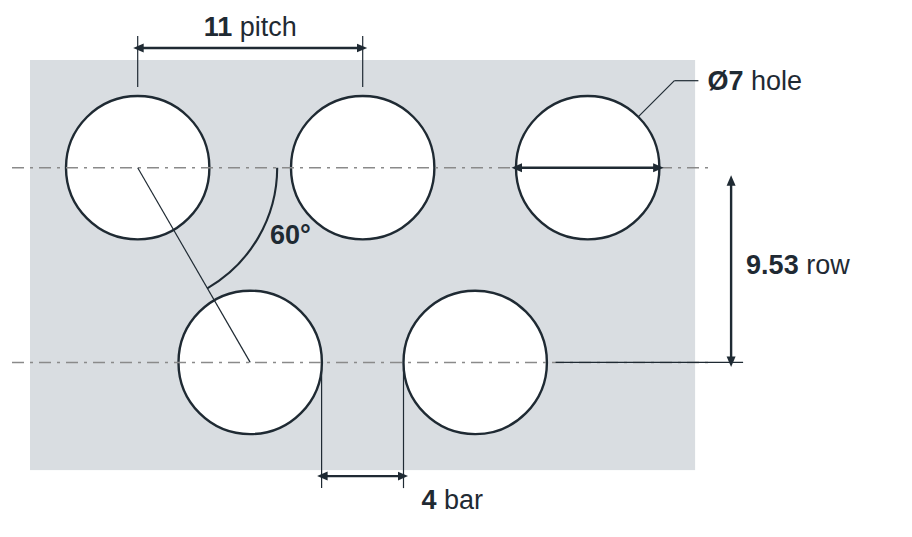

Hole layout

Enlarged, not to scale. Dimensions in mm.
About R7 T11
R7 T11 is a 7mm round hole perforated sheet in mild steel, with the holes on an 11mm staggered pitch giving 37% open area. It’s made to order in approximately 5 to 7 days, in thicknesses from 1 to 3mm.
All sizes in the table are made to order, in approximately 5 to 7 days. We’ll confirm the exact lead time when we price your order.
What does R7 T11 mean?
R7 is a 7mm round hole. T11 means the holes sit on an 11mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Not quite right? Compare similar patterns
Anything different from R7 T11 is marked. See every mild steel pattern, or work out a different pattern
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R6 T9 | 6mm round | 9mm staggered | 40% | 1–3mm | ✓ In stock |
| R6 T12 | 6mm round | 12mm staggered | 23% | 6mm | ✓ In stock |
| R7 T10 | 7mm round | 10mm staggered | 44% | 1–2mm | 5 to 7 days |
| YOU’RE VIEWINGR7 T11 | 7mm round | 11mm staggered | 37% | 1–3mm | 5 to 7 days |
| R8 T10 | 8mm round | 10mm staggered | 58% | 0.8–2mm | 5 to 7 days |
| R8 T11 | 8mm round | 11mm staggered | 48% | 1–2mm | ✓ In stock |
| R8 T12 | 8mm round | 12mm staggered | 40% | 1–6mm | ✓ In stock |
| R8 T16 | 8mm round | 16mm staggered | 23% | 1–6mm | 5 to 7 days |
Highlighted where it differs from R7 T11
