6mm Hole 304 Stainless Steel Perforated Sheet (R6 T8)
Perforated sheetStainless 304Kenton code K047S
Stock and sheet sizes
| Stainless 304K047S | 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | kg/m² |
|---|---|---|---|---|
| 1.0mm | ✓ In stock | 5-7 days | 5-7 days | 3.9 |
| 1.5mm | 5-7 days | 5.9 | ||
| 2.0mm | ✓ In stock | 7.8 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

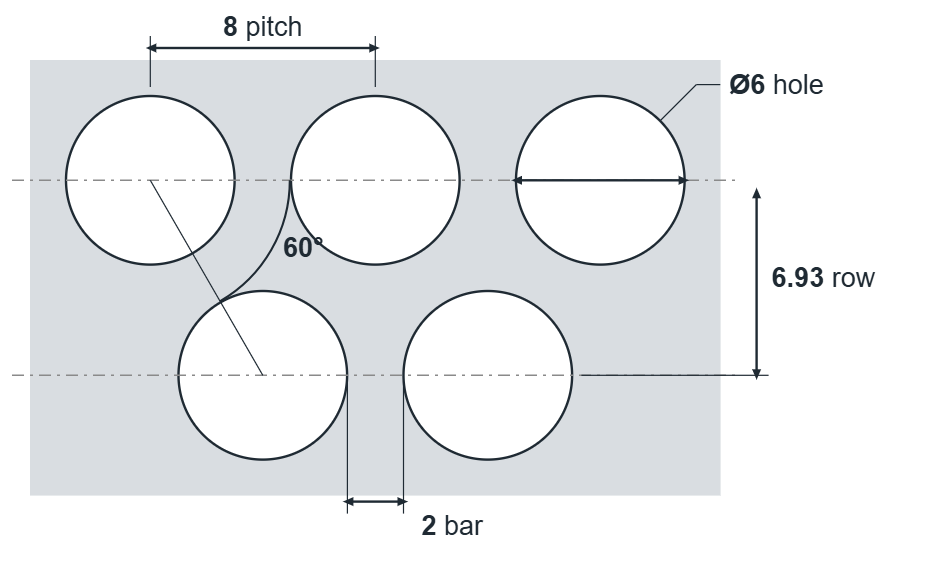

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 6mm round
- Pitch
- 8mm staggered 60°
- Row spacing
- 6.93mm
- Bar between holes
- 2mm
- Open area
- 51%
- Holes per m²
- 18,000
- Thickness
- 1–2mm
- Material
- Stainless 304
About R6 T8 304 stainless steel perforated sheet
R6 T8 is a 6mm round hole perforated sheet in 304 stainless steel, with the holes on an 8mm staggered pitch giving 51% open area. We keep it in stock here in Bristol, in thicknesses from 1 to 2mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
In stock: 1mm and 2mm in 2m x 1m sheets. Everything else in the table is made to order in 5-7 days.
What does R6 T8 mean?
R6 is a 6mm round hole. T8 means the holes sit on an 8mm staggered (60°) pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| R4 T6 | 4mm round | 6mm staggered | 40% | 1–2mm | ✓ In stock |
| R5 T7 | 5mm round | 7mm staggered | 46% | 1–2mm | ✓ In stock |
| R5 T8 | 5mm round | 8mm staggered | 35% | 1–3mm | ✓ In stock |
| R6 T8This page | 6mm round | 8mm staggered | 51% | 1–2mm | ✓ In stock |
| R6 T9 | 6mm round | 9mm staggered | 40% | 1–3mm | ✓ In stock |
| R8 T11 | 8mm round | 11mm staggered | 48% | 1–2mm | 5-7 days |
| R8 T12 | 8mm round | 12mm staggered | 40% | 1–3mm | ✓ In stock |
The nearest 304 stainless steel round hole patterns to R6 T8. See every 304 stainless steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
