14.2 x 4.8mm flattened expanded metal, mild steel

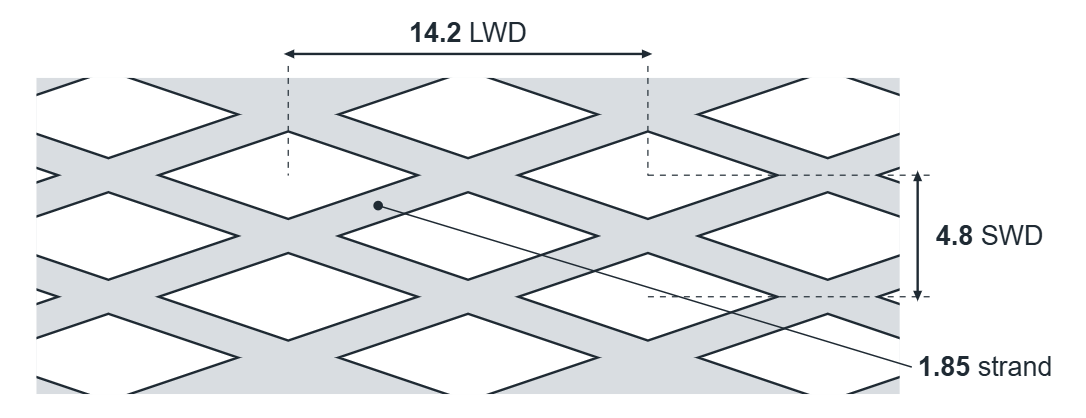

2210MF expanded metal diamond: 14.2mm LWD, 4.8mm SWD, 1.85mm strand

2210MF. 14.2 x 4.8mm diamond (LWD x SWD), 1.85mm strand.

Diamond pattern. Enlarged, not to scale. Dimensions in mm.

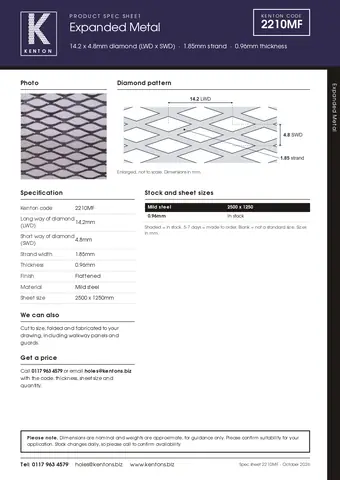

2210MF spec sheetOne A4 page with the specification, sizes and a drawing. Our code 2210MF for easy re-ordering.Download spec sheet PDF

Expanded metal, flattened, mild steel. Kenton code 2210MF

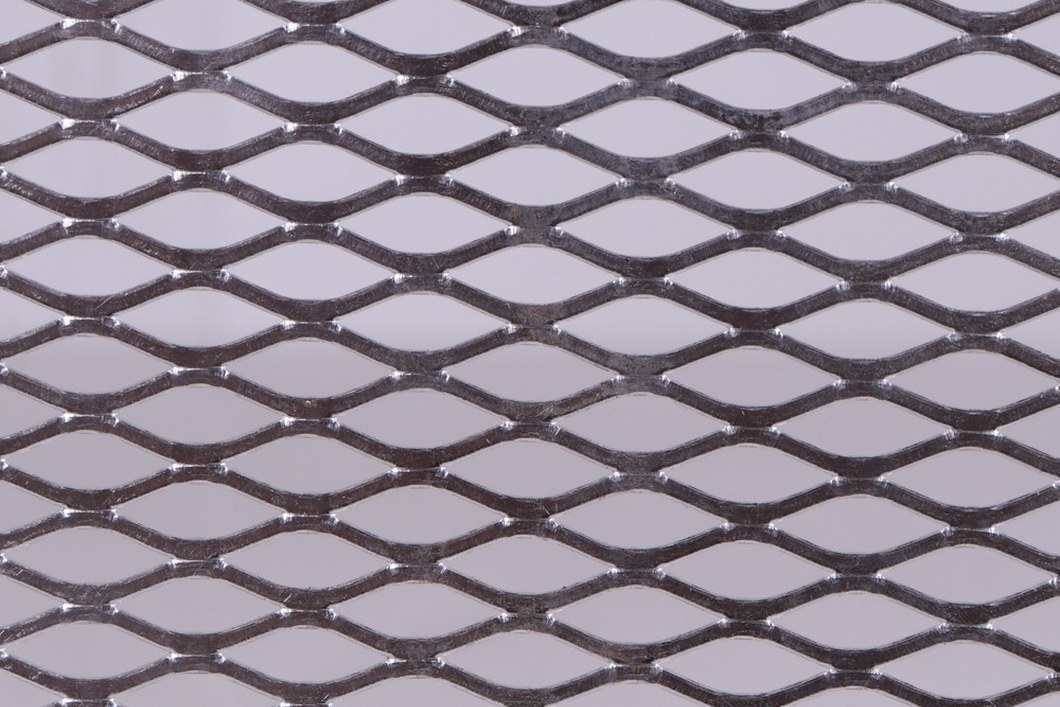

14.2 x 4.8mm flattened expanded metal, mild steel

2210MF is flattened expanded mild steel with a 14.2 x 4.8mm diamond and 1.85mm strands. We keep it in stock, 0.96mm thick, in 2500 x 1250mm sheets.

In stock, next working day delivery

Product specificationThe measurements of 2210MF

Long way of diamond (LWD)14.2mm

Short way of diamond (SWD)4.8mm

Strand width1.85mm

Thickness0.96mm

FinishFlattened

MaterialMild steel

Sheet size2500 x 1250mm

Thicknesses and sheet sizesSelect a size to ask for a price

ThicknessMild steel, 2210MF	Sheet size (mm)
ThicknessMild steel, 2210MF	2500 x 1250
0.96mm	✓ In stock

✓ In stock on the shelf, ready to send; 5 to 7 days made to order; blank = not a standard size

Get a price →Spec sheet PDF

Order in three steps

Pick what you need and we’ll fill in the price request for you.

Choose the thickness

Pick the thickness you need. Sheets marked in stock go out next working day.

Choose the sheet size

Sizes in mm. Blank sizes aren’t made in this thickness.

How many?

You’re asking for

Get a price →

Need it cut to size, folded or made to a drawing? Add the details on the form, or call 0117 963 4579.

Diamond pattern

Enlarged, not to scale. Dimensions in mm.

Need it cut, folded or made to a drawing?We guillotine sheets to size, and fold, roll and fabricate panels, guards and walkways to your drawing.Ask for a price

About 2210MF

2210MF is flattened expanded mild steel with a 14.2 x 4.8mm diamond and 1.85mm strands. We keep it in stock, 0.96mm thick, in 2500 x 1250mm sheets.

Flattened or raised?

Raised expanded metal is left as it comes off the expanding press, so the strands sit at an angle to the sheet. Flattened expanded metal is rolled after expanding, so the strands lie flat and the sheet has a smooth surface. 2210MF is flattened.

What do LWD and SWD mean?

LWD is the long way of the diamond and SWD is the short way, both measured centre to centre. The strand is the width of the metal between the openings.

Not quite right? Compare similar sizes

Anything different from 2210MF is marked. See every expanded mild steel sheet

Code	Diamond	Strand	Thickness	Material	Finish	Stock
1010MF	6.8 x 3.6mm	1.3mm	0.94mm	Mild steel	Flattened	✓ In stock
1010AF	6.9 x 3.6mm	1.27mm	0.89mm	Aluminium	Flattened	✓ In stock
8055G	8 x 6mm	1.25mm	0.7mm	Pre-galvanised	Flattened	✓ In stock
1610AF	14 x 4.8mm	1.8mm	0.89mm	Aluminium	Flattened	✓ In stock
YOU’RE VIEWING2210MF	14.2 x 4.8mm	1.85mm	0.96mm	Mild steel	Flattened	✓ In stock
3013MF	24.4 x 7.6mm	2.08mm	1.14mm	Mild steel	Flattened	✓ In stock
4216MF	32.8 x 10.9mm	3.18mm	1.5mm	Mild steel	Flattened	✓ In stock

Highlighted where it differs from 2210MF
