8mm Square Hole Mild Steel Perforated Sheet (C8 U24)
Perforated sheetMild steelKenton code K127M
Stock and sheet sizes
| Mild steelK127M | 2000 x 1000 | 2500 x 1250 | 3000 x 1500 | kg/m² |
|---|---|---|---|---|
| 1.0mm | 5-7 days | 5-7 days | 5-7 days | 7.0 |
| 1.5mm | 5-7 days | 5-7 days | 5-7 days | 10.5 |
| 2.0mm | 5-7 days | 5-7 days | 5-7 days | 14.0 |
| 3.0mm | 5-7 days | 5-7 days | 5-7 days | 20.9 |
✓ In stockon the shelf in Bristol5-7 daysmade to orderBlank = not a standard size · sizes in mm
- Cut to sizewhile you wait
- Next working daydelivery on stock sheets
- Folded & fabricatedto your drawing
Description
Technical details

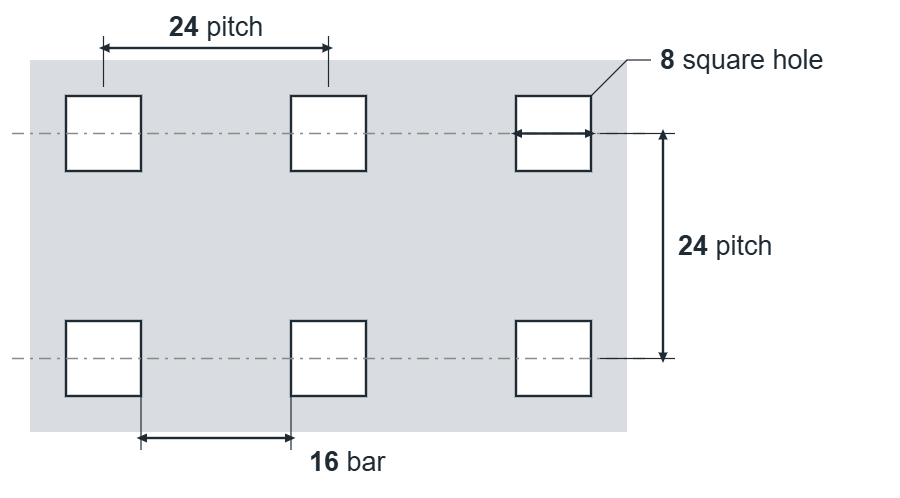

Hole layout
Enlarged, not to scale. Dimensions in mm, pitch measured centre to centre.
Specification
- Hole
- 8mm square
- Pitch
- 24mm in-line
- Bar between holes
- 16mm
- Open area
- 11%
- Holes per m²
- 1,740
- Thickness
- 1–3mm
- Material
- Mild steel
About C8 U24 mild steel perforated sheet
C8 U24 is an 8mm square hole perforated sheet in mild steel, with the holes on a 24mm in-line pitch giving 11% open area. It’s made to order, usually in 5-7 days, in thicknesses from 1 to 3mm. Every sheet can be cut to size while you wait, and stock sheets go out on next working day delivery anywhere in the UK.
All sizes in the table are made to order, usually in 5-7 days.
What does C8 U24 mean?
C8 is an 8mm square hole. U24 means the holes sit on a 24mm in-line pitch, measured centre to centre.
This pattern also comes in
Similar patterns
| Pattern | Hole | Pitch | Open area | Thickness | Stock |
|---|---|---|---|---|---|
| C8 U11 | 8mm square | 11mm in-line | 53% | 1–2mm | 5-7 days |
| C8 U12 | 8mm square | 12mm in-line | 44% | 1–3mm | ✓ In stock |
| C8 U16 | 8mm square | 16mm in-line | 25% | 1–3mm | 5-7 days |
| C8 U24This page | 8mm square | 24mm in-line | 11% | 1–3mm | 5-7 days |
| C9.2 U34 | 9.2mm square | 34mm in-line | 7% | 1–2mm | 5-7 days |
| C9.2 U37.98 | 9.2mm square | 37.98mm in-line | 6% | 1.5–2mm | 5-7 days |
| C10 U30 | 10mm square | 30mm in-line | 11% | 1–3mm | 5-7 days |
The nearest mild steel square hole patterns to C8 U24. See every mild steel pattern →
Dimensions are nominal and weights approximate. Stock changes daily, so please call to confirm.
